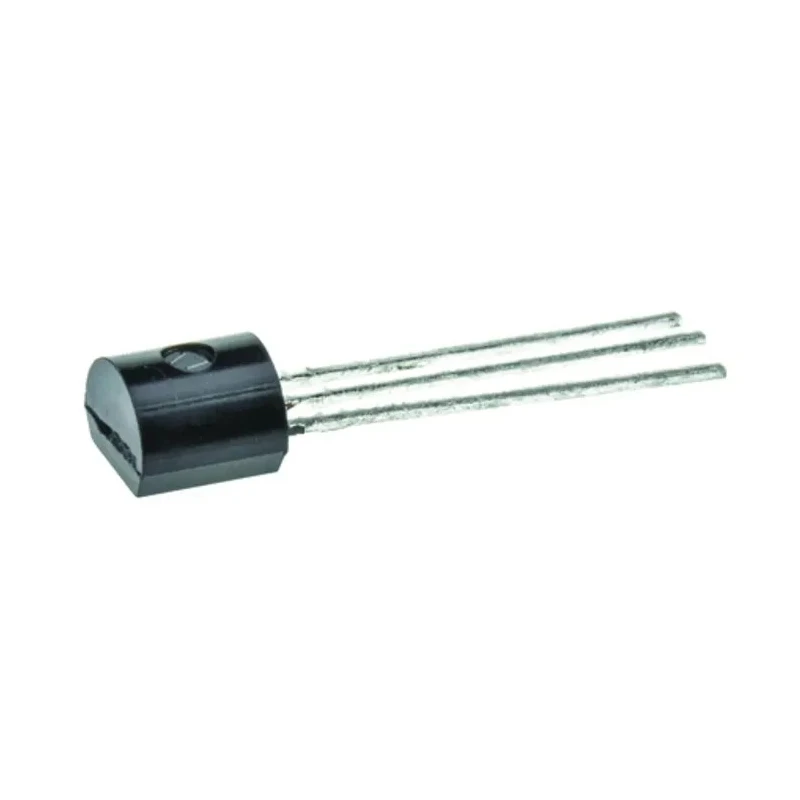

STMicroelectronics Sensitive Gate Thyristor SCR TO-92 Package 600 V 0.8 A 200 μA 25 A X0202MA 2BL2
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Model | X0202MA 2BL2 |
| Mount Type | Through Hole |
| Series | X02 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 0.8A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 25A |
| Maximum Gate Trigger Current Igt | 200μA |
| Maximum Holding Current Ih | 5mA |
| Maximum Gate Trigger Voltage Vgt | 0.8V |
| Repetitive Peak Off-State Current | 500μA |
Key Features
- Sensitive gate structure allows operation with limited gate triggering current.
- Packaged in TO-92 through-hole form factor for easy PCB mounting.
- Repetitive peak reverse voltage of 600 V ensures high voltage tolerance.
- Surge current rating of 25 A supports transient electrical conditions.
- Maximum gate trigger current of 200 μA suits low power gate drive circuits.
- Operating temperature range from -40°C to 125°C provides robustness in various environments.
- Maximum gate trigger voltage is 0.8 V to allow activation at low voltage level.
- Maximum holding current of 5 mA ensures reliable retention during conduction.
Product Description
STMicroelectronics X0202MA 2BL2 Sensitive Gate Thyristor SCR with a 600 V repetitive peak reverse voltage and 0.8 A rated average on-state current, housed in a TO-92 through-hole package. This device is optimized for power switching and control applications where gate triggering current availability is limited.
The sensitive gate design makes it ideal for use in ground fault circuit interrupters and residual current circuit breakers. The thyristor supports surge currents up to 25 A and has a maximum gate trigger current of 200 μA, suitable for low power gate drive requirements.
With a maximum operating temperature of 125°C and a minimum operating temperature of -40°C, it is built to endure a wide range of environmental conditions, making it suitable for industrial, electrical, and power management systems.
The device has a maximum gate trigger voltage of 0.8 V and a holding current of 5 mA, ensuring solid and reliable switching performance. Packaged in a compact TO-92 form factor with three pins, it allows through-hole mounting for easy integration.
STMicroelectronics offers a broad portfolio of thyristors, including this sensitive gate SCR, tailored for power switching tasks and specialized control applications. The X0202MA 2BL2 is manufactured in China adhering to quality standards for semiconductor discrete components.
Sensitive gate thyristor design for low gate current applications. TO-92 package supports through-hole mounting. 600 V peak repetitive reverse voltage tolerance. Surge current rating of 25 A for transient protection. Operating range from -40°C to 125°C for industrial applications.
Maximum gate trigger current of 200 μA for efficient triggering. Holding current of 5 mA ensures conduction stability. Compact three-pin configuration for standard circuits.
This thyristor is suitable for applications including industrial power control, electrical switchgear, HVAC systems, and ground fault detection. It offers reliable switching and control in commercial and industrial electronics setups.
Explore our wide selection of semiconductors and Thyristors at EnvMart for advanced power control solutions tailored to your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive peak reverse voltage of this thyristor is 600 V.
The rated average on-state current for this model is 0.8 A.
It has a surge current rating of 25 A, which supports transient electrical conditions.
The maximum gate trigger current for this thyristor is 200 μA, suitable for low power gate drive circuits.
The operating temperature range is from -40°C to 125°C, making it suitable for various environments.
The maximum gate trigger voltage is 0.8 V, allowing activation at low voltage levels.
It is packaged in a TO-92 through-hole form factor, which allows for easy PCB mounting.
This thyristor has a pin count of 3.
The maximum holding current for this model is 5 mA, ensuring reliable retention during conduction.
It is suitable for applications including industrial power control, electrical switchgear, HVAC systems, and ground fault detection.
This thyristor is manufactured in China, adhering to quality standards for semiconductor discrete components.
The X0202MA 2BL2 is a sensitive gate thyristor (SCR), optimized for power switching and control applications.
