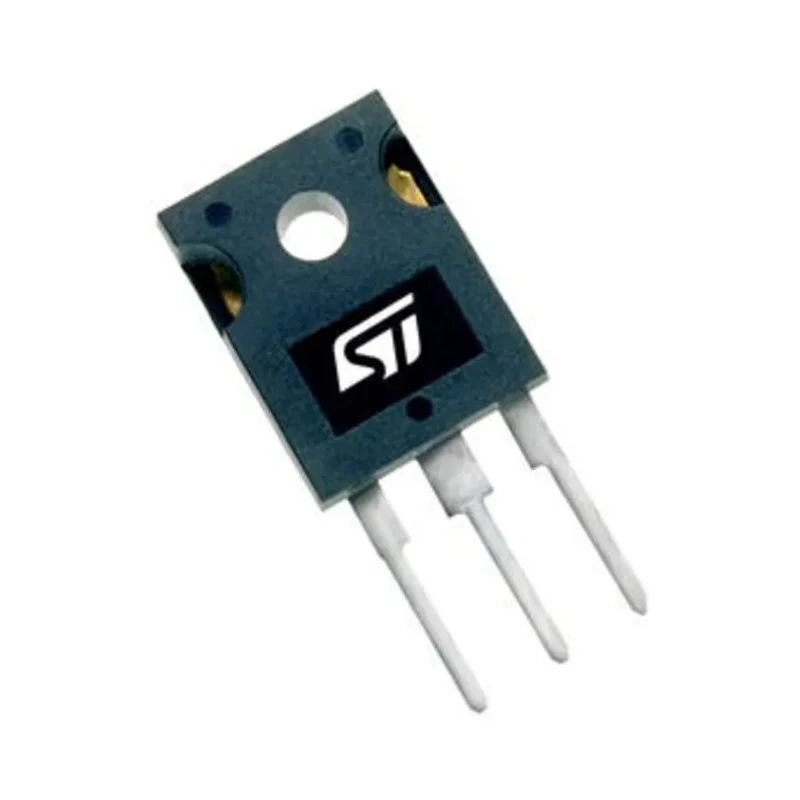

STMicroelectronics Silicon Controlled Rectifier 1200 V, 38 A, 50 mA Gate Trigger Current, TO-247 Package TN6050HP-12WY
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | TN6050HP-12WY |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Rated Average On-State Current Irms | 38A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 1200V |
| Surge Current Rating | 600A |
| Maximum Gate Trigger Current Igt | 50mA |
| Maximum Holding Current Ih | 100mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| High junction temperature | 150 °C |
| AC off state voltage | +/- 1200 V |
| Nominal on-state RMS current | 60 ARMS |
| High EFT noise immunity | 1000 V/μs |
Key Features
- The device has a maximum gate trigger current of 50 mA and a maximum holding current of 100 mA.
- It is housed in a TO-247 package suitable for power applications.
- The rectifier operates within a junction temperature range of -40°C to 150°C.
- It complies with automotive AEC-Q101 standards for reliable automotive use.
- The component features high EFT noise immunity rated at 1000 V/μs for robust performance.
- The surge current rating is 600 A, enabling it to withstand high transient currents.
- This SCR is designed primarily for automotive and stationary battery charger applications.
- The device supports a maximum gate trigger voltage of 1.3 V with AC off-state voltage tolerance of +/- 1200 V.
Product Description
STMicroelectronics TN6050HP-12WY is an automotive-grade silicon controlled rectifier (SCR) designed for high power applications including automotive and stationary battery chargers.
This SCR provides a repetitive peak reverse voltage of 1200 V and supports a rated average on-state current of 38 A, with a nominal on-state RMS current of 60 ARMS, making it suitable for demanding power control tasks.
It features a low maximum gate trigger current of 50 mA and a maximum holding current of 100 mA, ensuring efficient and stable switching performance.
The TO-247 package type offers robustness and effective heat dissipation, enabling reliable operation in harsh environments. The device operates within a temperature range from -40°C to 150°C with a high junction temperature rating of 150°C.
Compliant with automotive AEC-Q101 standards, the TN6050HP-12WY ensures high reliability and quality for automotive applications. It also features high EFT noise immunity rated at 1000 V/μs to protect against voltage transients and disturbances.
The surge current rating of 600 A allows this SCR to tolerate significant current surges without damage, enhancing durability and longevity in demanding operations.
The component's AC off state voltage tolerance of +/- 1200 V and a maximum gate trigger voltage of 1.3 V enable precise control in circuits requiring high voltage handling capability.
This SCR is ideally suited for industrial, automotive, manufacturing, power control, and battery charging applications requiring reliable and durable semiconductor switching elements.
The device has a maximum gate trigger current of 50 mA and a maximum holding current of 100 mA. It is housed in a TO-247 package suitable for power applications. The rectifier operates within a junction temperature range of -40°C to 150°C.
It complies with automotive AEC-Q101 standards for reliable automotive use. The component features high EFT noise immunity rated at 1000 V/μs for robust performance. The surge current rating is 600 A, enabling it to withstand high transient currents.
This SCR is designed primarily for automotive and stationary battery charger applications. The device supports a maximum gate trigger voltage of 1.3 V with AC off-state voltage tolerance of +/- 1200 V. Explore a wide range of semiconductor devices and electronic components on EnvMart for your industrial and automotive needs.
Explore more products in our Thyristors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 150°C.
It has a rated average on-state current of 38 A.
The surge current rating is 600 A, allowing it to withstand significant current surges.
This SCR is housed in a TO-247 package, suitable for power applications.
The maximum gate trigger current is 50 mA.
It has an AC off-state voltage tolerance of +/- 1200 V.
This model complies with the automotive AEC-Q101 standard.
The junction temperature range is from -40°C to 150°C.
The maximum holding current is 100 mA.
It features high EFT noise immunity rated at 1000 V/μs.
The nominal on-state RMS current is 60 ARMS.
It is designed primarily for automotive and stationary battery charger applications.
