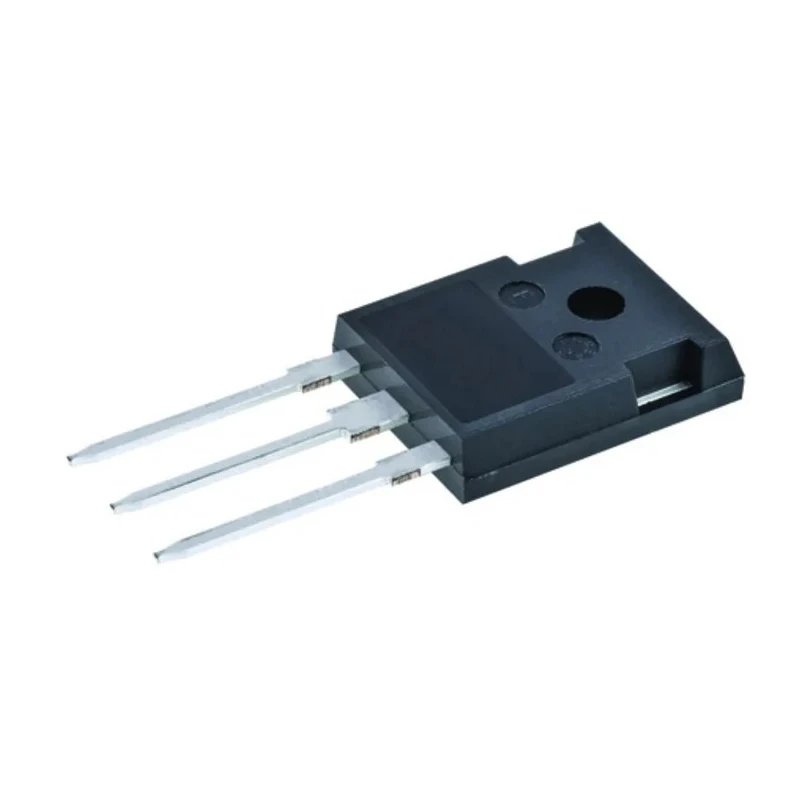

IXYS Thyristor SCR PLUS247 Package 1200 V 70 A 38 mA Gate Trigger Current CLA80E1200HF

The IXYS CLA80E1200HF is a Thyristor (Silicon Controlled Rectifier) designed with a PLUS247 through-hole package, rated for 1200 volts repetitive peak reverse voltage and 70 amps average on-state current. This SCR features a low gate trigger current of 38 mA and supports a surge current of up to 970 amperes, making it suitable for robust industrial control applications including motor drives, lighting control, heating control systems, and power inverters.

This device is constructed to operate efficiently in harsh environments, supporting a wide temperature range from -40°C to 125°C. The maximum gate trigger voltage is 1.5 V, with an on-state voltage drop of 1.87 V, ensuring minimal losses during conduction. Its secure PLUS247 package type supports stable through-hole mounting for PCB assemblies.

Compliant with IEC 60747, RoHS environmental standards, and UL 94V-0 flammability rating, the CLA80E1200HF guarantees reliability and safety in electrical and electronic applications requiring controlled power switching.

Typical applications encompass industrial automation, power switching, battery chargers, welders, plating equipment, regulated power supplies, and temperature or speed control circuits. Its high surge current capability permits handling transient overloads without device damage.

The thyristor is a bistable semiconductor element that commences conduction upon gate current trigger and maintains conduction while forward biased, ideal for phase control and switching applications.

This SCR device features a repetitive peak reverse voltage of 1200 volts. It offers a surge current rating of 970 amperes for transient load conditions. Constructed with a PLUS247 through-hole package type for secure mounting.

Maximum gate trigger voltage is 1.5 volts with a holding current of 100 mA. Operates reliably in temperature range from -40°C to 125°C. Meets IEC 60747, RoHS, and UL 94V-0 standards for safe and compliant usage. Designed for use in AC and DC motor control, lighting, heating control, and power inverter applications.

This device incorporates high efficiency with 1.87 V peak on-state voltage.
