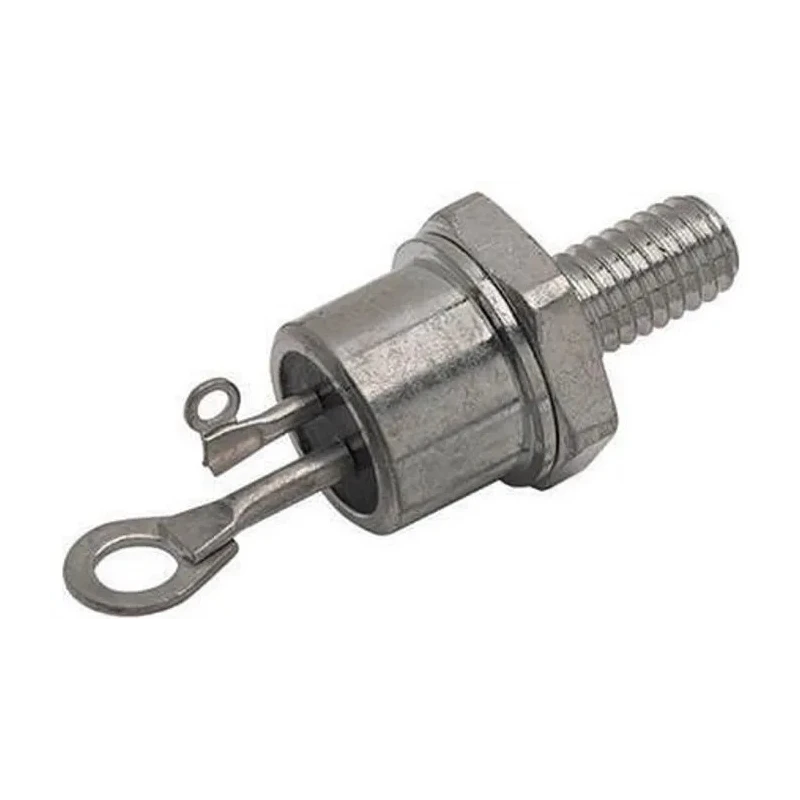

Semikron Danfoss Thyristor SCR 1200 V 22 A 100 mA 450 A 1.9 V SKT 24/12 E
Specifications
| Country of Origin | Brazil |
|---|---|
| Brand | Semikron Danfoss |
| Model | SKT 24/12 E |
| Mount Type | Screw |
| Maximum Operating Temperature | 130°C |
| Package Type | B-2 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 22A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 1200V |
| Surge Current Rating | 450A |
| Maximum Gate Trigger Current Igt | 100mA |
| Maximum Holding Current Ih | 150mA |
| Maximum Gate Trigger Voltage Vgt | 3V |
| Peak On-State Voltage | 1.9V |
| Repetitive Peak Off-State Current | 8mA |
| Semikron Danfoss SKT 24/16 E, Thyristor 1600 V, 22 A 100 μA 450 A 1.9 VBrand | Semikron Danfoss |
Key Features
- Rated average on-state current of 22 A ensures reliable conduction.
- Screw mount package type B-2 for secure fitting.
- Repetitive peak reverse voltage rating at 1200 V supports high voltage environments.
- Surge current rating of 450 A provides robust overload capability.
- Maximum gate trigger current of 100 mA facilitates precise control.
- Operating temperature range from -40°C to 130°C for wide environmental tolerance.
- Hermetic metal case with glass insulator offers superior protection.
- Threaded stud ISO M6 enables easy mechanical mounting.
Product Description
Semikron Danfoss SKT 24/12 E is a solid-state Thyristor (Silicon-Controlled Rectifier - SCR) featuring a rated average on-state current of 22 A and a repetitive peak reverse voltage of 1200 V. This device includes a surge current rating up to 450 A, making it suitable for demanding industrial power control applications.
The device comes housed in a B-2 screw mount package with a hermetic metal case and glass insulator, providing reliable mechanical integrity and electrical insulation. It supports secure mounting via a threaded stud compliant with ISO M6 standards.
This thyristor is equipped with a maximum gate trigger current of 100 mA, enabling precise triggering control, and a maximum holding current of 150 mA. Its operating temperature spans from a minimum of -40°C up to a maximum of 130°C, ensuring durability in harsh conditions.
Typical applications include usage in battery chargers, welders, plating equipment, regulated power supplies, and temperature or speed control circuits across industrial, manufacturing, and electrical sectors.
The encapsulated module features an electrically isolated base plate for safety and versatility in assembly. With a peak on-state voltage of 1.9 V and repetitive peak off-state current of 8 mA, it delivers efficient switching characteristics necessary for modern electronic systems.
Rated average on-state current of 22 A ensures reliable conduction. Screw mount package type B-2 for secure fitting. Repetitive peak reverse voltage rating of 1200 V for high voltage environments. Surge current rating up to 450 A for overload protection.
Operating temperature range from -40°C to 130°C. Hermetic metal case offers robust mechanical protection. Threaded stud ISO M6 for standard mounting solutions. Suitable for battery chargers, welders, power supplies, and control circuits.
This Semikron Danfoss thyristor is manufactured in Brazil and supplied in new condition. Explore more semiconductors like SKT 24/16 E thyristor for complementary applications in power electronics at EnvMart.
Explore more products in our Thyristors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current of this thyristor is 22 A, ensuring reliable conduction in various applications.
This model has a repetitive peak reverse voltage rating of 1200 V, making it suitable for high voltage environments.
The surge current rating of this thyristor is 450 A, providing robust overload capability during operation.
The operating temperature range for this model spans from -40°C to 130°C, allowing it to function in diverse environmental conditions.
It features a screw mount package type B-2, which allows for secure fitting and installation.
The maximum gate trigger current for this thyristor is 100 mA, facilitating precise control during operation.
This thyristor includes a threaded stud compliant with ISO M6 standards for easy mechanical mounting.
The peak on-state voltage of this model is 1.9 V, which contributes to its efficient switching characteristics.
Typical applications for this thyristor include battery chargers, welders, plating equipment, and regulated power supplies.
The maximum holding current for this device is 150 mA, which is essential for maintaining conduction once triggered.
It is housed in a hermetic metal case with a glass insulator, providing superior protection and electrical insulation.
This model is manufactured in Brazil, ensuring compliance with local manufacturing standards.
