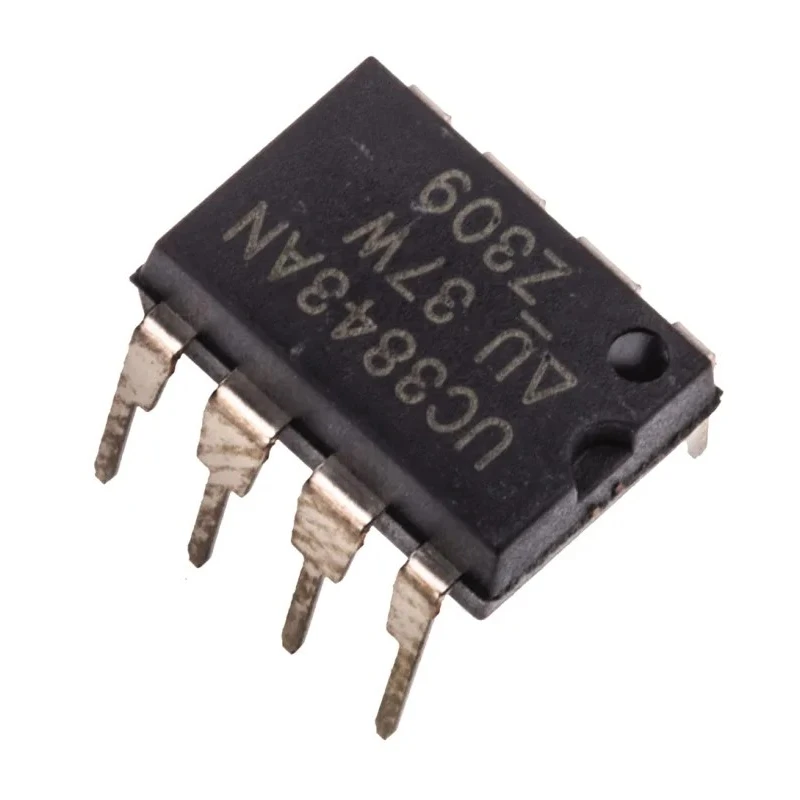

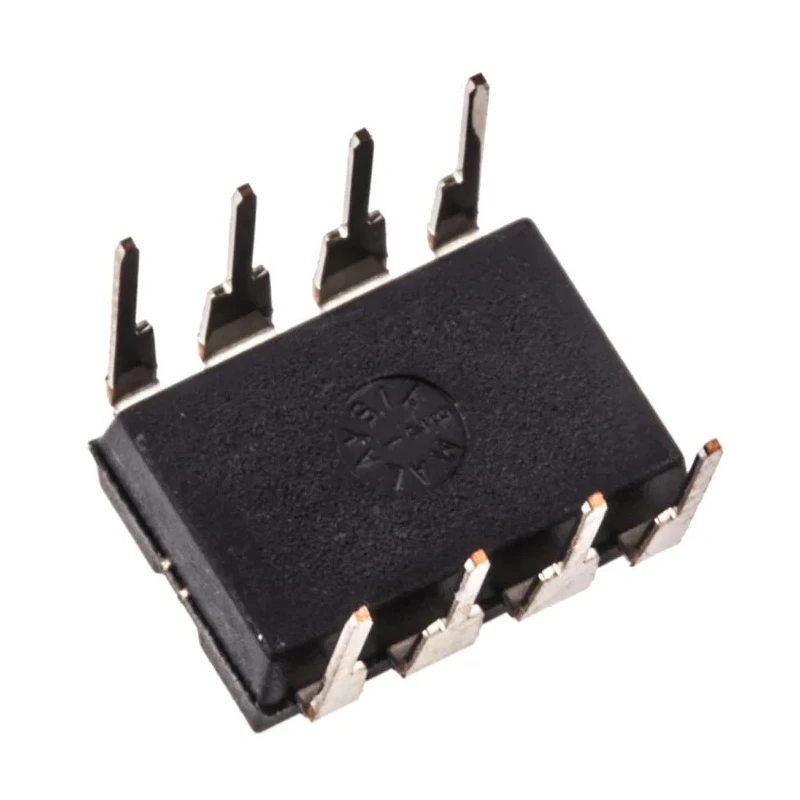

Texas Instruments 8-Pin PDIP PWM Controller 5-Channel, 500kHz, 125V, Current Mode, Through Hole UC3843AN

The Texas Instruments UC3843AN is a high-performance 5-channel PWM (Pulse Width Modulation) controller built for powering advanced switch-mode power supply designs and other industrial electronic circuits. With its robust 8-pin PDIP package and through-hole mounting, this controller is well suited for industrial, telecommunications, and consumer power management applications where reliability and ease of assembly are important.

Operating at switching frequencies of up to 500 kHz, the UC3843AN supports high-speed and efficient power conversion for a variety of topologies, including current-mode and voltage-mode configurations. The current mode control architecture enables quick response to load changes and helps in maintaining system stability under rapidly varying loads, which is critical in industrial and laboratory environments.

The part withstands a wide range of supply voltages, from -55V minimum to 125V maximum, allowing for design flexibility in demanding electrical systems. The output current of 1A makes it ideal for powering various loads directly or driving external power devices. With its peak power mode and primary-side regulation capability, the controller simplifies feedback loop designs and can eliminate the need for optocouplers, further enhancing reliability and reducing bill of material costs for OEMs and system integrators.

The UC3843AN’s robust operational window, from 0°C to 70°C, ensures stable functionality in most industrial temperature conditions. The 8-pin package is compact, measuring 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, making it efficient for dense PCB layouts in modern electronic assemblies.

This controller is commonly used in switching power supplies, industrial automation controls, laboratory instrumentation, HVAC systems, battery chargers, and other critical applications that demand robust and efficient power management. It is particularly suited for environments where high reliability, low power consumption, and precise performance are mandatory.

As part of Texas Instruments’ UC series, the UC3843AN leverages years of engineering know-how to deliver consistent and predictable operation in both design prototypes and high-volume manufacturing. Its straightforward through-hole packaging allows painless integration into test equipment and repair situations where socketing or replacement may be needed.
