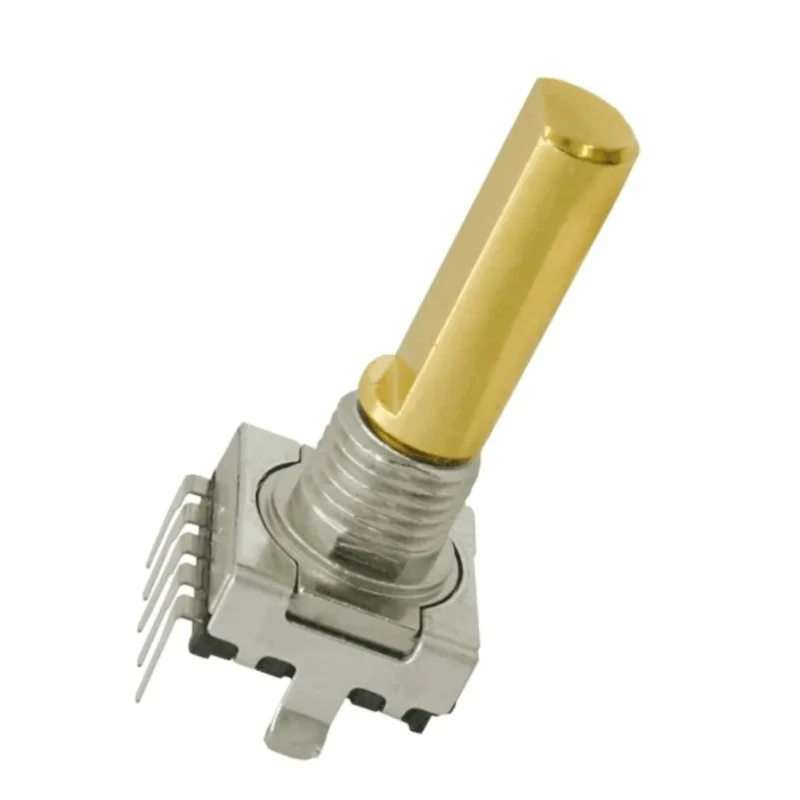

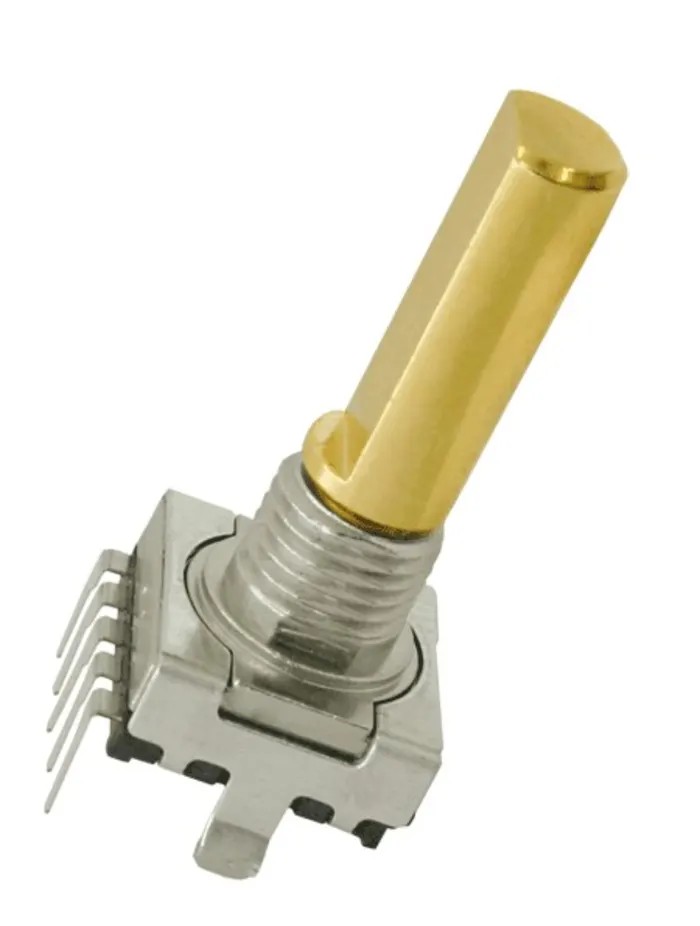

Elma Mechanical Rotary Encoder 8 ppr Pulse 2 Bit Quadrature Digital Square Wave 6 mm Slotted Shaft E33-VT622-M01T

Elma E33-VT622-M01T Mechanical Rotary Encoder is engineered to provide accurate rotational position measurements with a resolution of 8 pulses per revolution utilizing 2 Bit Quadrature encoding and digital square wave signals. This encoder features a 6 mm slotted shaft with a length of 16 mm, making it suitable for integration in precision industrial and electronic systems.

The encoder supports a maximum operating speed of 60 rpm with a current rating of 10 mA, delivering stable performance at low rotational speeds. It is terminated with a pin style termination to ensure secure electrical connectivity.

Constructed with a robust metal housing and metal shaft, the device offers excellent mechanical durability. Its environmental sealing to IP68 on both the shaft and front panel ensures reliable operation even in harsh environments, making it ideal for industrial machinery, manufacturing equipment, and automation systems.

Additional features include gold-plated contacts that enhance electrical reliability and a pushbutton function activated by a 6N push force. The rotational life of this encoder extends to up to 1,000,000 revolutions, promising long-term operational stability.

The encoder adheres to RoHS standards, supporting environmentally responsible manufacturing and usage. Equipped with a 6 mm slotted shaft for precise mechanical connection. Features a maximum operating speed of 60 rpm. Robust metal housing with metal shaft provides durability.

Gold-plated contacts for improved longevity and signal quality. Pushbutton functionality with 6N force activation. Environmentally sealed to IP68 rating on shaft and front panel. Operates reliably within a temperature range of -40 to +85 degrees Celsius.

RoHS compliant. Termination through pin connection style.

This Mechanical Rotary Encoder is suitable for use in industrial applications such as automation, HVAC systems, manufacturing equipment, laboratory instruments, and other precise rotary measurement needs. Its reliable construction and signal performance make it a dependable choice for engineers and technicians.

Explore other high-quality rotary encoders and sensors in EnvMart's Electronics & Electricals category for comprehensive industrial solutions.
