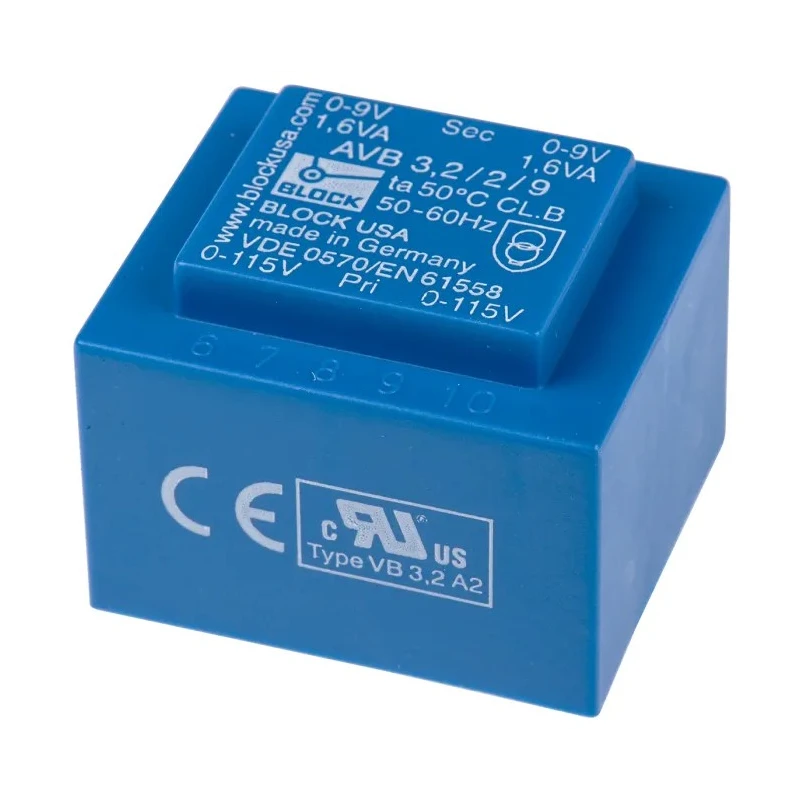

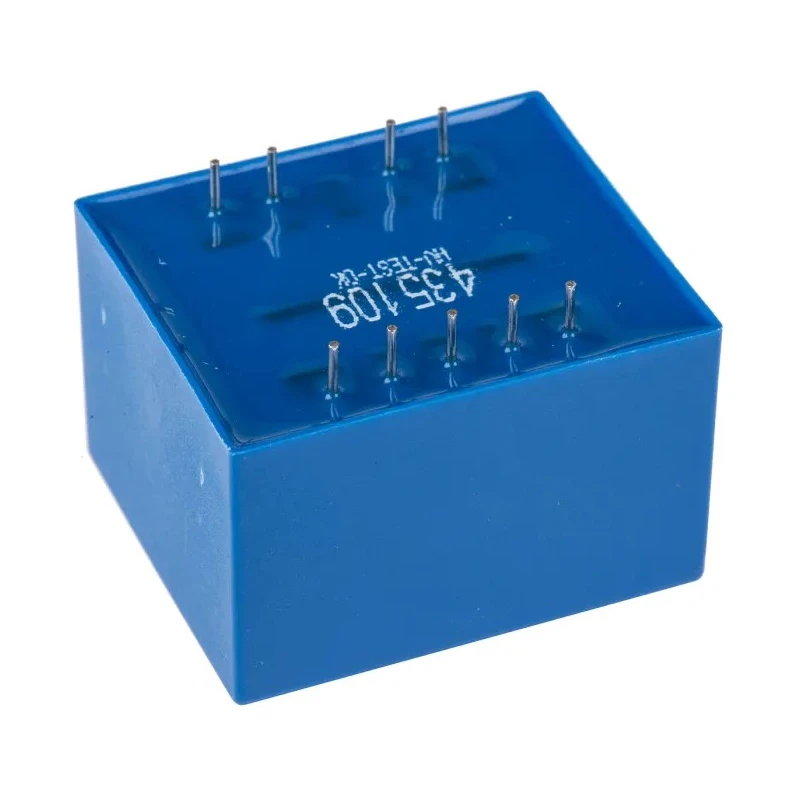

Block 9 V ac 2 Output Pin PCB Transformer, 3.2 VA, Pin Mount, ENEC 10 (VDE) Certified AVB3.2/2/9

Block AVB3.2/2/9 is a 9 V ac 2 Output Pin PCB Transformer with a 3.2 VA power rating, designed for efficient, low-temperature-rise operation in electronic circuits. It is ideally suited for industrial and laboratory applications requiring reliable step-down AC voltage on printed circuit boards.

The transformer supports dual primary voltages of 115 V ac and 230 V ac at 50 to 60 Hz frequency, making it versatile for various electrical standards and equipment. It features twin secondary windings to allow series or parallel connection options, enhancing design flexibility.

Constructed with vacuum epoxy resin moulding certified to UL94-V0 standards and double-section glass fibre reinforced polyamide bobbins, the unit offers robustness and electrical safety. Its inherent short-circuit-proof design ensures durability and protection under fault conditions. The transformer is 100% electrical and flash tested to guarantee performance and reliability.

Measuring 41 mm x 35 mm x 30.8 mm, it is optimized for PCB mounting with pin-type connectors. The isolation voltage rating of 5000 V and its compliance with ENEC 10 (VDE), DIN EN 61558-2-1, IEC 61558-2-6, C-UL-US, and related certifications demonstrate its adherence to international safety and quality standards.

The transformer’s efficiency of 58% supports energy-saving operations with minimal heat generation up to a maximum operating temperature of 50°C. Its weight of approximately 170 g facilitates easy handling and integration into compact electronic devices.

This product is manufactured in Germany, ensuring adherence to stringent quality control processes. It is commonly used in industrial, commercial, and laboratory environments where reliable and efficient PCB transformers are essential for power supply regulation.

This PCB transformer operates with primary voltages of 115 V ac and 230 V ac. It provides two output pins with a secondary voltage of 9 V ac. The unit is designed with vacuum epoxy resin moulding and glass fibre reinforced polyamide bobbins for durability.

It is short circuit proof and offers 5000 V isolation voltage for safe operation. The efficiency of the transformer is 58%, suitable for low temperature rise applications up to 50°C. Operating frequency ranges between 50 Hz and 60 Hz.

It holds certifications including ENEC 10 (VDE), DIN EN 61558-2-1, IEC 61558-2-6, and C-UL-US. Compact dimensions are 41 mm in length, 35 mm in width, and 30.8 mm in depth. Gross weight is approximately 170 grams, facilitating easy PCB integration.

Made in Germany ensuring quality manufacturing standards.

Explore more PCB Transformers like the Block AVB3.2/2/9 on EnvMart for diverse industrial and electronic applications. Benefit from certified quality components tailored for your circuitry needs.
