Wurth Elektronik Surface Mount PCB Transformer 5V DC 1 Output Push-Pull, CSA IEC6180051 JEDEC JS709B EN6681 760390014

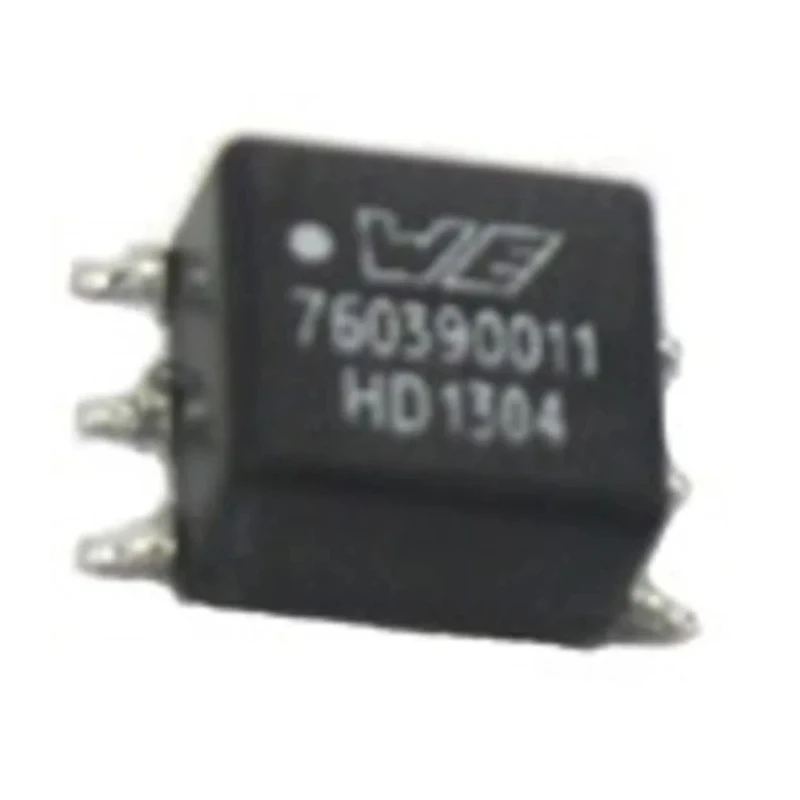

Wurth Elektronik 760390014 is a high-quality surface mount PCB transformer designed for applications requiring isolated interface power supplies. The transformer features a push-pull circuit configuration, offering reliable electrical isolation for industrial, automation, and instrumentation systems. It provides both primary and secondary voltages of 5 V DC, making it compatible with a wide range of electronic interface protocols, including CAN, RS-485, RS-422, RS-232, SPI, I2C, and lower-power LAN connections.

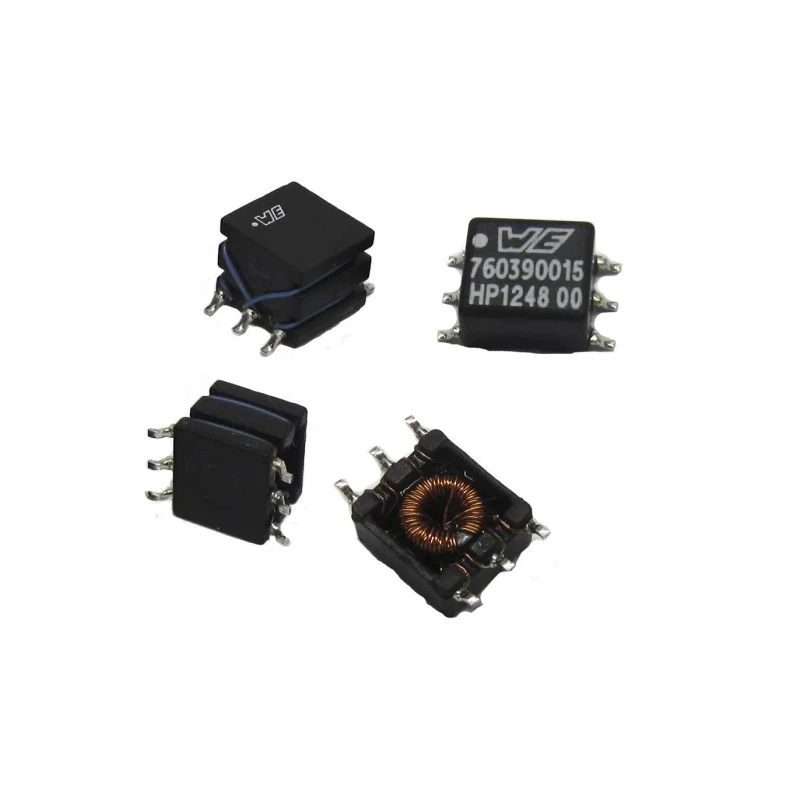

Compact and low profile, the transformer measures 7.14 mm in length, 4.19 mm in width, and 6.73 mm in depth, suiting space-constrained PCB layouts. Its surface mount technology and six-pin design ensure straightforward integration into modern circuit boards, increasing assembly efficiency and reliability.

The transformer delivers a current rating of 350 mA, making it a robust solution for powering analog and digital I/O modules, isolated gate driver power supplies, AC motor drives, PLCs, UPS systems, solar inverters, energy meters, and protection relays. Its operational temperatures range from -40°C to 125°C, enabling stable operation in harsh environmental conditions typical of industrial and process control settings.

Operational frequency is highly flexible, supporting a minimum of 300 kHz and a maximum of 620 kHz. The transformer is manufactured in accordance with prominent international standards, including CSA, IEC6180051, JEDEC JS709B, EN6681, UL6681CSA6681, cULus, RoHS, ASNZS668.1, J6681, IEC606641, IEC6681, and REACH, making it suitable for global usage and ensuring safety and environmental compliance.

Applications include isolated interface power supply for CAN, RS serial interfaces, PLC modules, isolated gate drivers, industrial automation, process control, medical equipment, motor drives, UPS, solar inverters, energy meters, and protection relays. Its functional, supplementary, or reinforced insulation class enhances reliability for critical electronic systems.

Engineers and designers can leverage its robust specifications for industrial, commercial, and laboratory circuit designs where small size, surface mount capability, and reliable electrical isolation are required.

Push-pull transformer for surface mount PCB integration with 5 V DC primary and secondary voltages. Supports a wide range of interfaces: CAN, RS-485, RS-422, RS-232, SPI, I2C, LAN. 350 mA current rating and high-frequency operation from 300 kHz to 620 kHz.

Small form factor: 7.14 mm x 4.19 mm x 6.73 mm, with 6 pins. Compliant to CSA, IEC, JEDEC, EN, UL, RoHS, and REACH international standards. Explore PCB Transformers and Wurth Elektronik products for reliable, standard-compliant solutions on EnvMart.
