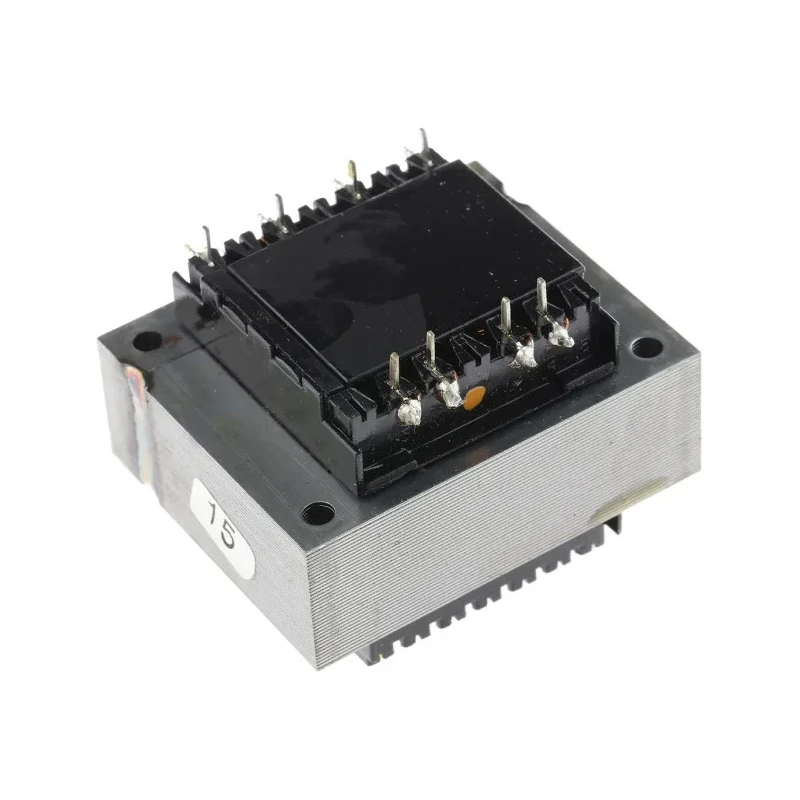

RS PRO PCB Transformer 24 V AC 2 Outputs Through Hole Mount, 12 VA, Model 504-432

Free Delivery in India | Lowest Global Shipping Charges

RS PRO PCB Transformer 24 V AC 2 Outputs Through Hole Mount, 12 VA, Model 504-432

Name: RS PRO PCB Transformer 24 V AC 2 Outputs Through Hole Mount, 12 VA, Model 504-432
Brand: RS PRO
SKU: 87852
Price: 41.57 USD
Availability: InStock



Category PCB Transformer Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Brand	RS PRO
Length	54mm
Model	504-432
Depth	30.41mm
Gross Weight	400g
Width	45mm
Mount Type	Through Hole
Maximum Operating Temperature	130°C
Number of outputs	2
Primary Voltage	2 x 115 V ac
Secondary Voltage	24 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Walsall Transformers 9V ac 2 Output Through Hole PCB Transformer, 12VABrand	Walsall Transformers
Bobbin Construction	Double section metric
Varnish Impregnation	Full

Key Features

Provides a stable 24 V AC output suitable for various PCB power requirements.
Designed with twin 115 V AC primary windings for series (230 V) or parallel (115 V) configuration.
Supports two secondary outputs to power multiple circuits or devices in parallel/series as needed.
Encapsulation offers enhanced safety, electrical isolation, and reliability for sensitive applications.
Delivers 12 VA rated power output with strong isolation (4 kVrms) between windings.
Robust open-frame laminated construction for durability and efficient heat dissipation.
Compliant with IECBSEN 615581, ASNZS 61558.1, CE, and RoHS for industrial and laboratory use.
Through hole mounting and compact size (54 x 45 x 30.41 mm) suit dense PCB arrangements.

Product Description

The RS PRO 504-432 PCB Transformer is a reliable, through hole mounted solution tailored for PCB-based power supply needs in diverse electronic applications. This transformer supplies a regulated 24 V AC output, making it ideal for powering control circuits, analog/digital modules, signaling devices, and a range of laboratory and industrial electronics.

This model is designed with twin 115 V AC primary windings that can be configured in series for 230 V operation or in parallel for 115 V mains, providing outstanding flexibility in installation and compatibility with international power standards. The transformer delivers up to 12 VA of total power output, suitable for moderate load requirements and ensuring consistent voltage performance across its two output channels.

Safety and reliability are at the core of the 504-432: it is built with a fully shrouded bobbin and robust open-frame laminated design, providing essential electrical isolation (4 kVrms) between primary and secondary windings as well as enhanced protection against environmental and electrical stress. The design and construction adhere to IECBSEN 615581, ASNZS 61558.1, CE, ASNZS 61558..6, and IECBSEN 615586, reinforcing its suitability for regulated, safety-conscious environments.

Its double-section metric bobbin construction and varnish impregnation process reduce noise, vibration, and risk of short circuit, while supporting thermal stability up to a maximum temperature of 130°C.

The 504-432's dual outputs allow for flexible configurations; outputs may be used independently or combined for different voltage/current requirements, serving demanding environments such as industrial automation, instrumentation, test benches, and custom PCB designs where regulated AC supply and robust isolation are mandatory.

In summary, the RS PRO 504-432 PCB Transformer is purpose-built to provide safe, consistent power conversion for industrial, laboratory, and automation electronics. Its technical approvals, compact size, high isolation, and dual output capabilities make it a preferred choice in professional PCB design and manufacturing.
