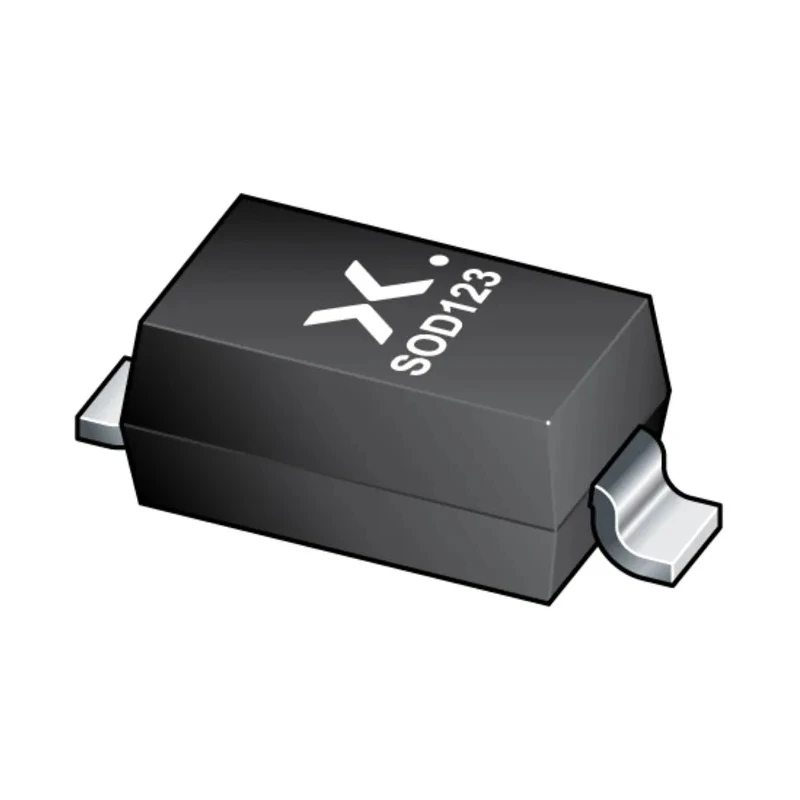

Nexperia Schottky Diode 30V 2.83A SOD-123 Surface Mount PMEG3020EGWX

Nexperia PMEG3020EGWX Schottky Diode is a medium power, low voltage-drop rectifier engineered for efficiency and reliability in demanding electronic assemblies. With a continuous forward current rating of 2.83 A and a reverse voltage withstand of up to 30 V, it is ideal for modern surface-mount PCB designs requiring robust performance in small spaces. Its SOD-123 package provides compact dimensions (2.8 mm length, 1.7 mm width, 1.3 mm height), making it a suitable choice for high-density layouts.

This diode utilizes a Schottky barrier rectifier design, delivering a typical low forward voltage and rapid switching capabilities. The PMEG3020EGWX incorporates an integrated guard ring for enhanced stress protection, supporting up to 9 A surge current for transient loads. Rated AEC-Q101 qualified, it delivers proven reliability for automotive electronics and industrial environments.

Applications range from DC-DC conversion and switch mode power supplies to reverse polarity and low power consumption circuits. Its single configuration, surface-mount orientation, and low reverse leakage current deliver efficient rectification and robust performance.

With a wide operating temperature capacity from -55°C to 150°C, this component is engineered to maintain stable operation under variable thermal and electrical stress conditions. The combination of compact packaging and advanced rectifying technology ensures efficiency, extended battery life, and safety in both automotive and general-purpose electronics.

Key features include high performance in small packages, low forward voltage drop, high efficiency for DC-DC conversion, rapid switching, and robust surge protection. Its compliance with automotive standards widens use scenarios to vehicle electronic control units (ECUs) and industrial power modules.

Low forward voltage drop reduces energy losses and heat generation. Single configuration supports direct integration in circuit designs. Surface-mount SOD-123 package for automated assembly compatibility. Automotive-standard qualification expands suitability to mission-critical electronics.

Integrated guard ring protects against electrical stress and surges. Supports up to 2.83 A continuous and 9 A surge forward current. Wide temperature range enhances tolerance to harsh environments. Ideal for DC-DC, SMPS, reverse polarity, and battery life applications.
