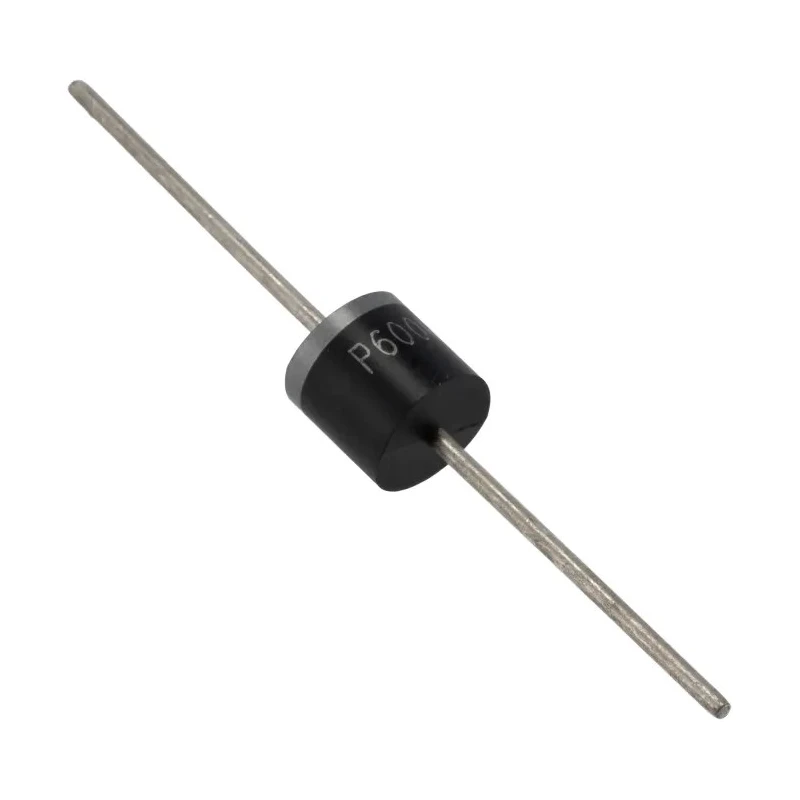

Vishay 400V 6A Plastic Rectifier Diode, Through Hole, 2-Pin P600, Low Forward Voltage Drop, P600G-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 9.1mm |
| Brand | Vishay |
| Height | 9.1mm |
| Length | 9.1mm |
| Model | P600G-E3/54 |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | P600G |
| Maximum Operating Temperature | 150°C |
| Case | P600, void-free molded epoxy body |
| Package Type | P600 |
| Minimum Operating Temperature | -55°C |
| Polarity | Color band denotes cathode end |
| Terminals | Matte tin plated leads, solderable per |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 6A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | Plastic |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Maximum Forward Voltage Vf | 1.4V |
| Peak Reverse Recovery Time trr | 2.5μs |
Key Features
- Delivers up to 6A continuous forward current for general purpose rectification.
- Peak reverse repetitive voltage rating of 400V ensures robust performance in demanding circuits.
- Constructed with a P600 plastic molded epoxy case for enhanced durability.
- Two-pin configuration allows straightforward through-hole PCB assembly.
- Low forward voltage drop reduces power loss during standard operation.
- Maximum forward surge capability up to 400A enhances protection against current spikes.
- Wide operating temperature range from -55°C to 150°C for industrial settings.
- Single diode configuration supports various power supply and inverter applications.
Product Description
The Vishay P600G-E3/54 is a high-performance general purpose plastic rectifier diode designed to handle up to 400V peak reverse repetitive voltage and 6A continuous forward current. It is housed in a durable P600 epoxy-molded plastic case for reliability and is equipped with matte tin plated leads for secure soldering during assembly. The two-pin, through-hole configuration ensures easy integration into a variety of printed circuit board designs, commonly used in power supplies, inverters, converters, and freewheeling diode applications.
This diode features a very low forward voltage drop, minimizing power dissipation and contributing to efficient performance. With a peak forward surge current rating up to 400A and a reverse recovery time of just 2.5 microseconds, this component is well-suited for high-current and fast switching operations.
Operating reliably at ambient temperatures from -55°C up to 150°C, the P600G-E3/54 supports wide-ranging industrial uses, from AC-DC rectification to freewheeling diodes in motor control and converter modules. The product's single diode configuration and 9.1mm body dimensions ensure compatibility with standard power electronics assemblies.
The clear color band denotes cathode polarity, supporting fast, accurate installation. It is manufactured using RoHS-compliant materials for industrial-grade quality and comes with a high forward surge capability for enhanced device security. This rectifier diode can withstand high momentary current surges, limiting risk in power supply protection scenarios.
Applications for the Vishay P600G-E3/54 include industrial and consumer power adaptation, inverter circuits, renewable energy systems, and any use case requiring robust, high-current rectification with thermal stability.
For additional options in the Vishay P600 series, various voltage ranges from 50V up to 1000V are available to suit specific end-use voltage requirements. Explore more high-reliability rectifier diodes and Vishay semiconductor components in relevant industrial and electronics segments via EnvMart's curated platform.
Explore more products in our Schottky Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay P600G-E3/54 is 6A.
This model has a peak reverse repetitive voltage rating of 400V.
The operating temperature range for the P600G-E3/54 is from -55°C to 150°C.
The maximum forward voltage drop for this diode is 1.4V.
It has a peak forward surge current capability of up to 400A.
The P600G-E3/54 supports through-hole mounting.
This model features a single diode configuration.
The dimensions of the P600G-E3/54 are 9.1mm x 9.1mm x 9.1mm.
The reverse recovery time for this model is 2.5 microseconds.
It is constructed with a void-free molded epoxy body and features matte tin plated leads.
This diode is suitable for applications such as power supplies, inverters, and freewheeling diodes in motor control and converter modules.
Yes, the P600G-E3/54 is manufactured using RoHS-compliant materials.
