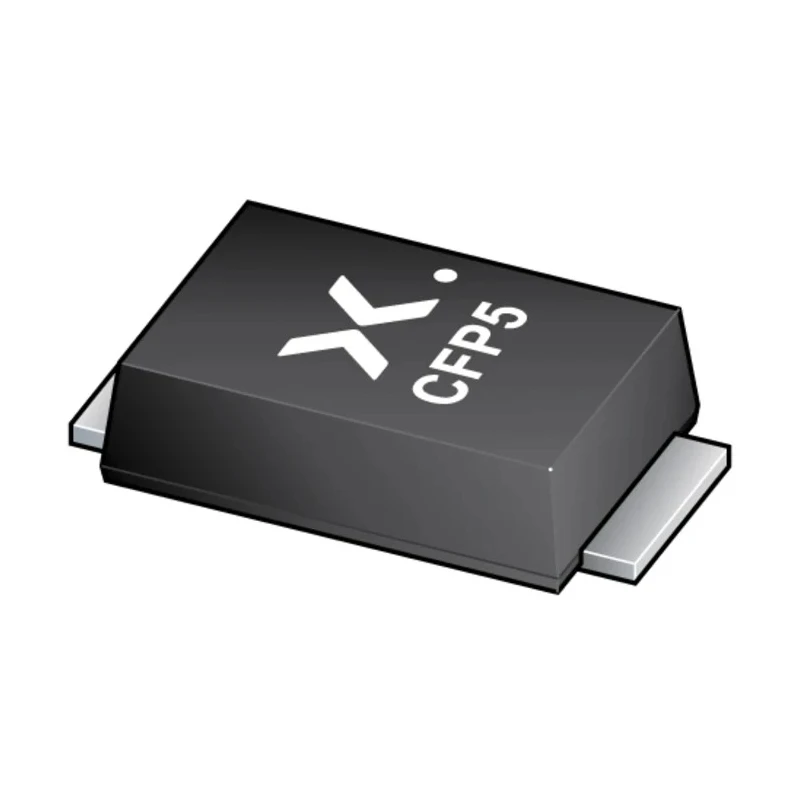

Nexperia Schottky Diode 40 V 1 A SOD-128 Surface Mount, PMEG4010ETP,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 4mm |
| Model | PMEG4010ETP,115 |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | PMEG4010ETP |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 6mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 490mV |
| Average forward current | IF(AV) ≤ 1 A |
| Reverse voltage | VR ≤ 40 V |
Key Features
- Single Schottky diode for medium power, low forward voltage drop operation.
- Supports up to 40 V peak reverse voltage and 1 A continuous forward current.
- Surface-mount (SMD) SOD-128 package with compact dimensions of 4 mm x 2.7 mm x 1.1 mm.
- High thermal stability and maximum operating junction temperature of 175°C.
- Automotive qualified to AEC-Q101 standard for robust reliability.
- Features low forward voltage drop and a peak surge current of 50 A.
- Integrated guard ring ensures stress protection and high efficiency performance.
Product Description
The Nexperia PMEG4010ETP,115 Schottky Diode is an advanced rectifier designed for efficiency-focused and compact power applications. Combining reliability with performance, this device supports a reverse voltage up to 40 V and a continuous forward current of 1 A, making it suitable for medium power supply circuits, switching regulators, and various secondary rectification roles in industrial, automotive, and commercial electronics.
This diode utilizes Schottky barrier technology with a planar MEGA (Maximum Efficiency General Application) rectifier construction. The SOD-128 surface-mount package measures only 4 mm × 2.7 mm × 1.1 mm, allowing for high-density board layouts where space constraints are critical. The integrated guard ring structure enhances stress protection, providing additional robustness for demanding designs.
With a low forward voltage drop (maximum 490 mV at rated current) and exceptional switching characteristics, the PMEG4010ETP,115 minimizes conduction losses and heat buildup, supporting efficient power conversion. It is capable of handling surge currents up to 50 A, and maintains high stability and performance across a wide junction temperature range, operating up to 175°C for extended device life and reliability.
This component is qualified to AEC-Q101 standards, making it ideal for automotive and transportation power systems. Its low reverse leakage (maximum 6 mA) and rapid switching are particularly useful in DC - DC converters, polarity protection, LED lighting, and energy-sensitive industrial electronics. The diode's compact package and high efficiency enable designers to optimize board space and thermal profiles without sacrificing performance.
Key specifications include single diode configuration, SOD-128 surface-mount package, 2-pin design, and robust surge immunity. The PMEG4010ETP,115 is well-suited for applications where efficiency, size, and reliability are essential. It can be directly soldered onto PCBs, benefiting both automated and manual assembly processes in manufacturing environments.
This Schottky diode is commonly used in power management for consumer electronics, industrial controls, lighting drivers, automotive power supplies, and other circuits that demand fast, efficient switching with minimal losses. Its combination of high current handling, temperature resilience, and proven Nexperia quality ensures dependable operation in diverse use cases.
Browse other Schottky Diodes and semiconductor components from Nexperia to find the right solution for your next design on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse voltage that this Schottky diode can handle is 40 V.
This model has a continuous forward current rating of 1 A.
The SOD-128 package measures 4 mm in length, 2.7 mm in width, and 1.1 mm in height.
The maximum operating junction temperature for this diode is 175°C.
This diode is qualified to the AEC-Q101 automotive standard.
The diode can handle a peak non-repetitive forward surge current of 50 A.
The maximum forward voltage drop at rated current is 490 mV.
The maximum reverse leakage current for this diode is 6 mA.
This model has a 2-pin design.
This diode is a Schottky rectifier.
The diode uses a surface-mount (SMD) mounting type.
The country of origin for this diode is India.
