Nexperia Schottky Diode SOD-128, 100 V, 2.83 A, Surface Mount, Single, PMEG10020AELPX

Free Delivery in India | Lowest Global Shipping Charges

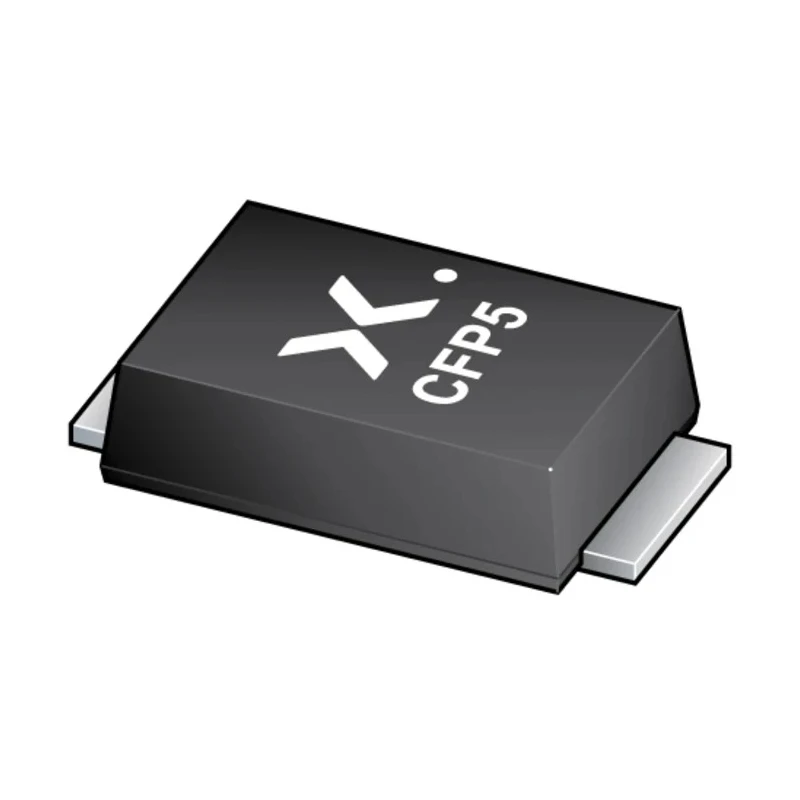

Nexperia Schottky Diode SOD-128, 100 V, 2.83 A, Surface Mount, Single, PMEG10020AELPX

Name: Nexperia Schottky Diode SOD-128, 100 V, 2.83 A, Surface Mount, Single, PMEG10020AELPX
Brand: Nexperia
SKU: 80898
Price: 0.19 USD
Availability: InStock



Category Schottky Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.1mm
Length	4mm
Model	PMEG10020AELPX
Width	2.7mm
Mount Type	Surface
Series	PMEG10020AELP
Maximum Operating Temperature	175°C
Package Type	SOD-128
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	2.83A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	1mA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	770mV
Peak Reverse Recovery Time trr	5ns
Average forward current	IF(AV) ≤ 2 A
Reverse voltage	VR ≤ 100 V

Key Features

Surface-mount Schottky barrier diode in SOD-128 package.
Rated for 100 V peak reverse repetitive voltage.
Continuous forward current up to 2.83 A.
Low forward voltage drop for battery life extension and efficiency applications.
Ultra-low leakage current, AEC-Q101 automotive qualified.
Fast recovery time of 5 ns enhances circuit speed.
Planar MEGA technology for maximum efficiency and high temperature tolerance up to 175°C.

Product Description

Nexperia PMEG10020AELPX is a medium-power, low forward-voltage Schottky barrier rectifier specifically designed for high-efficiency battery-powered and power conversion applications. This single diode, encapsulated in a SOD-128 surface-mounted package, provides rapid switching performance, low leakage, and reliable circuit protection for a range of industrial and automotive uses.

Featuring a peak reverse repetitive voltage rating of 100 V and a continuous forward current capacity of 2.83 A, the PMEG10020AELPX is ideal for high-frequency rectification, freewheeling, or protection functions in switching power supplies, DC-DC converters, and other demanding electronic circuits. Its planar MEGA technology ensures minimal forward voltage drop, reducing heat generation and maximizing energy efficiency.

This device benefits from clip-bonding construction, helping it withstand surge currents up to 50 A and operation temperatures up to 175°C. Extremely low leakage current and a rapid reverse recovery time of only 5 ns are critical for minimizing power loss and boosting system responsiveness.

Its compact SOD-128 form factor (4 mm × 2.7 mm × 1.1 mm) conserves PCB space, lending itself to compact, densely populated boards. The PMEG10020AELPX is AEC-Q101 qualified for automotive reliability, suitable for battery management, voltage regulation, mobile device protection, and general industrial use.

Recommended for use in industrial, automotive, power supply, DC-DC conversion, and high-speed digital logic applications. Surface-mount Schottky barrier diode in SOD-128 package. Rated for 100 V peak reverse repetitive voltage.

Continuous forward current up to 2.83 A. Low forward voltage drop for battery life extension and efficiency applications. Ultra-low leakage current, AEC-Q101 automotive qualified. Fast recovery time of 5 ns enhances circuit speed.

Small form factor: 4 mm length, 2.7 mm width, 1.1 mm height. Planar MEGA technology for maximum efficiency and high temperature tolerance up to 175°C. Browse more Schottky Diodes and rectifiers or explore Nexperia discrete semiconductor solutions on EnvMart.
