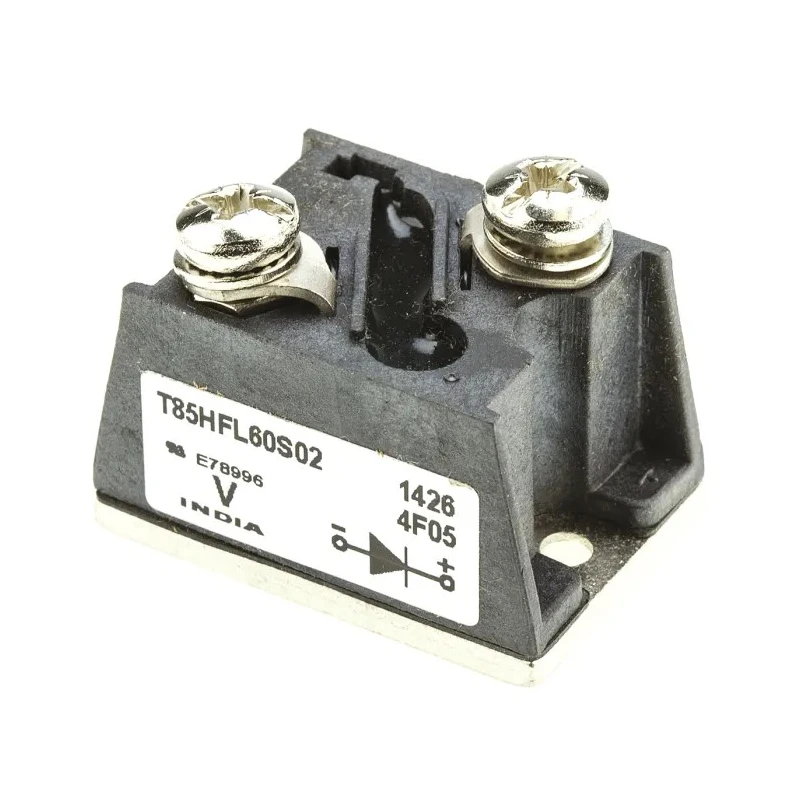

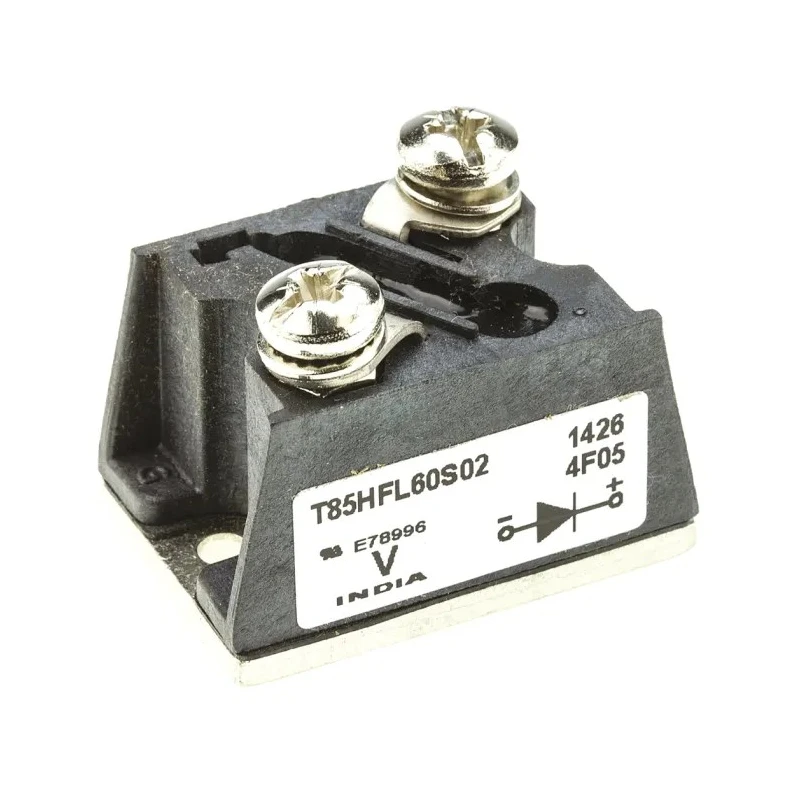

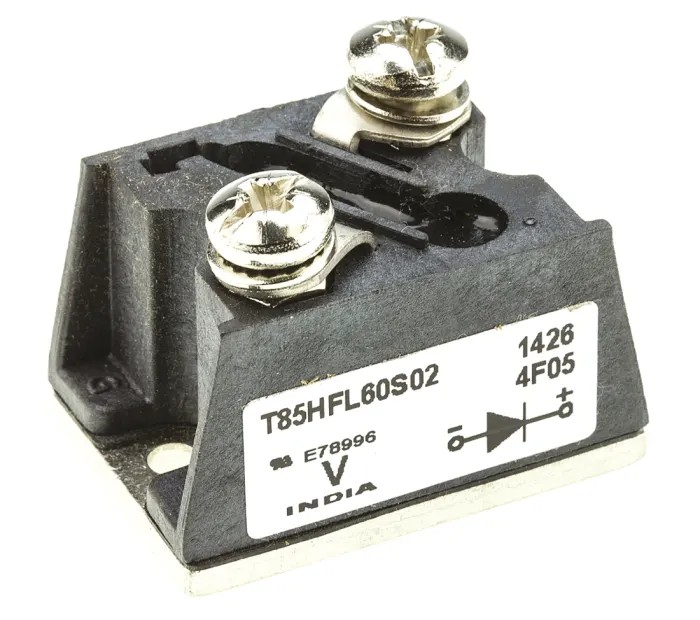

Vishay Fast Recovery Switching Diode 600V 85A Panel Mount T-Module VS-T85HFL60S02

The Vishay VS-T85HFL60S02 is a fast recovery switching diode tailored for demanding industrial applications where high-current rectification and rapid switching are essential. This diode offers a peak reverse repetitive voltage of 600 V and handles a continuous forward current of 85 A, meeting the requirements of power electronics, inverter assemblies, DC choppers, and electronic welders. Mounted in a T-module package, it provides panel installation convenience and electrical isolation from the base plate, allowing common heatsink use and compact circuit assemblies.

The device's single diode configuration ensures straightforward integration in freewheel diode circuits, AC/DC motor controls, and inductive heating applications. Its recovery time of just 200 ns contributes to high-frequency switching efficiency, minimizing losses and enhancing operational speed.

The construction features an electrically isolated base plate, rated for 3500 VRMS isolating voltage, simplifying mechanical designs and enabling rapid assembly. With a robust peak non-repetitive forward surge current of up to 1.4 kA, the VS-T85HFL60S02 excels at handling transient events in dynamic power systems.

The standard JEDEC package ensures reliable footprint compatibility, while large creepage distances and UL approval support industrial compliance and safety requirements. Operating over a wide temperature range of -40°C to 125°C, it maintains stable performance under challenging conditions.

Key industrial sectors utilizing this diode include inverter drives, DC choppers, motor control panels, electronic welders, and power switching apparatus for manufacturing, automation, and laboratory environments.

Suitable for industrial applications requiring fast recovery times and high current handling. 600 V peak reverse repetitive voltage and 85 A continuous forward current ensure robust power capacity. Panel mount T-module configuration offers secure mechanical installation and electrical isolation from base.

Single diode configuration simplifies circuit integration. Fast recovery time of 200 ns enhances performance in inverter, motor control, and power switching systems. Electrically isolated base plate supports compact heatsink assemblies and simplified design.

Surge tolerance with 1.4 kA peak non-repetitive forward surge current and 3500 VRMS isolating voltage. Operates reliably within a temperature range from -40°C to 125°C.
