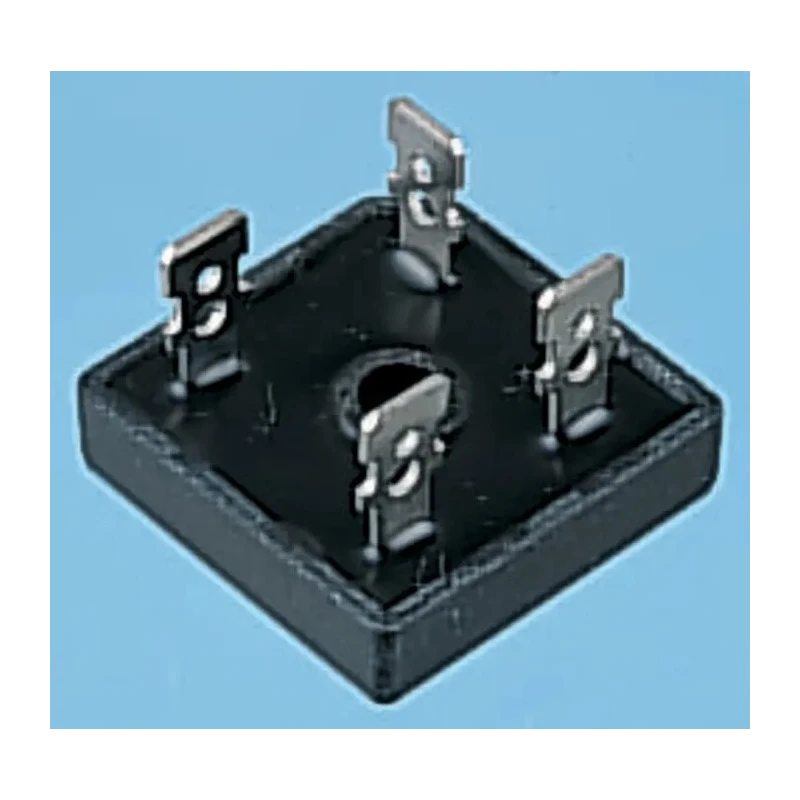

onsemi Bridge Rectifier, 200 V, 300 A, 4-Pin Single GBPC1202
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 11.23mm |
| Length | 29mm |
| Model | GBPC1202 |
| Width | 29mm |
| Mount Type | Screw |
| Series | GBPC12 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBPC |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 300A |
| Forward Current If | 12A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Features a peak reverse repetitive voltage of 200 volts for high voltage endurance.
- Supports a forward current rating of 12 amperes suitable for medium power circuits.
- Equipped with a peak non-repetitive forward surge current of 300 amperes to handle power surges.
- Includes 4 pins in a single-phase configuration for versatile mounting.
- Operates reliably within temperatures from -55°C to 150°C for varied environmental conditions.
- Package type GBPC with screw mount for secure installation.
- Compact dimensions of 29 mm length, 29 mm width, and 11.23 mm height optimize space usage.
- Low peak forward voltage of 1.1 volts minimizes power loss during operation.
Product Description
onsemi GBPC1202 Bridge Rectifier, rated at 200 V and 300 A with a 4-pin single configuration, is a semiconductor device engineered to convert alternating current (AC) to direct current (DC) effectively. This bridge rectifier is built for high performance and reliability in various industrial and electronic applications where efficient power rectification is critical.
Designed with a peak reverse repetitive voltage (Vrrm) of 200 V, it withstands high voltages during operation, preventing reverse breakdown. The forward current (If) rating of 12 A supports continuous current flow suitable for medium-power circuits. Its surge capability reaches up to 300 A peak non-repetitive forward surge current (Ifsm), offering excellent tolerance to transient overloads.
The GBPC package with screw mount type provides secure mechanical mounting and efficient heat dissipation, facilitated by the integrally molded heat sink known for very low thermal resistance. Operating temperature range from -55°C to 150°C ensures reliable performance under harsh environmental conditions.
Physical dimensions of 29 mm length, 29 mm width, and 11.23 mm height make this component compact enough for space-saving installations in electronic modules and devices. Peak reverse repetitive voltage: 200 V. Forward current: 12 A continuous operation.
Surge forward current: 300 A peak non-repetitive surge. 4-pin single-phase configuration. Operating temperature range from -55°C to 150°C. Compact GBPC pack with screw mount. Low peak forward voltage of 1.1 V for efficient conduction.
This bridge rectifier is widely used in power supply units, industrial machinery, HVAC control circuits, and laboratory equipment requiring reliable AC to DC conversion. Its robust construction and thermal management capabilities ensure long service life and high efficiency, making it a preferred choice for design engineers and system integrators.
Explore more semiconductor and Bridge Rectifier options with precise technical specifications in the EnvMart electronics component category for optimized system design and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage (Vrrm) of this model is 200 volts, allowing it to withstand high voltages during operation.
This bridge rectifier supports a forward current rating of 12 amperes, suitable for medium power circuits.
It has a peak non-repetitive forward surge current capability of 300 amperes, which helps handle power surges effectively.
The dimensions of this bridge rectifier are 29 mm in length, 29 mm in width, and 11.23 mm in height, making it compact for installations.
It operates reliably within a temperature range from -55°C to 150°C, suitable for various environmental conditions.
This model features a 4-pin configuration, allowing for versatile mounting options.
It uses a screw mount type, which provides secure mechanical mounting and efficient heat dissipation.
The peak forward voltage (Vf) is 1.1 volts, which minimizes power loss during operation.
The maximum operating temperature for this model is 150°C, ensuring reliable performance under high thermal conditions.
The minimum operating temperature is -55°C, allowing it to function in low-temperature environments.
This bridge rectifier is widely used in power supply units, industrial machinery, HVAC control circuits, and laboratory equipment for efficient AC to DC conversion.
The country of origin for this bridge rectifier is India.
