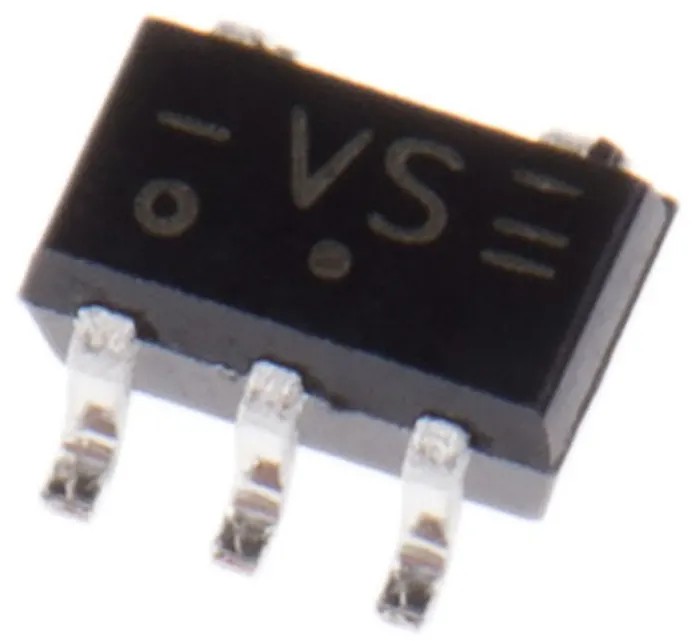

Nexperia 1 2-Input AND Logic Gate 5-Pin TSSOP 74LVC1G08GW,125

The Nexperia 74LVC1G08GW,125 is a 1 2-input AND Logic Gate housed in a 5-pin Thin Shrink Small Outline Package (TSSOP) designed for surface mounting on printed circuit boards. This device belongs to the 74LVC family of low-voltage CMOS logic gates, optimized for minimal power consumption and high-speed operation in industrial, commercial, and electronic component manufacturing applications.

Operating over a voltage range of 1.65 V to 5.5 V, it provides compatibility with various logic voltage levels including LVTTL and TTL inputs and LVCMOS outputs, making it versatile for integration into mixed-voltage systems. The device features a single AND gate element with two CMOS inputs, delivering precise logic output with a maximum propagation delay of 5.5 nanoseconds at a capacitive load.

Designed to operate reliably across extended temperature ranges from -40°C to +125°C, it is industry-suited for environments requiring long-term durability and stability. Output drive capabilities include maximum high-level output current of -32 mA and maximum low-level output current of 32 mA, suitable for driving a range of electronic loads.

The compact physical package measures 2.25 mm in length and 1 mm in height, facilitating dense PCB layouts. The surface-mount TSSOP format enables automated assembly, reducing manufacturing cost and enhancing production throughput.

Key technical specifications include a 5-pin count and Schmitt Trigger inputs are not present. The device is manufactured in Malaysia under stringent quality controls to ensure compliance with contemporary semiconductor industry standards.

Single 2-input AND gate element for digital logic applications. 5-pin Thin Shrink Small Outline Package (TSSOP) for surface mount PCB integration. Wide operating voltage range of 1.65 to 5.5 V ensuring compatibility with diverse systems.

Operating temperature range from -40°C to 125°C suits industrial and commercial use. Fast switching speed with a maximum propagation delay time of 5.5 ns. CMOS input type compatible with LVTTL and TTL logic families. Maximum output currents of ±32 mA for driving downstream circuits.

Manufactured in Malaysia with industry-standard quality assurance.

This logic gate is ideal for a broad spectrum of applications including industrial automation, electronic instrumentation, embedded control systems, and digital logic circuits. Nexperia’s commitment to quality ensures robust performance and longevity in demanding environments.
