Nexperia 1 2-Input AND Logic Gate, CMOS Input, 5-Pin TSSOP Package 74AHCT1G08GW-Q100 74AHCT1G08GW-Q100,

Nexperia 74AHCT1G08GW-Q100 is a high-speed 1 2-input AND Logic Gate manufactured using Si-gate CMOS technology, housed in a compact 5-pin TSSOP package. This device integrates one logic element with CMOS input levels, delivering reliable digital AND functionality suitable for industrial, automotive, and electronic component applications.

Operating voltage ranges from 4.5 V to 5.5 V with guaranteed functionality across temperature extremes from -40°C to 125°C, meeting stringent automotive electronics standards such as AEC-Q100 Grade 1. The maximum propagation delay of 10.5 ns supports high-speed logic circuits requiring precise timing.

The device features symmetrical output impedance and balanced propagation delays, minimizing timing errors in complex digital systems. It has maximum output currents of -8 mA (high level) and 8 mA (low level), enabling it to drive various logic inputs and loads efficiently. The absence of Schmitt trigger inputs indicates the device is tailored for standard digital signal inputs rather than noisy or slow signals.

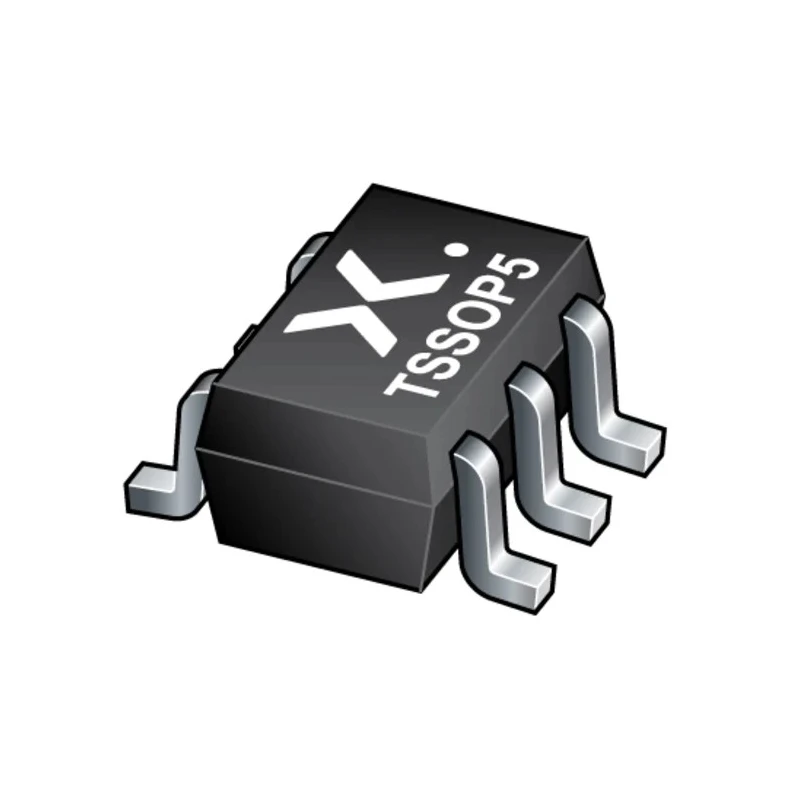

The TSSOP package type provides a small footprint (approximately 2.25 mm length and 1 mm height) making it suitable for space-constrained circuit boards in automotive, industrial control, and electronic design applications. Its high noise immunity and low power dissipation enhance performance reliability under demanding environmental conditions.

This logic IC is commonly used in automotive electronics, industrial automation, embedded control systems, and other semiconductor-based digital logic applications requiring dependable and standard AND gate functionality.

This product complies with the Automotive Electronics Council AEC-Q100 qualification (Grade 1), ensuring durability and performance for automotive use. Operates between -40°C to +125°C, suitable for harsh temperature environments.

High noise immunity and low power consumption improve system reliability. Compact 5-pin TSSOP surface mount package fits on high-density circuit boards. Symmetrical output impedance and balanced propagation delays guarantee precise logic timing.

Single 2-input AND logic function integrated within a small form factor logic IC. Supplies robust digital logic interfacing in both automotive and industrial electronic systems. Browse our extensive range of semiconductor logic ICs at EnvMart for reliable automotive and industrial electronics components from trusted manufacturers.
