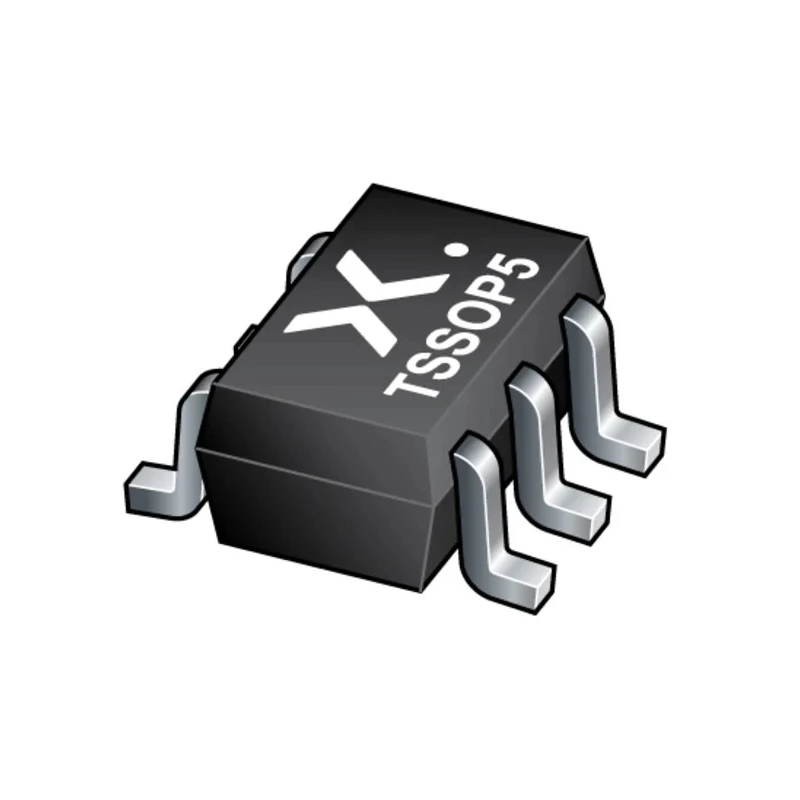

Nexperia 1 2-Input AND Logic Gate, 5-Pin TSSOP 74AHCT1G08GW,125

Nexperia 74AHCT1G08GW,125 is a high-speed 1 2-input AND Logic Gate IC housed in a 5-pin TSSOP surface mount package. It operates reliably with a supply voltage from 4.5 V up to 5.5 V, making it ideal for mixed mode 3.3 V and 5 V logic systems. This device features TTL input switching levels and is designed to offer improved signal integrity and reduced propagation delay, with a propagation delay time of only 10.5 ns at the specified load.

The single gate IC supports temperature operation range from -40°C to 125°C, enabling use in demanding industrial and commercial environments. With maximum high and low level output currents of ±8 mA, it can drive downstream logic components effectively while maintaining low power consumption typical of CMOS technology.

The compact 5-pin TSSOP package, measuring 2.25 mm in length and 1 mm in height, is suitable for space-constrained PCB designs and surface mount assembly. Produced in Malaysia, this logic gate is built to stringent quality standards but carries no specific approvals or automotive certification.

Key industrial and commercial applications include use in cell phone circuitry, computing devices, industrial control systems, and LCD TVs, leveraging its fast switching and robust TTL input compatibility. The device supports open-drain output options and is overvoltage tolerant, enhancing its versatility in complex mixed voltage circuit layouts.

Operates with a supply voltage range of 4.5 V to 5.5 V. Single 2 input AND Logic Gate function with TTL input levels. Maximum propagation delay of 10.5 ns ensures high-speed operation. Compact 5-pin TSSOP package for space-saving designs.

Wide temperature range (-40°C to 125°C) for industrial use. Maximum output current ±8 mA for reliable drive capability. CMOS low-power design compatible with mixed 3.3 V / 5 V systems. Manufactured in Malaysia with consistent quality.

Ideal for applications in industrial controllers, cell phones, computing, and LCD TVs. Explore the full range of semiconductor logic components at EnvMart for reliable electronic design solutions.
