Nexperia 1 13 V General Purpose Zener Diode 500 mW Surface Mount 2-Pin SOD-323 TDZ13J,115

Free Delivery in India | Lowest Global Shipping Charges

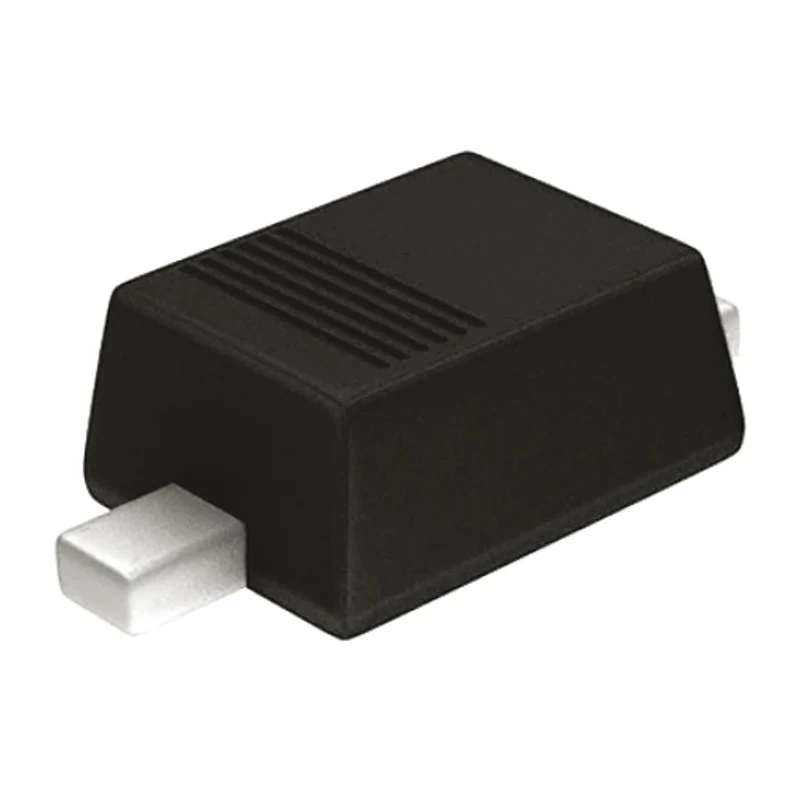

Nexperia 1 13 V General Purpose Zener Diode 500 mW Surface Mount 2-Pin SOD-323 TDZ13J,115

Name: Nexperia 1 13 V General Purpose Zener Diode 500 mW Surface Mount 2-Pin SOD-323 TDZ13J,115
Brand: Nexperia
SKU: 376498
Price: 0.05 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	0.8mm
Length	2.7mm
Model	TDZ13J,115
Mount Type	Surface
Series	TDZxJ
Maximum Operating Temperature	150°C
Package Type	SOD-323
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	100nA
Nominal Zener Voltage Vz	13V
Zener Type	General Purpose
Maximum Zener Impedance	10Ω
Typical Voltage Temperature Coefficient	7mV/K

Key Features

The diode has a nominal Zener voltage of 13 V with a tolerance of 2%.
Maximum power dissipation is rated at 500 mW.
Comes in a compact SOD-323 surface mount package suitable for modern PCB layouts.
Features a maximum reverse leakage current of 100 nA and maximum Zener impedance of 10 ohms.
Operates reliably over a temperature range from -55°C to 150°C.
Test current rating is 5 mA, ensuring stable voltage reference.
The diode is compliant with the AEC-Q101 automotive standard.
Its miniature size includes height of 0.8 mm and length of 2.7 mm.

Product Description

Nexperia TDZ13J,115 is a 1 13 V Zener diode designed for general purpose voltage regulation in electronic circuits. It is supplied in a compact 2-pin SOD-323 surface mount package, supporting a maximum power dissipation of 500 mW. This device is well-suited for applications requiring precise voltage control with low noise and temperature stability.

The diode offers a nominal Zener voltage of 13 V with a tolerance of ±2%, ensuring consistent performance. It operates reliably at test currents of 5 mA with a maximum Zener impedance of 10 Ω, minimizing voltage variation in circuit designs.

Designed for use in harsh environments, the diode withstands operating temperatures ranging from -55°C to 150°C, making it ideal for automotive and industrial electronics where temperature resilience is critical. The device conforms to the AEC-Q101 automotive standard, underscoring its reliability and quality in automotive systems.

Its small SOD-323 package with a height of 0.8 mm and length of 2.7 mm supports high-density PCB layouts, facilitating compact circuit board design and automated surface mount technology manufacturing processes.

The diode features a maximum reverse leakage current of 100 nA, reducing circuit leakage and improving efficiency. Its typical voltage temperature coefficient of 7 mV/K ensures stable operation across temperature variations.

Being a single-element chip, it provides a focused and reliable voltage reference element. The component is manufactured in China and is supplied new and ready for integration in industrial, automotive, laboratory, and manufacturing electronic applications.

Ideal uses include voltage regulation, surge protection, and reference voltage sources in power supplies, telecommunications, and instrumentation. Explore Nexperia and other semiconductors in EnvMart's Electronics category for reliable quality components for your electronic manufacturing needs.

Explore more products in our Zener Diodes category.
