Nexperia 1 2-Input AND Logic Gate 5-Pin SC-74A, CMOS, LVC Family, 1.65 to 5.5 V Operating Voltage 74LVC1G08GV,125

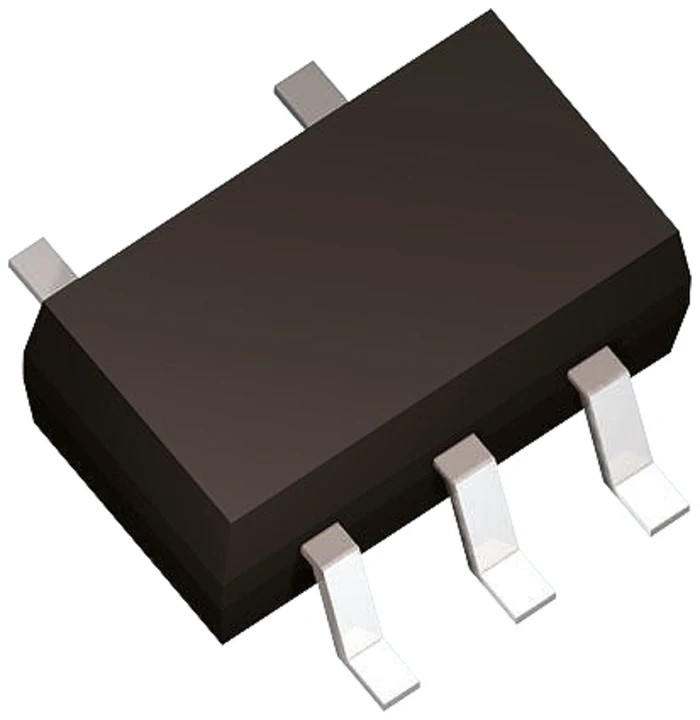

Nexperia 74LVC1G08GV,125 is a single 2-input AND logic gate IC housed in a compact 5-pin SC-74A surface mount package designed for modern digital electronics applications. Operating within a voltage range of 1.65 to 5.5 volts, this CMOS device provides compatibility with LVTTL/TTL input signals and LVCMOS output levels, making it suitable for a wide variety of low-voltage circuit designs.

The device supports industrial temperature ranges from -40°C up to 125°C, ensuring stable performance in demanding operational environments such as industrial automation, embedded system controls, and communication equipment. Featuring a maximum propagation delay time of 5.5 ns, it is capable of handling high-speed logic switching requirements.

With a maximum output current of ±32 mA, the gate can drive loads directly, suitable for interfacing with other logic families or peripheral components. The 74LV logic family ensures minimal power consumption and enhanced noise margins for robust and efficient digital logic implementation.

The compact SC-74A package with dimensions 1 mm height and 3.1 mm length enables space-saving surface mounting on printed circuit boards. This form factor facilitates integration into dense electronic assemblies and improves manufacturability with automated pick-and-place equipment.

This device delivers a reliable AND logic function essential for combinational logic circuits. Low-voltage CMOS technology ensures compatibility with modern low-power designs. Suitable for industrial, laboratory, and commercial electronic system applications.

Surface mount 5-pin package simplifies PCB design and assembly. Durability across -40°C to 125°C temperature range supports harsh operating conditions. Maximum propagation delay of 5.5 ns allows fast and efficient logic processing.

Typical applications include signal gating, logic control, and digital function implementation. Explore EnvMart’s extensive range of semiconductor Logic Gates and complementary electronic components to enhance your design and manufacturing projects.
