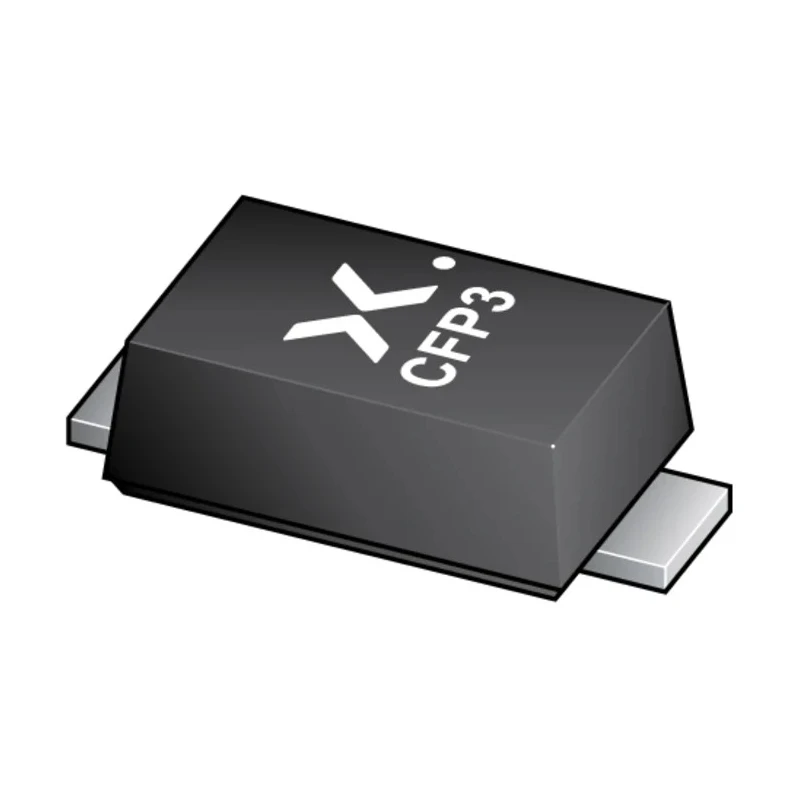

Nexperia Schottky Diode 100V 2.8A SOD-123 Surface-Mount Single 2-Pin PMEG10020ELRX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.8mm |
| Model | PMEG10020ELRX |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | PMEG10020ELR |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2.8A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 830mV |
| Peak Reverse Recovery Time trr | 3.7ns |
| Average forward current | IF(AV) ≤ 2 A |
| Reverse voltage | VR ≤ 100 V |
| onsemi 100 V 2 A Diode Schottky 2-Pin SOD-123FLBrand | onsemi |
Key Features
- Schottky rectifier delivers low forward voltage and high switching speed.
- Maximum continuous forward current is 2.8A for medium-power applications.
- Peak reverse voltage rated up to 100V for robust protection.
- Surface-mount SOD-123 package optimizes board space and layout flexibility.
- AEC-Q101 qualified for automotive-standard reliability and performance.
- Fast recovery time and extremely low leakage current for efficient operation.
- Operating temperature up to 175°C supports demanding industrial environments.
Product Description
Nexperia PMEG10020ELRX is a medium-power Schottky barrier diode featuring a maximum reverse voltage of 100V and a continuous forward current rating of 2.8A. Designed with a single 2-pin, SOD-123 surface-mount package, it offers excellent space efficiency for PCB layouts.
Leveraging Schottky rectifier technology, this diode achieves a low forward voltage drop and rapid switching characteristics, ideal for applications requiring fast rectification and minimal power loss. Key specifications include maximum forward current of 2.8A, peak reverse repetitive voltage of 100V, and an extremely low reverse leakage current - all contributing to high efficiency and extended battery life.
The PMEG10020ELRX supports operating temperatures up to 175°C, meeting the demands of harsh industrial and automotive environments. AEC-Q101 compliance ensures reliability for automotive applications, while the planar MEGA (Maximum Efficiency General Application) architecture and integrated guard ring design deliver enhanced stress protection and high reliability.
Features include a fast reverse recovery time (3.7ns), peak forward surge current up to 50A, and low forward voltage drop (770 - 830mV) for efficient circuit performance. Its compact SOD-123 package dimensions (1.1mm height, 2.8mm length, 1.9mm width) allow for dense circuit integration in power supplies, converters, and signal processing.
This diode is suited for use in switched-mode power supplies, battery management, DC/DC converters, industrial electronics, and automotive systems requiring reliable rectification and low VF.
By combining high efficiency, reliability, and compact form factor, the Nexperia PMEG10020ELRX Schottky Diode is an ideal solution for designers looking to optimize power management and circuit performance.
Browse more Nexperia Schottky Diodes and rectifiers in the Semiconductor category on EnvMart.
