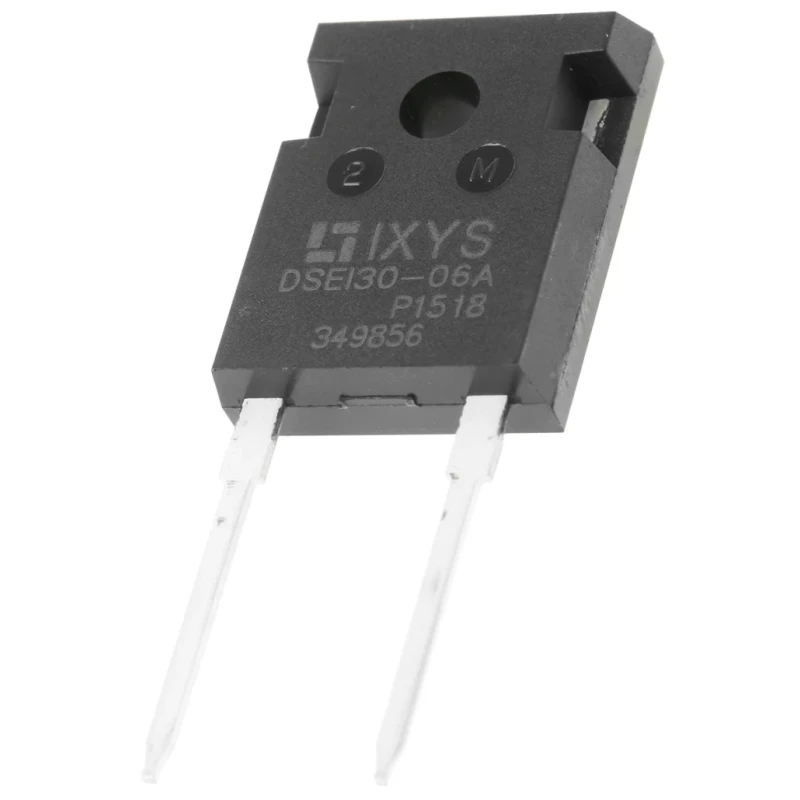

IXYS Switching Diode 600 V 37 A 2-Pin TO-247AD DSEI30-06A
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 21.46mm |
| Length | 16.26mm |
| Model | DSEI30-06A |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | DSEI30 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247AD |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 37A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 320A |
| Maximum Forward Voltage Vf | 1.6V |
| Peak Reverse Recovery Time trr | 50ns |
| IXYS 600 V 60 A Diode Switching 2-Pin TO-247AD DSEI60-06ABrand | IXYS |
Key Features
- This diode is rated for a maximum continuous forward current of 37 A.
- It features a peak reverse repetitive voltage of 600 V suitable for high voltage operations.
- Constructed with a 2-pin TO-247AD through-hole mounting package for easy PCB integration.
- Offers a fast peak reverse recovery time of 50 ns for efficient switching performance.
- Operates reliably within a temperature range from -40°C to 150°C.
- Maximum forward voltage drop is 1.6 V ensuring low conduction losses.
- Capable of handling peak non-repetitive forward surge currents up to 320 A.
Product Description
IXYS DSEI30-06A Switching Diode is a high-performance semiconductor diode designed for switching applications in industrial and electronic circuits. Encapsulated in a robust 2-pin TO-247AD package, this diode supports a maximum continuous forward current of 37 A and a peak reverse repetitive voltage of 600 V, making it suitable for demanding power electronic environments.
The device features a fast peak reverse recovery time of 50 ns, contributing to efficient switching and reduced power losses in high-frequency applications. The maximum forward voltage of 1.6 V ensures minimal conduction drop, enhancing overall system efficiency.
With an operating temperature range from -40°C to 150°C, the DSEI30-06A diode is suitable for use in industrial, commercial, and automotive-grade electronic equipment. Its construction as a single diode with two pins and a through-hole mount ensures reliable mechanical and electrical integration on printed circuit boards.
Key dimensions include a height of 21.46 mm, length of 16.26 mm, and width of 5.3 mm, providing a compact footprint for system designers. This diode finds applications across power management, switching power supplies, motor controls, and other electronic systems requiring robust switching components.
This diode is rated for a maximum continuous forward current of 37 A. It features a peak reverse repetitive voltage of 600 V suitable for high voltage operations. Constructed with a 2-pin TO-247AD through-hole mounting package for easy PCB integration.
Offers a fast peak reverse recovery time of 50 ns for efficient switching performance. Operates reliably within a temperature range from -40°C to 150°C. Maximum forward voltage drop is 1.6 V ensuring low conduction losses.
Capable of handling peak non-repetitive forward surge currents up to 320 A. Compact dimensions: height 21.46 mm, length 16.26 mm, width 5.3 mm. Explore the extensive range of IXYS Semiconductor Diodes at EnvMart for various advanced electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 37 A.
This model has a peak reverse repetitive voltage of 600 V, making it suitable for high voltage operations.
The maximum forward voltage drop of this diode is 1.6 V, ensuring low conduction losses.
The dimensions of this diode are 21.46 mm in height, 16.26 mm in length, and 5.3 mm in width.
This diode can handle peak non-repetitive forward surge currents up to 320 A.
The peak reverse recovery time for this model is 50 ns, contributing to efficient switching performance.
It operates reliably within a temperature range from -40°C to 150°C.
This model is constructed with a 2-pin TO-247AD through-hole mounting package for easy PCB integration.
This diode is classified as a switching rectifier, suitable for various electronic applications.
The diode configuration for this model is single, designed for efficient switching applications.
This diode is suitable for applications in power management, switching power supplies, and motor controls.
The country of origin for this diode is India.
