TE Connectivity CoolSplice In Line Wire Splice Connector, Clear, Insulated 20 AWG 2213800-4

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity CoolSplice In Line Wire Splice Connector, Clear, Insulated 20 AWG 2213800-4

Name: TE Connectivity CoolSplice In Line Wire Splice Connector, Clear, Insulated 20 AWG 2213800-4
Brand: TE Connectivity
SKU: 200512
Price: 2.35 USD
Availability: InStock



Category Wire Splice Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	Czech Republic
Diameter	16mm
Brand	TE Connectivity
THICKNESS	11.4mm
Insulation	Insulated
Overall Length	36.4mm
Contact Material	Phosphor Bronze
Series	CoolSplice
Termination Type	Crimp
Insulation Material	Polycarbonate
Minimum Wire Size mm²	0.33mm²
Maximum Wire Size mm²	0.52mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	20AWG
Splice Type	In Line

Key Features

Utilizes industry-proven IDC connection technology that eliminates the need to pre-strip wires.
Features a simple push button termination method for fast and easy installation.
Constructed with polycarbonate insulation material for durability and safety.
Clear body design enables visual inspection of wire connections.
Gel sealing provides waterproof protection suitable for harsh environments.
Compatible with wire sizes from 0.34 mm² to 0.75 mm² (22 AWG to 20 AWG).
Phosphor bronze contact material ensures reliable electrical conductivity.
Compact dimensions with overall length of 36.4mm and thickness of 11.4mm.

Product Description

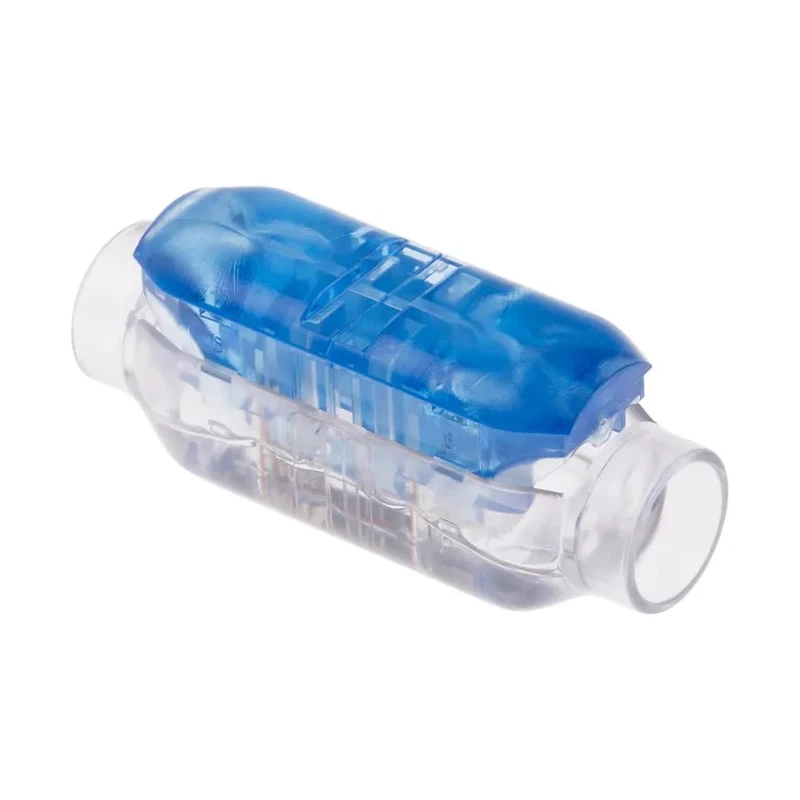

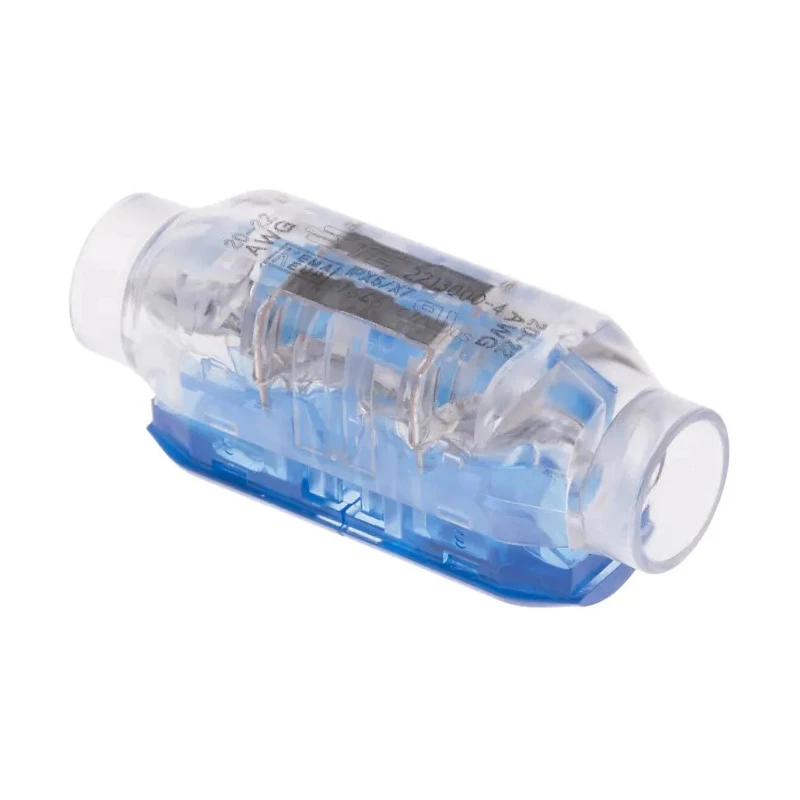

TE Connectivity 2213800-4 CoolSplice In Line Wire Splice Connector is designed for fast, reliable, and easy wire splicing using insulation displacement contact (IDC) technology. Operating with a clear polycarbonate body and colour-coded push buttons, this connector supports 20 AWG wires and provides visual confirmation of installation integrity.

The connector features a simple push button termination method that allows the wires to be inserted without stripping, followed by compression with pliers to achieve a secure crimp connection. The gel sealing provides an IPX8 rated waterproof barrier, making it suitable for use in harsh and outdoor environments.

Constructed from durable phosphor bronze contacts and high-quality polycarbonate insulation, this connector ensures long-term electrical performance and corrosion resistance. With an overall length of 36.4mm, thickness of 11.4mm, and a compact 16mm diameter, it fits conveniently in confined spaces.

This Wire Splice Connector is ideal for numerous industrial and commercial applications including outdoor lighting installations, refrigeration unit lighting, security alarms, audio speaker wiring, and cabinet lighting, delivering consistent performance in demanding conditions.

Utilizes industry-proven IDC connection technology that eliminates the need to pre-strip wires. Push button termination enables quick and easy factory or field installation. Clear polycarbonate body allows visual inspection of wire termination quality.

Gel sealing offers waterproof protection suitable for outdoor and harsh environments. Colour-coded push buttons facilitate identification of wire sizes during installation. Compact design with overall length 36.4mm and thickness 11.4mm.

Compatible with wire sizes from 0.34 mm² to 0.75 mm² (22 AWG to 20 AWG). Phosphor bronze contact material ensures robust electrical connection. Country of Origin: Czech Republic. Available for use in industrial, laboratory, HVAC, manufacturing, water treatment, agricultural, and commercial electrical applications.

Explore more connectors and splicing solutions with TE Connectivity and similar high-quality brands on EnvMart.
