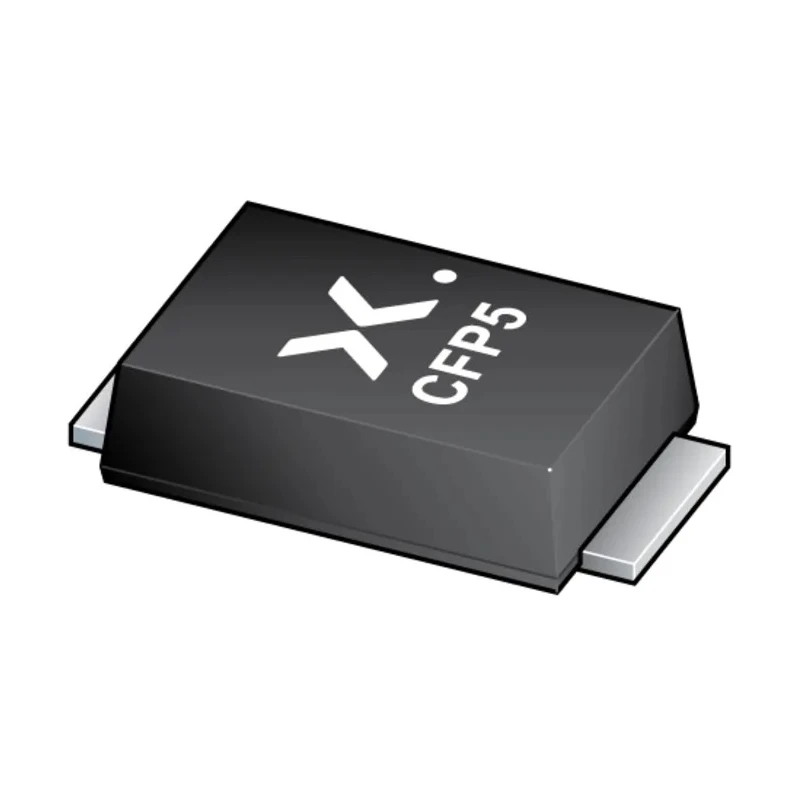

Nexperia PMEG6030EVPX 60 V 4.2 A Schottky Diode, SOD-128, Surface Mount, 2-Pin

The Nexperia PMEG6030EVPX is a high-performance Schottky barrier rectifier designed for modern power management applications requiring efficiency, reliability, and compact size. This diode supports a maximum continuous forward current of 4.2 A and a peak reverse repetitive voltage of 60 V, making it suitable for a wide variety of power conversion and rectification tasks in both automotive and industrial electronic systems.

Utilizing advanced planar MEGA (Maximum Efficiency General Application) Schottky technology, the PMEG6030EVPX delivers reduced forward voltage drop and high switching speed. The integrated guard ring enhances stress protection, contributing to overall device robustness and increased longevity. It features a compact SOD-128 surface-mounted package with flat leads, optimized for automated assembly and applications with space constraints.

The diode’s high power capability is achieved through efficient clip-bonding construction, offering stable electrical performance even under pulsed or surge load conditions. With an outstanding peak non-repetitive forward surge current of 70 A and a low forward voltage (maximum 475 mV), it minimizes power dissipation in low voltage rectification circuits. The device’s operation range spans from -55°C up to an industry-leading 175°C junction temperature, well suited for demanding environments.

Compliant with AEC-Q101 automotive quality standards, the PMEG6030EVPX ensures reliability for automotive electronics, as well as for industrial controls and power modules. Its low leakage and fast switching characteristics make it ideal for use in DC-to-DC converters, switch mode power supplies, reverse polarity protection circuits, and various high efficiency power management solutions.

In addition, its compact outline and surface-mount design simplify PCB layout and assembly, providing cost-effective, high-density integration for manufacturers. The PMEG6030EVPX is particularly recommended for applications where energy efficiency, fast transient response, and compact packaging are essential criteria.

Common use cases include automotive control modules, industrial DC-DC power supplies, switch mode converters, and other high-reliability electronic systems in industrial, commercial, and transportation sectors.
