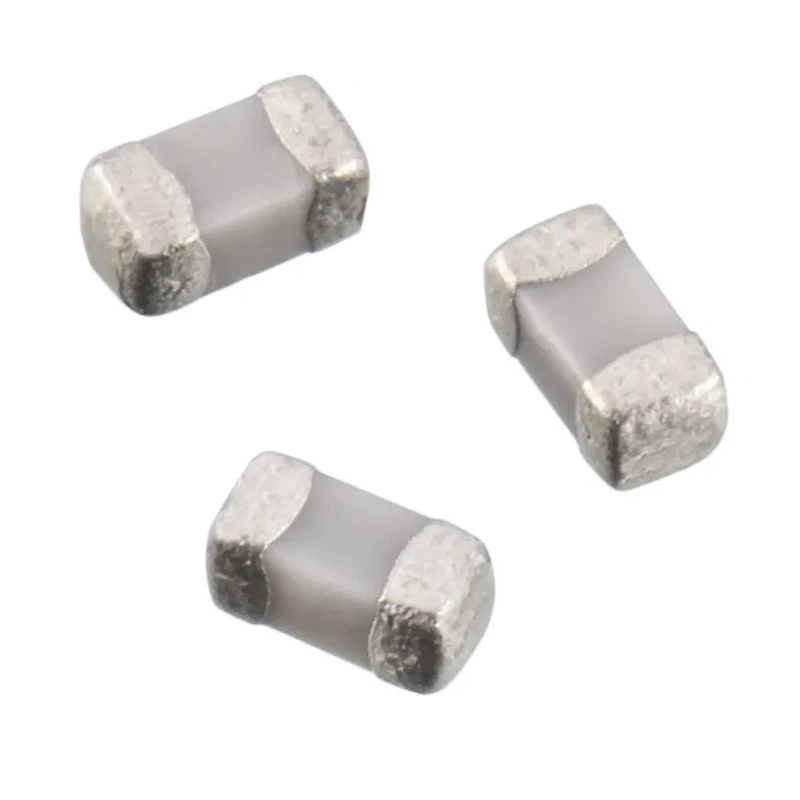

Wurth Elektronik 0.4 pF Multilayer Ceramic Capacitor, 50V DC, 0.05 pF Tolerance, Surface Mount 885392005002

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 0.4 pF Multilayer Ceramic Capacitor, 50V DC, 0.05 pF Tolerance, Surface Mount 885392005002

Name: Wurth Elektronik 0.4 pF Multilayer Ceramic Capacitor, 50V DC, 0.05 pF Tolerance, Surface Mount 885392005002
Brand: Wurth Elektronik
SKU: 290772
Price: 0.13 USD
Availability: InStock



Category Multilayer Ceramic Capacitor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Voltage	50V dc
Capacitance Range	0.2 pF ‒ 33 pF
Brand	Wurth Elektronik
Operating Temperature	-55 °C up to + 125 °C
Height	0.5mm
Length	1mm
Width	0.5mm
Mounting Style	SMT-Chip
Mount Type	Surface
Series	WCAP-CSRF
Temperature Coefficient	±30 ppm/°C
Termination	Cu/Ni/Sn
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	0.05 pF
Capacitance	0.4pF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0402
Dielectric	C0G
Suppression Class	Class I
Recommended soldering	Reflow soldering
Voltage range (UR)	25 ‒ 50 V(DC)
Sizes	0201 / 0402
Ceramic	NP0 (Class I)

Key Features

Features C0G dielectric, ensuring excellent stability and low losses.
Package size is 0402 (1mm length x 0.5mm width x 0.5mm height) suitable for compact PCB designs.
Operates reliably in temperature ranges from -55°C to 125°C.
Recommended for high-frequency applications including antenna matching.
Termination type is solder with Cu/Ni/Sn plating suitable for reflow soldering processes.
Capacitance tolerance of 0.05 pF guarantees precise performance.
This capacitor complies with RoHS standards and originates from Taiwan, Province Of China.

Product Description

Wurth Elektronik 885392005002 is a 0.4 pF Multilayer Ceramic Capacitor designed for surface mount applications with a voltage rating of 50V DC and a capacitance tolerance of 0.05 pF. It features a C0G (NP0, Class I) ceramic dielectric, ensuring excellent temperature stability and minimal capacitance change over temperature.

The capacitor package size is 0402, measuring 1 mm in length, 0.5 mm in width, and 0.5 mm in height, making it suitable for modern compact electronic assemblies. Its termination consists of a solder finish with Cu/Ni/Sn plating, optimized for reflow soldering.

This model operates effectively within a temperature range of -55°C to 125°C, supporting a broad range of industrial and electronic applications. The capacitance range for this series is 0.2 pF to 33 pF, with a temperature coefficient of ±30 ppm/°C, and voltage range of 25 to 50 V DC. It belongs to the WCAP-CSRF series noted for high-frequency performance.

Commonly used in antenna matching and other high-frequency electronic components, this capacitor ensures low signal loss and stable operation. Its RoHS compliance confirms it is manufactured to strict environmental standards. The product is manufactured in Taiwan, Province Of China.

High stability C0G ceramic dielectric. Surface mount package size 0402 for compact PCBs. Wide operating temperature from -55°C to 125°C. Capacitance tolerance of 0.05 pF for precise applications. Cu/Ni/Sn solder terminations compatible with reflow soldering.

Voltage rating of 50V DC ensures reliability in circuits. Suitable for high-frequency and antenna matching applications. RoHS compliant for environmental safety.
