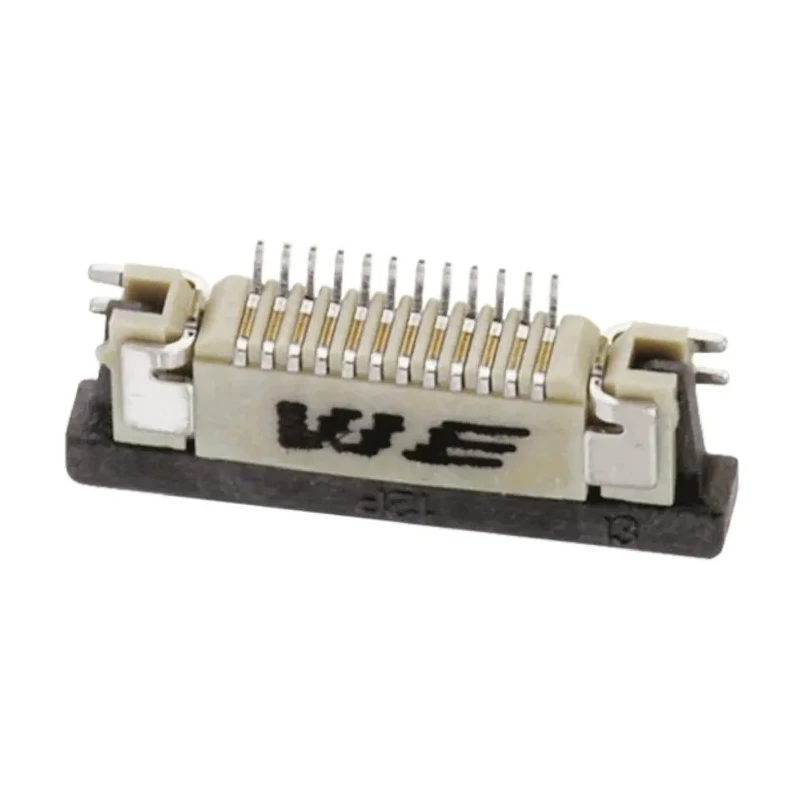

Wurth Elektronik 0.5 mm Pitch 12 Way Straight Male FPC Connector, Solder Pin 68711214522
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | 687 |
| Termination Type | Solder Pin |
| Maximum Operating Temperature | 85°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Connector Gender | Male |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- This FPC connector supports a current rating of 500mA and voltage rating of 50V.
- The connector features a phosphor bronze contact material with tin over nickel plating for reliable electrical performance.
- It has a liquid crystal polymer housing and a locking mechanism for secure mating.
- Rated for a minimum operating temperature of -25°C and maximum of 85°C.
- Bottom contact position with a single row and straight orientation suitable for surface mount technology.
- Supports up to 25 mating cycles with UL94-V0 flammability rating.
- Manufactured in China and part of the 687 series by Wurth Elektronik.
Product Description
Wurth Elektronik 68711214522 12 Way Straight Male FPC Connector, 0.5 mm Pitch, is designed for high-reliability wire-to-board connections in compact electronic applications. This connector offers a pitch of 0.5 mm with 12 contacts, making it suitable for PCB connectors requiring surface mounting technology with solder pin termination. The contact material is phosphor bronze, plated with tin over nickel to ensure robust electrical conductivity and corrosion resistance.
The connector features a bottom contact position with straight orientation and includes a locking mechanism for secure connection stability. It operates within a temperature range of -25°C to 85°C, complying with demanding environmental conditions. The connector supports Zero Insertion Force (ZIF), easing installation and removal while maintaining connection integrity.
Its housing is made from liquid crystal polymer, providing durability and a UL94-V0 flammability rating for safety compliance. Wurth Elektronik has engineered this connector for up to 25 mating cycles, suitable for electronics manufacturing and repair processes.
Ideal for use in consumer electronics, communications equipment, industrial devices, and other electronic assembly scenarios where space-saving and reliable interconnections are required.
High-density 0.5 mm pitch design with 12 contacts. Phosphor bronze contact material with tin over nickel plating. Liquid crystal polymer housing with UL94-V0 flammability rating. Zero Insertion Force (ZIF) for easy mating and unmating.
Secure locking mechanism to prevent accidental disconnections. Operating temperature range from -25°C to 85°C for versatile usage. Supports 25 mating cycles ensuring durability in repetitive use. This product is manufactured in China and is part of the well-established 687 series by Wurth Elektronik, a leader in electronic connector technology.
