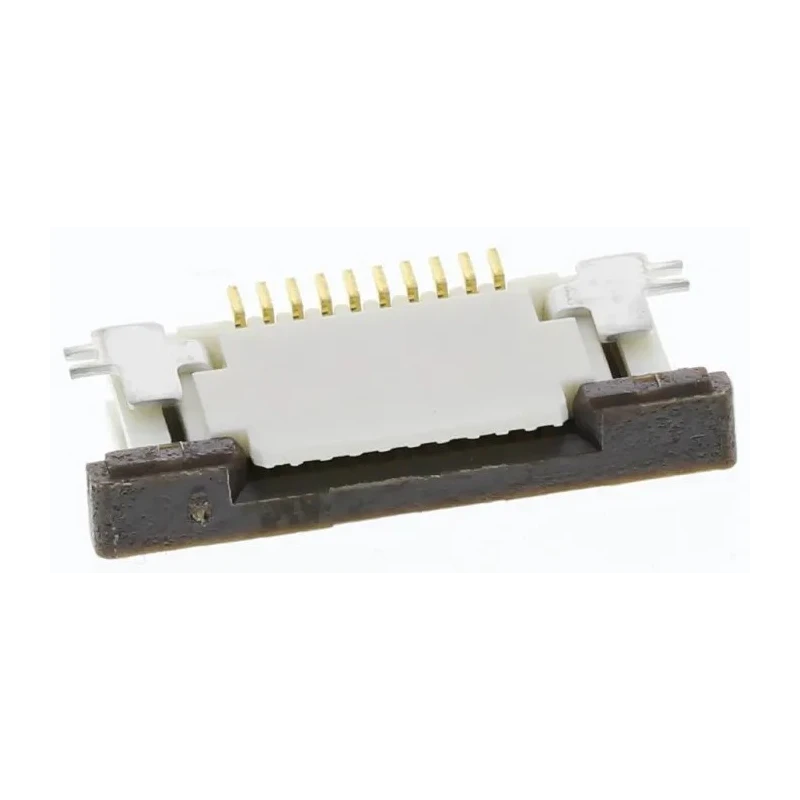

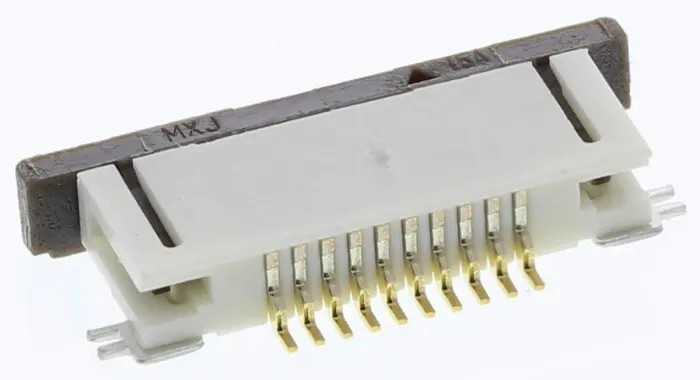

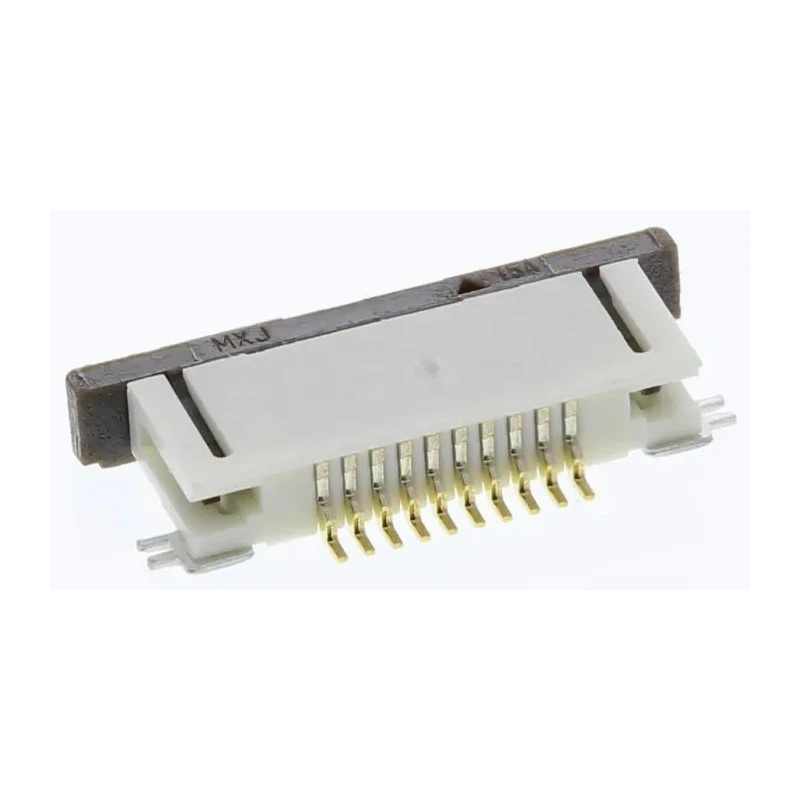

Molex 0.5 mm Pitch 10 Way Right Angle Female Easy-On FPC Connector with Solder Termination 52746-1071

Molex 52746-1071 is a 0.5 mm pitch Easy-On FPC Connector with 10 female contacts, designed for right angle installation on surface mount PCBs with solder termination. This connector features a slide type actuator that provides secure and reliable connections suited for compact and high-density electronic assemblies.

Constructed using phosphor bronze contacts plated with gold over nickel, it ensures optimal electrical conductivity and corrosion resistance. The nylon housing affords mechanical stability and insulation. The connector accommodates a current of up to 500mA and voltage rating of 50V AC, making it suitable for a diverse range of low power electronic applications.

The ZIF (Zero Insertion Force) design enables easy FPC insertion and removal, minimizing wear during repeated cycles. The right angle orientation is ideal for tight packaging environments and the movable contacts maintain secure retention when cables are manipulated.

Solder tabs enhance PCB retention and provide strain relief for solder tail joints, improving durability and long-term reliability in industrial, automotive, consumer electronics, medical, and telecommunications applications. This connector series is widely employed in devices such as automotive navigation systems, digital cameras, mobile phones, tablets, GPS units, and medical monitors.

Space-saving 0.5 mm pitch with 10 female contacts optimized for compact assemblies. Gold over nickel plated phosphor bronze contacts for superior conductivity and durability. Right angle orientation and slide-type actuator for secure and easy FPC connection.

Zero insertion force design suitable for repeat cycling with minimal wear. Solder tabs provide secure PCB retention and relieve strain on solder joints. Operating temperature range from -20°C to +85°C supports harsh environments.

Nylon housing material ensures insulation and mechanical strength. Applications include automotive, consumer, medical, and telecommunications equipment. Explore more connectors and electronic components compatible with industrial and commercial needs at EnvMart for reliable sourcing.
