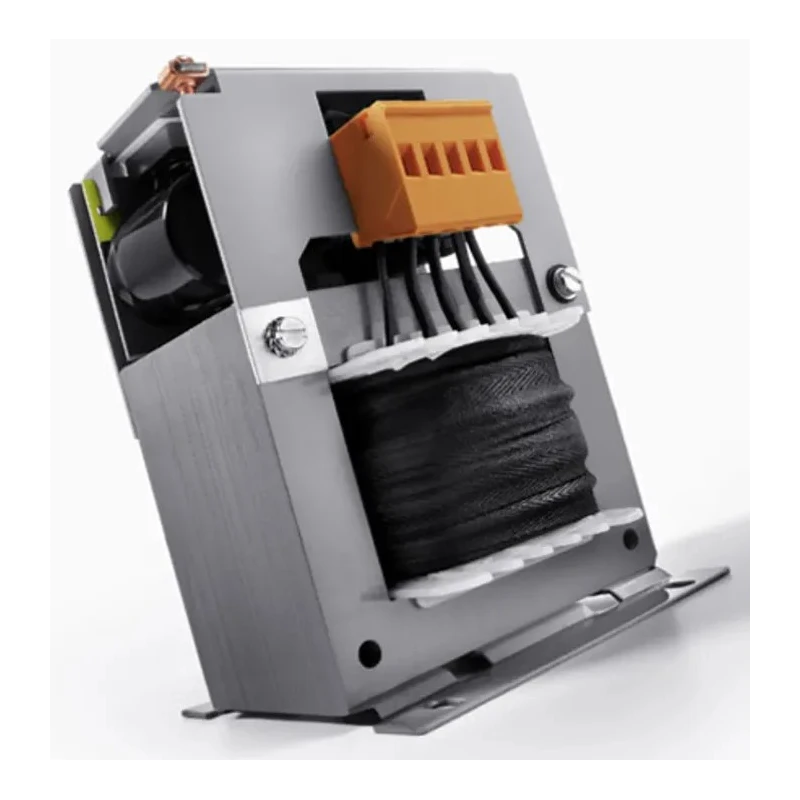

Block 1 kVA Chassis Mount Transformer 230 V, 400 V ac Dual Input, 2 x 24 V ac Output STEU 1000/48

Free Delivery in India | Lowest Global Shipping Charges

Block 1 kVA Chassis Mount Transformer 230 V, 400 V ac Dual Input, 2 x 24 V ac Output STEU 1000/48

Name: Block 1 kVA Chassis Mount Transformer 230 V, 400 V ac Dual Input, 2 x 24 V ac Output STEU 1000/48
Brand: Block
SKU: 141592
Price: 525.56 USD
Availability: InStock



Category Chassis Mounting Transformers Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Length	143mm
Model	STEU 1000/48
Depth	156mm
Gross Weight	13.3kg
Width	150mm
Series	STEU
Maximum Operating Temperature	40°C
Primary Voltage	230 V, 400 V ac
Secondary Voltage	2 x 24 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Dual primary voltage input supports 230 V and 400 V ac for flexible installation.
Compact chassis mount design with robust metal footplate for secure mounting.
Equipped with spring clamp terminals for quick and reliable cabling.
Complies with multiple international standards including VDE 0570, cURus, UL 5085, and IEC 61558 series.
Suitable for applications requiring safe isolation such as control systems, SELV, and PELV circuits.
Operates reliably at a maximum temperature of 40°C and frequency up to 60 Hz.
Low noise operation with excellent corrosion protection for long service life.

Product Description

The Block STEU 1000/48 chassis mount transformer is a high-performance, compact safety isolating transformer designed for use in industrial and control system applications. It features dual primary voltage inputs of 230 V and 400 V ac, with a secondary output of 2 x 24 V ac, making it ideal for creating safety extra-low voltage (SELV) and protective extra-low voltage (PELV) circuits.

This transformer offers excellent switch-on behavior due to reduced starting currents, ensuring minimal electrical stress on connected systems. It has a robust construction with a metal footplate equipped with oval slots for easy and secure chassis mounting. The spring clamp terminals provide fast and secure wiring, simplifying installation and maintenance.

Designed to operate with a maximum ambient temperature of 40°C and at frequencies ranging from 50 Hz to 60 Hz, this transformer is suitable for a variety of industrial environments. It operates quietly and includes corrosion protection measures to ensure durability and reliability over time.

Block STEU series transformers comply with numerous international safety and performance standards such as VDE 0570 Part 2-4, cURus, UL 5085-1/-2, IEC 61558-2-6, DIN EN 61558 series, and CSA 22.2 No.66. These certifications ensure the product's suitability for stringent industrial applications.

Dual primary voltage input supports 230 V and 400 V ac for flexible installation. Compact chassis mount design with robust metal footplate for secure mounting. Equipped with spring clamp terminals for quick and reliable cabling.

Complies with multiple international safety standards for transformers. Low operating noise and excellent corrosion protection ensure long service life. Ideal for creating SELV and PELV circuits in control and industrial systems.

Operating temperature limit of 40°C with frequency range of 50 to 60 Hz. Dimensions and weight suit compact mounting spaces with stable footprint.

This transformer is widely used in industry, electronics, and manufacturing for supplying isolated power safely to sensitive control equipment. Its compliance with international standards and robust design make it a reliable choice for demanding electrical installations.
