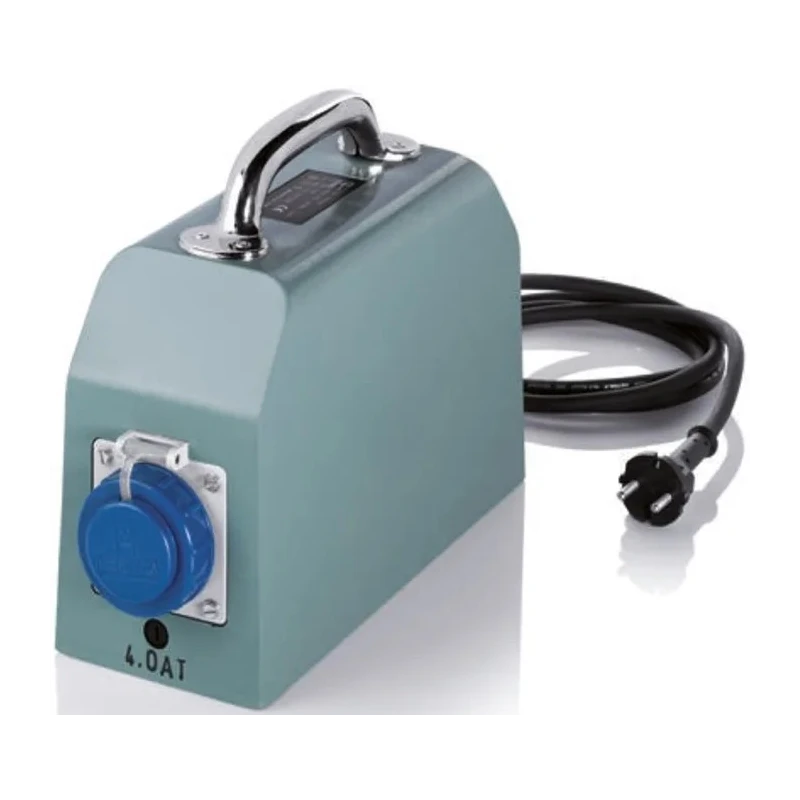

Block Portable Isolation Site Transformer 630 VA 230 V ac Primary 230 V ac Secondary 2.7 A Output ETTK 630

The Block ETTK 630 portable isolation site transformer is designed for applications requiring reliable electrical isolation and voltage transformation within industrial, laboratory, and power supply environments. This transformer provides 630 VA rated power with balanced primary and secondary voltage of 230 V ac, delivering 2.7 A of output current. It features a high protection class by being encapsulated in resin, ensuring durability and safety.

The unit includes a convenient carry handle for easy transportation and portability on sites. Its construction offers short-circuit proof performance under specified conditions, enhancing operational reliability and safe usage. The ETTK 630 complies with international standards IEC 61558-2-4 and DIN EN 61558-2-4, and carries VDE 0570 part 2 - 4 approval, guaranteeing quality and conformity.

Fitted with Schuko plug and socket type on the secondary side, it supports easy integration into existing power setups. It operates effectively within a frequency range of 50 to 60 Hz and withstands a maximum operating temperature of 40°C, making it suitable for various industrial and electronic applications including power distribution and electronic component testing.

The transformer measures 230 mm in length, 120 mm in width, and 300 mm in depth, with a gross weight of 16.4 kg representing its solid and reliable build. This combination of technical features and standards compliance ensures excellent performance and safety.

Applications include industrial plants, laboratories, test benches, and power distribution setups requiring isolation and consistent voltage output. Users benefit from its portable design, robust encapsulated construction, and internationally certified safety features.

Encapsulated resin construction provides high protection class. Includes carry handle for portability and ease of use. Short-circuit proof under conditions improves safety. Meets IEC 61558-2-4 and DIN EN 61558-2-4 safety standards.

Features Schuko plug and socket for compatibility. Operates at 230 V ac primary and secondary voltages. Rated 630 VA power and 2.7 A output current. Maximum operating temperature 40°C and frequency 50-60 Hz. Compact size and sturdy weight of 16.4 kg.

Discover more transformers and power supply solutions in the Transformers and Power Supply category at EnvMart designed to meet diverse industrial and electronic requirements.
