RS PRO 1 Site Transformer 1.5 kVA, 230 V ac Primary, 110 V Secondary, 6 A Output 123-7380

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 1 Site Transformer 1.5 kVA, 230 V ac Primary, 110 V Secondary, 6 A Output 123-7380

Name: RS PRO 1 Site Transformer 1.5 kVA, 230 V ac Primary, 110 V Secondary, 6 A Output 123-7380
Brand: RS PRO
SKU: 193557
Price: 411.41 USD
Availability: InStock



Category Transformers Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Brand	RS PRO
Length	220mm
Model	123-7380
Depth	223mm
Width	152mm
Mount Type	Wall
Output Current	6A
Electrical Phase	1
Primary Voltage	230 V ac
Secondary Voltage	110 V
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Intermittent rating	3.3kVA at maximum operating load with duty cycle 5 minutes on/15 minutes off
Continuous Rating	1.65kVA

Key Features

Single-phase electrical transformer designed for safe power distribution.
Outputs 6 A current with a continuous rating of 1.65 kVA.
Equipped with robust IP22-rated steel enclosure for protection against water spray and finger access.
Wall mountable with pre-cut screw holes and mounting flanges for easy installation.
Compliant with BS EN 61558 and RoHS Directive 2011/65/EU safety standards.
Ideal for industrial, commercial, building sites, garages, and factory electrical applications.

Product Description

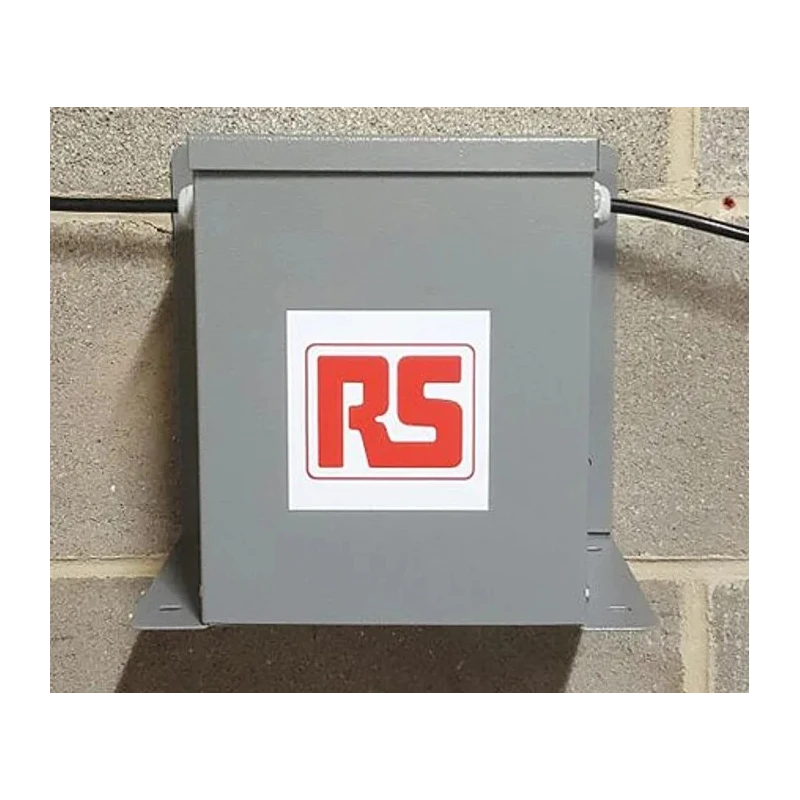

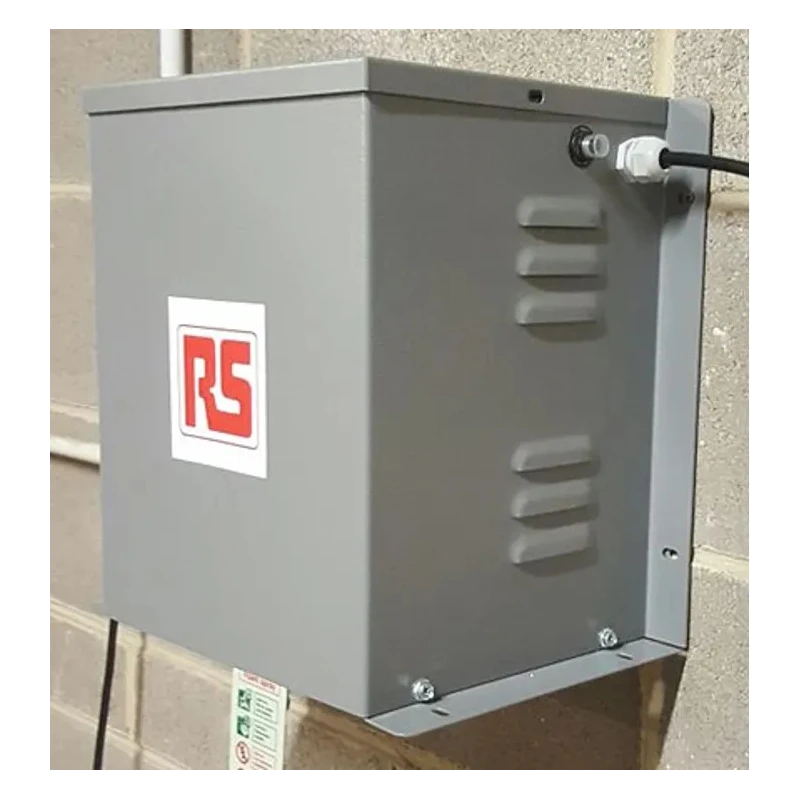

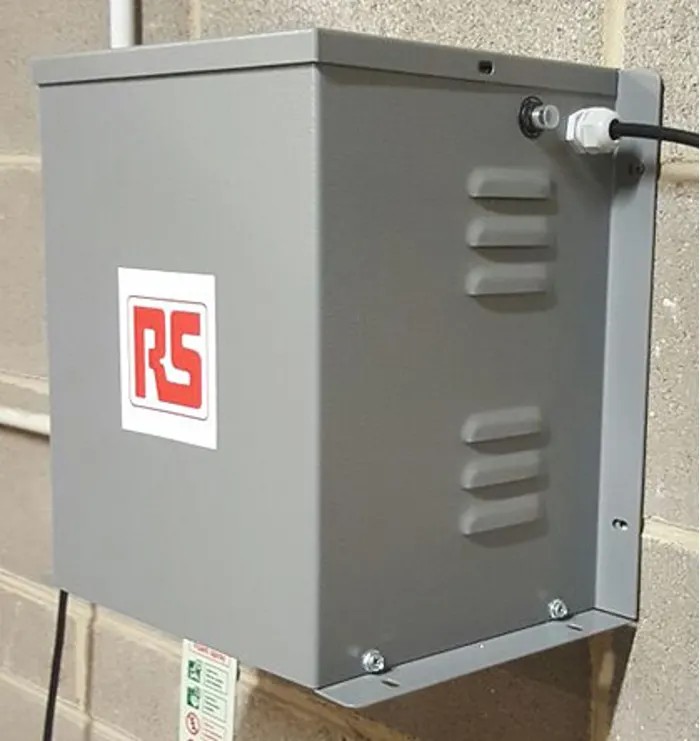

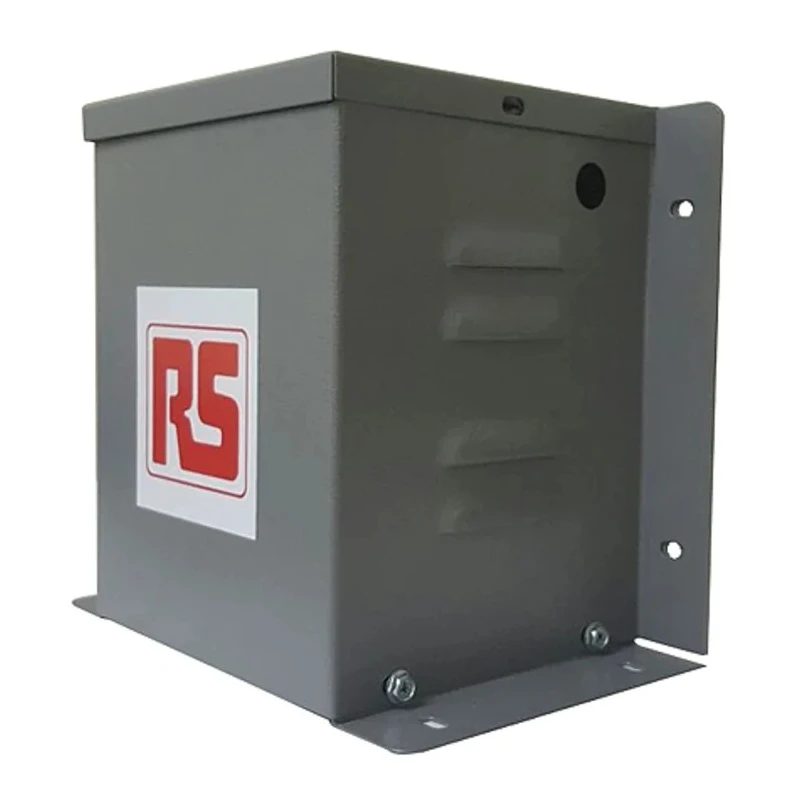

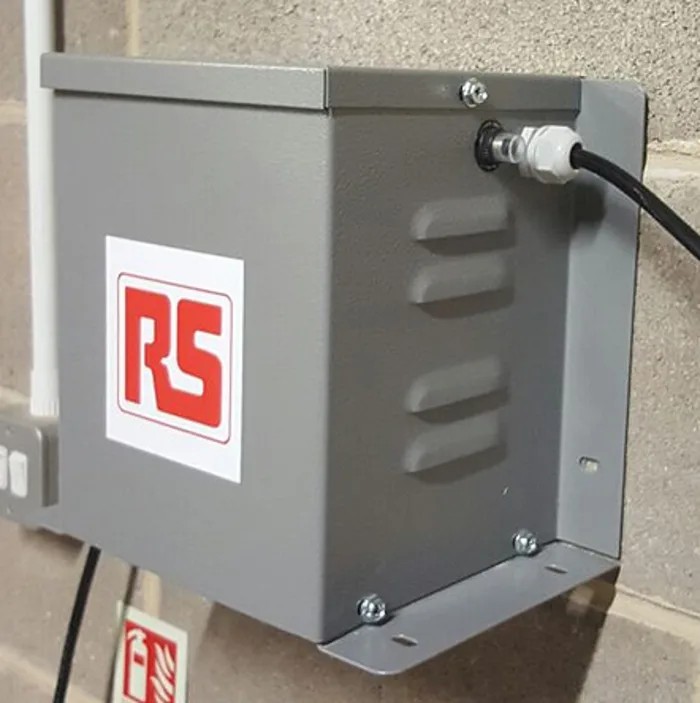

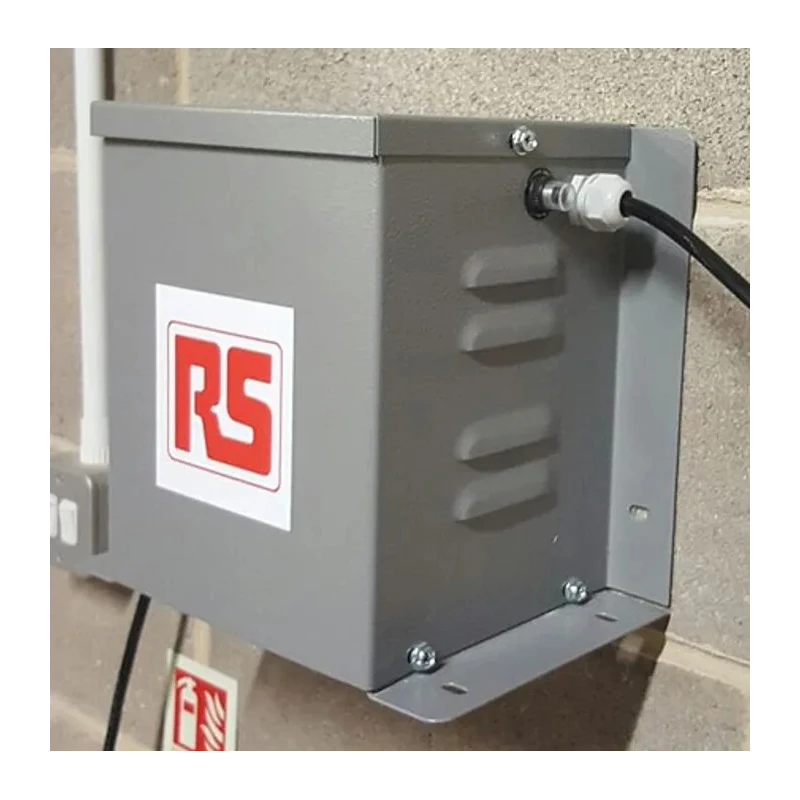

RS PRO 123-7380 is a high-quality 1 Site Transformer delivering 1.5 kVA power with a primary voltage of 230 V ac and secondary voltage of 110 V. This single-phase transformer is engineered to provide safe and reliable electrical distribution, primarily protecting power tools and equipment from electrical faults and overloads.

The unit features a durable IP22-rated steel enclosure that safeguards against accidental finger contact and water spray, enhancing workplace safety in diverse environments such as construction sites, industrial plants, and workshops. The enclosure's gray finish and integrated mounting flanges with pre-cut holes enable straightforward wall mounting for versatile installation options.

Designed to meet rigorous safety and quality standards, the transformer is compliant with BS EN 61558, BS EN 61558-20-23, BS EN 60529, and RoHS Directive 2011/65/EU. It operates between a minimum frequency of 50 Hz and a maximum of 60 Hz, supporting continuous and intermittent loads with ratings of 1.65 kVA and 3.3 kVA (5 minutes on / 15 minutes off duty cycle), respectively.

The transformer outputs a current of 6 A and features dimensions of 220 mm length, 152 mm width, and 223 mm depth, making it compact yet efficient for diverse electrical distribution requirements. Manufactured in the United Kingdom, this RS PRO model guarantees consistent performance and longevity backed by professional engineering.

Single-phase transformer with 230 V ac primary and 110 V secondary voltage. Compact IP22-rated steel enclosure for protection against touch and water spray. Wall mountable design with mounting flanges and pre-cut holes. Meets BS EN 61558 and RoHS Directive 2011/65/EU safety standards.

Continuous rating of 1.65 kVA and intermittent rating of 3.3 kVA with 5 on/15 off duty cycle. Dimensions: 220 mm (L) x 152 mm (W) x 223 mm (D). Manufactured in the United Kingdom for quality assurance.

This RS PRO Site Transformer is suitable for use in industrial, construction, manufacturing, and commercial electrical distribution systems. It ensures reliable power supply and protection for power tools and equipment, maintaining safety and compliance across various applications.
