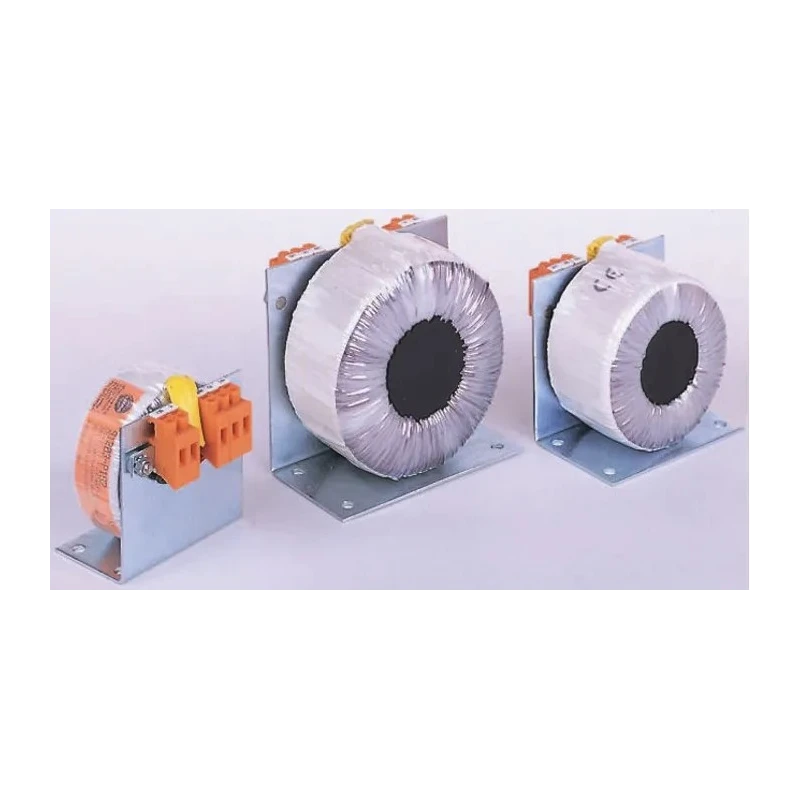

Nuvotem Talema 400 V ac ±12 V ac Toroidal Transformer 1 Output 75 VA SFB0075-230-12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nuvotem Talema |
| Height | 83mm |
| Model | SFB0075-230-12 |
| Gross Weight | 950g |
| Mount Type | Chassis |
| Termination Type | Screw |
| Maximum Operating Temperature | 180°C |
| Secondary current | 3.125A |
| Number of outputs | 1 |
| Winding Type | Centre Tapped |
| Standards/Approvals | EN60065 Class II (IEC65), VDE0470 Part 1, VDE0106 Part 100, VBG 4, BS415 Class II, VDE0551 Class II, VDE0550 Class II, EN60742 Class II, EN60950 Class II |
| Primary Voltage | 400 V ac |
| Secondary Voltage | ±12 V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Toroid Centre | 66 mm x 30 mm |
Key Features
- Primary voltage rating is 400 V ac for reliable performance.
- Secondary voltage output is ±12 V ac with a current capacity of 3.125 A.
- Constructed with centre tapped winding for enhanced application flexibility.
- Compact chassis mount design with height of 83 mm for easy installation.
- Operates within a temperature range up to 180°C, ensuring durability and safety.
- Termination via screw type terminals with permanent markings for secure connections.
- Complies with multiple safety and quality standards including EN60065 Class II and VDE approvals.
- Designed with low radiated magnetic field and very low induced noise for sensitive electronics.
Product Description
Nuvotem Talema SFB0075-230-12 Toroidal Transformer is a high-quality, compact isolating transformer designed specifically for control circuits and general purpose electrical applications. It features a primary voltage rating of 400 V ac and a secondary output voltage of ±12 V ac, providing 1 output through a centre tapped winding configuration.
This transformer is mounted on a durable zinc-plated steel chassis bracket, measuring 83 mm in height, making it easy to install in tight spaces while ensuring firm placement. Weighing 950 grams, it is a lightweight yet robust solution suitable for diverse environments.
It supports a current output of 3.125 A and is rated for operation at frequencies from 50 Hz to 60 Hz, accommodating standard industrial power conditions. The maximum operating temperature is 180°C, ensuring reliable performance even under elevated temperatures.
Connection is facilitated through shrouded screw terminals that include permanent markings to ensure correct wiring and maintenance convenience. The design also minimizes electromagnetic interference with a low radiated magnetic field and very low induced noise, making it suitable for sensitive electronic equipment.
The product complies with multiple international standards and certifications such as EN60065 Class II (IEC65), VDE 0470 Part 1, VDE 0106 Part 100, VBG 4, BS415 Class II, VDE0551 Class II, VDE0550 Class II, EN60742 Class II, and EN60950 Class II, highlighting its safety and quality assurance for professional use.
Primary voltage rating is 400 V ac. Secondary voltage is ±12 V ac with 3.125 A output current. Centre tapped winding type enhances circuit flexibility. Compact chassis mount design with height of 83 mm. Operates up to 180°C maximum temperature.
Screw termination with permanent marking for secure wiring. Low radiated magnetic field and minimal induced noise. Weight of 950 g for ease of handling. Supports operating frequency range 50 Hz to 60 Hz. Meets multiple international safety and performance standards.
This Toroidal Transformer is ideal for industrial, manufacturing, HVAC, and commercial electrical power supply applications requiring reliable and low-noise power isolation. Explore more high-quality transformers and related products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary voltage rating of this transformer is 400 V ac.
The secondary voltage output is ±12 V ac with a current capacity of 3.125 A.
It operates at a maximum temperature of 180°C.
This transformer features a centre tapped winding type, which enhances application flexibility.
The transformer has a height of 83 mm and weighs 950 grams.
It uses screw type terminals with permanent markings for secure connections.
It supports an operating frequency range of 50 Hz to 60 Hz.
It complies with multiple standards including EN60065 Class II, VDE 0470 Part 1, and EN60950 Class II.
It features a chassis mount design, making it suitable for installation in tight spaces.
This model is suitable for control circuits and general purpose electrical applications.
The transformer is designed with a low radiated magnetic field and very low induced noise, making it suitable for sensitive electronics.
It provides 1 output through its centre tapped winding configuration.
