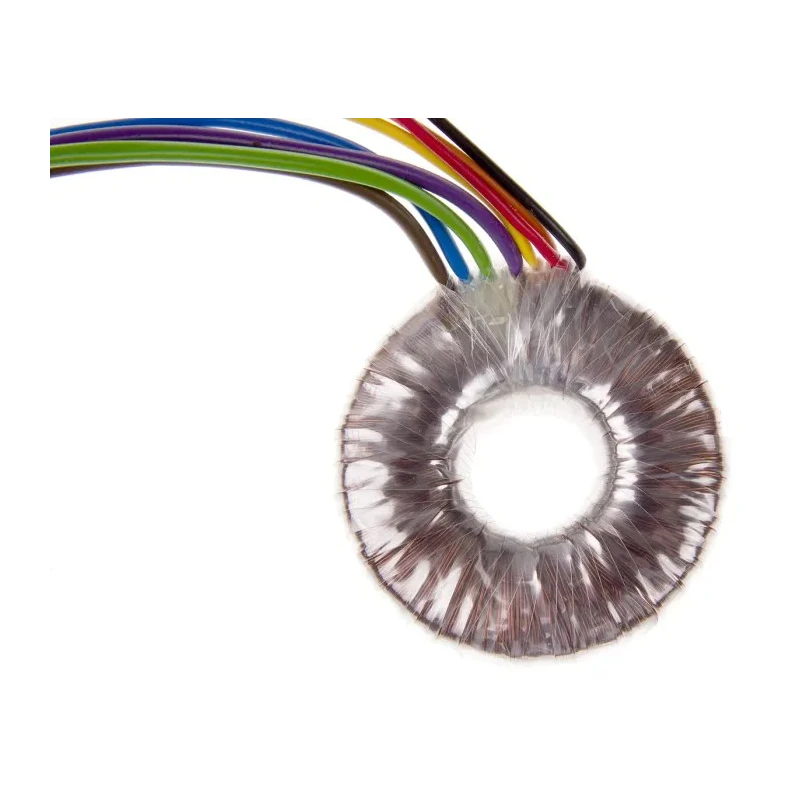

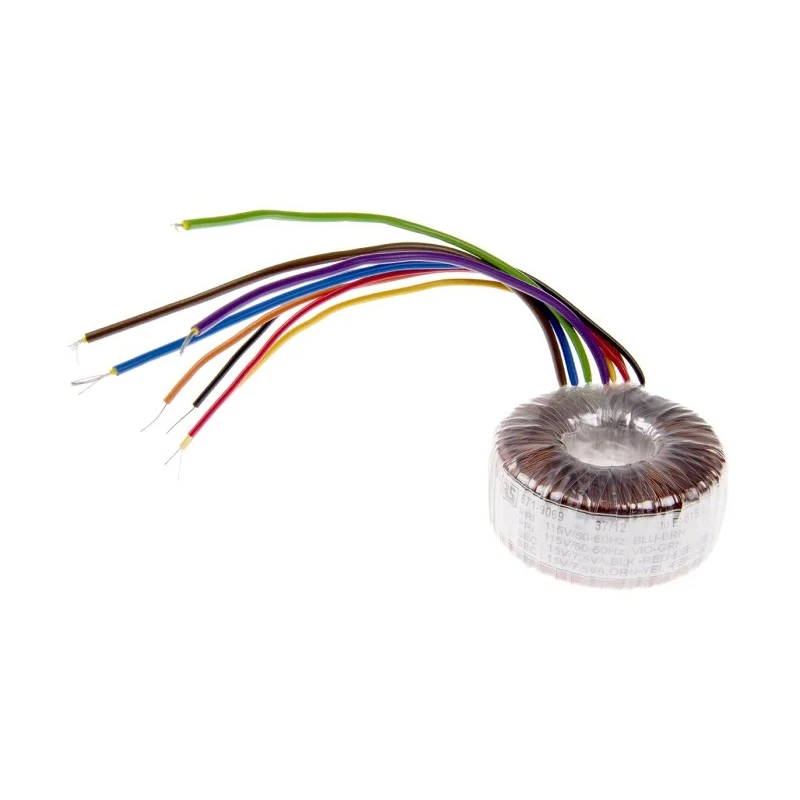

RS PRO Toroidal Transformer 230 V AC Primary 2 x 15 V AC Secondary 500mA 15 VA Dual Output Model 671-9069

RS PRO 671-9069 Toroidal Transformer is a high-quality electrical component designed for efficient power transformation with dual 115 V AC primary windings and twin secondary windings delivering 2 x 15 V AC outputs at 500mA. It has a power rating of 15 VA, a compact diameter of 60 mm and a height of 31 mm, making it suitable for constrained installation spaces.

This toroidal transformer features a copper conductor termination wire ensuring secure and durable electrical connections. It operates effectively across frequencies of 50 Hz to 60 Hz and offers an extremely low level of radiated magnetic field, minimizing interference in sensitive electronic circuits. The open style toroidal construction reduces iron losses and hum noise, enhancing device performance.

The dual secondary windings provide flexibility by allowing connections in series or parallel or usage independently according to specific power requirements. It includes double insulated primary leads to improve safety and electrical isolation.

Due to its small size and low weight compared to traditional transformers, it is ideal for use in electronic components, power supplies, and other industrial applications demanding reliable and low-noise voltage transformation.

High quality toroidal transformer with dual 115 V AC primary windings. Provides low magnetic field interference and reduced hum noise. Compact and lightweight design with a diameter of 60 mm and height of 31 mm. Copper conductor termination wire for reliable connections.

Operates efficiently between 50 Hz and 60 Hz frequencies. Dual secondary windings can be used independently or connected in series or parallel. Ideal for electronic and power supply applications requiring 15 VA rating. Double insulated primary leads enhance safety in operation.

Please note mounting hardware is not included and must be sourced separately. Under no circumstances should mounting bolt ends simultaneously contact the metal chassis to avoid shorted-turn risks.

This RS PRO Toroidal Transformer is suited for electronics manufacturing, industrial power supplies, laboratory setups, and HVAC electrical components requiring reliable voltage conversion with minimal interference.
