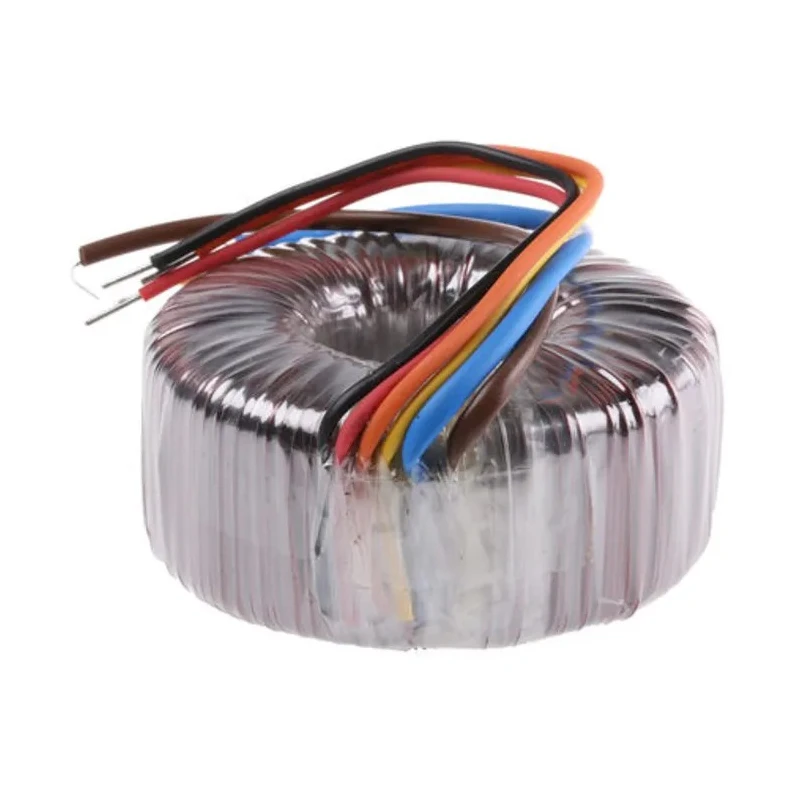

RS PRO 230 V ac 2 x 12 V ac Toroidal Transformer 2 Output 120 VA, UL 506, IEC 61558 Class II 671-8996

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 230 V ac 2 x 12 V ac Toroidal Transformer 2 Output 120 VA, UL 506, IEC 61558 Class II 671-8996

Name: RS PRO 230 V ac 2 x 12 V ac Toroidal Transformer 2 Output 120 VA, UL 506, IEC 61558 Class II 671-8996
Brand: RS PRO
SKU: 425250
Price: 92.24 USD
Availability: InStock



Category Toroidal Transformer Brand RS PRO Condition New

Specifications

Country of Origin	India
Diameter	96mm
Brand	RS PRO
Height	48mm
Model	671-8996
Gross Weight	1.37kg
Termination Type	Copper Conductor
Secondary current	5A
Number of outputs	2
Standards/Approvals	UL 506, IEC 61558 Class II, RoHS, VDE0570 Class II, EN 61558 Class II
Primary Voltage	230 V ac
Secondary Voltage	2 x 12 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Compact and lightweight design optimizes space and reduces installation costs.
High electrical isolation with double insulated primary leads ensures safety.
Operates at a maximum frequency of 60 Hz for versatile applications.
Constructed with copper conductor terminations for reliable connectivity.
Complies with UL 506, IEC 61558 Class II, RoHS, and VDE0570 standards.
Suitable for audio equipment, medical devices, telecommunications, industrial control systems, and power supplies.
Features two outputs each providing 12 V ac with a secondary current of 5 A.

Product Description

RS PRO 671-8996 Toroidal Transformer is a high-performance electrical transformer designed for industrial, commercial, and sensitive electronic applications. It operates with a primary voltage of 230 V ac and two secondary outputs each delivering 12 V ac at 5 A current. This transformer offers a power rating of 120 VA and complies with key international safety and efficiency standards including UL 506 and IEC 61558 Class II.

The toroidal core construction improves magnetic flux distribution reducing energy losses and audible noise, making it ideal for use in audio equipment, medical devices, telecommunications infrastructure, industrial control systems, and various power supply configurations. Its compact 96 mm diameter and 48 mm height combine with a lightweight 1.37 kg build that simplifies installation and integration into existing systems.

Additional performance features include double insulated primary leads for enhanced safety and copper conductor terminations for durable electrical connections. The transformer supports a minimum operating frequency of 50 Hz up to a maximum of 60 Hz. The product meets RoHS and VDE0570 Class II compliance, ensuring environmentally responsible and safe usage.

The transformer is engineered for applications requiring low electromagnetic interference (EMI) and minimal audible noise, preserving the integrity of sensitive electronic devices. Its robust standards compliance and reliable power conversion capability make it a trusted choice for both professional and industrial use cases.

Compact and lightweight design for space-saving installation. Low electromagnetic interference for sensitive electronics. High electrical isolation with double insulated primary leads. Operates efficiently up to 60 Hz maximum frequency.

Copper conductor terminations provide stable connections. Certified to UL 506, IEC 61558 Class II, RoHS, and VDE0570 standards. Ideal for audio, medical, telecom, and industrial control systems.

This RS PRO Toroidal Transformer 671-8996 is a reliable component to enhance your electronic system’s performance. Explore more transformers and power supply solutions in our electronics category to find compatible components for your projects.
