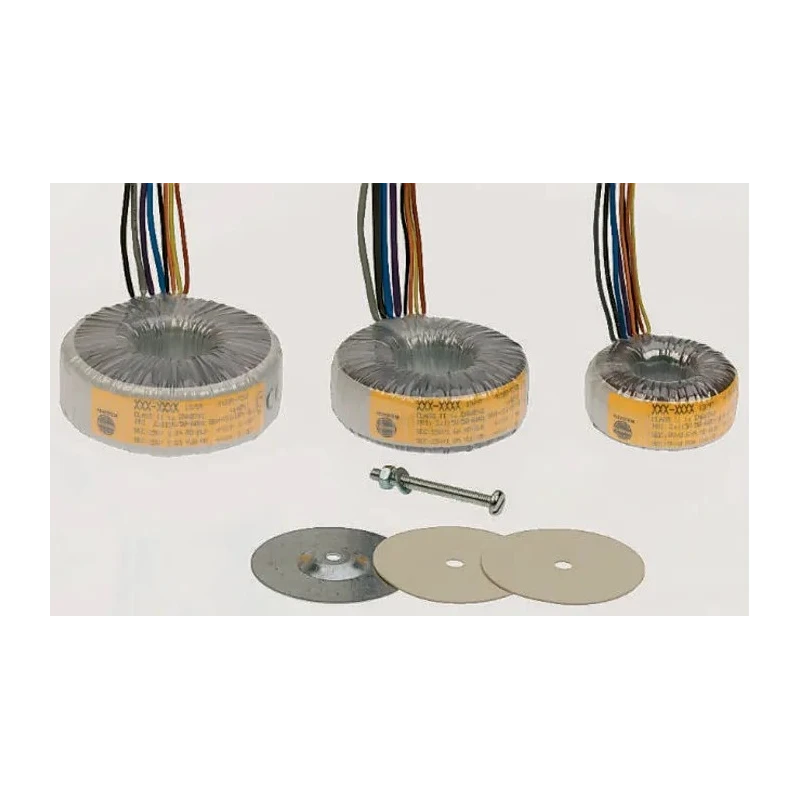

Nuvotem Talema Toroidal Transformer 230 V ac 2 x 25 V ac 2 Output 30 VA RoHS 91945-P2S2

Nuvotem Talema 91945-P2S2 Toroidal Transformer is designed for efficient power conversion with a 230 V ac single primary input and dual 25 V ac secondary outputs, rated at 30 VA. Its toroidal core provides superior magnetic properties, resulting in extremely low radiated magnetic fields and minimal noise making it ideal for sensitive electronic applications.

This transformer features a compact form factor with a diameter of 70 mm and height of 32 mm, making it suitable for use in limited space environments. It supports operating frequencies between 50 Hz and 60 Hz, suitable for standard power line applications.

The device is constructed with high-quality materials ensuring low iron losses and includes lead terminations for easy wiring. The unit is rated for a maximum operating temperature of 40°C, allowing for reliable performance under typical ambient conditions.

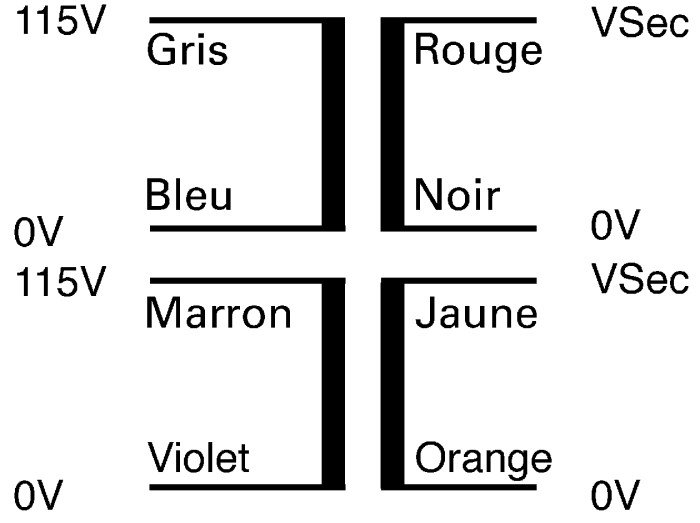

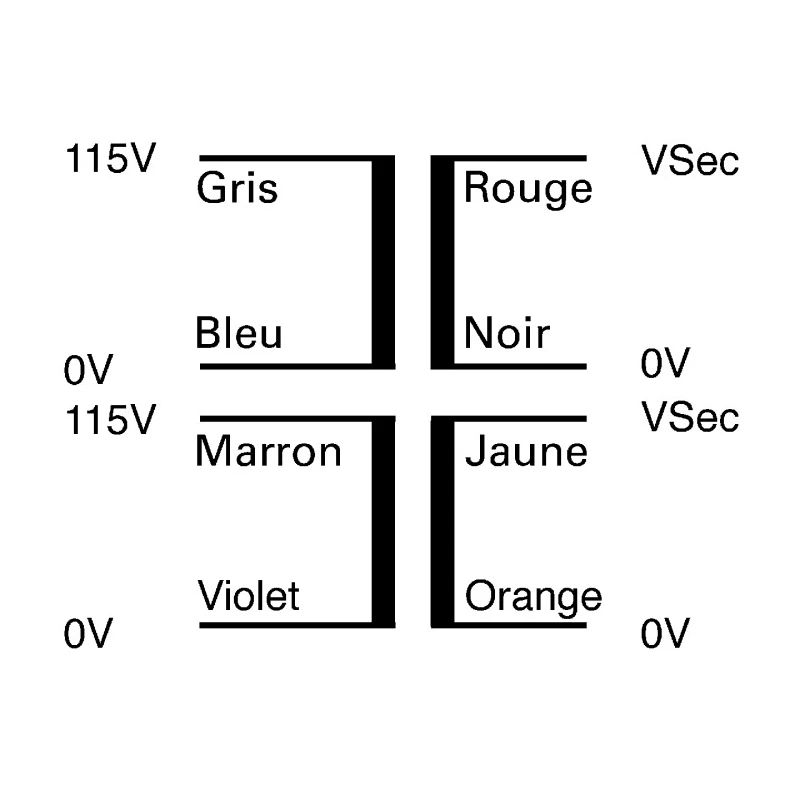

It includes a single primary winding that can be connected for 115 V or 230 V operation, and twin secondary windings that may be utilized independently or connected in series/parallel as required. This flexibility offers versatility in various electronic and industrial setups.

The transformer meets RoHS compliance standards, emphasizing its environmental safety. It also conforms to international standards EN61558, EN60950, EN60065, BS415, and has approvals such as UL506 and EN61558, ensuring quality and safety assurance.

Operates with a primary voltage of 230 V ac. Dual 25 V ac secondary voltage outputs, 2 in number. 30 VA power rating suitable for electronic components. Compact design: 70 mm diameter, 32 mm height. Lead type termination for secure connections.

Operation frequency from 50 Hz to 60 Hz. Maximum operating temperature of 40°C for safety. Single primary winding and open toroid center. RoHS compliant and supplied with full mounting hardware. Fully tested for electrical and flash safety standards.

This Toroidal Transformer is ideal for electronics, industrial control, power supplies, and HVAC applications where low noise, high efficiency, and compact design are critical. Its compliance with multiple international standards ensures reliability and safety. For further exploration, browse related transformers and power supply components on EnvMart.
