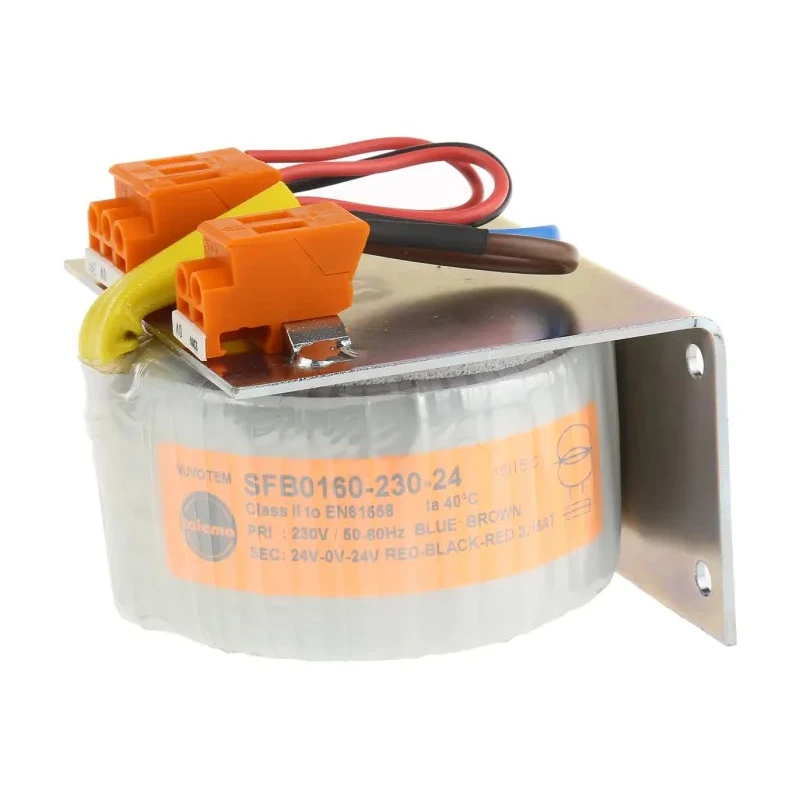

Nuvotem Talema 230 V ac ±24 V ac Toroidal Transformer 160 VA 1 Output SFB0160-230-24

Nuvotem Talema SFB0160-230-24 Toroidal Transformer 160 VA 1 Output is a high quality toroidal isolating transformer engineered for use in control circuits and general purpose electronic applications. It provides reliable voltage transformation with low radiated magnetic fields and minimal induced noise (hum).

This transformer operates with a primary voltage of 230 V ac and provides a secondary voltage of ±24 V ac output at a rated current of 3.333 A. It conforms to several stringent standards including BS415 Class II, VDE0551 Class II, VDE0550 Class II, EN60950 Class II, EN60065 Class II (IEC65), and EN60742 Class II, ensuring safe and durable operation in industrial environments.

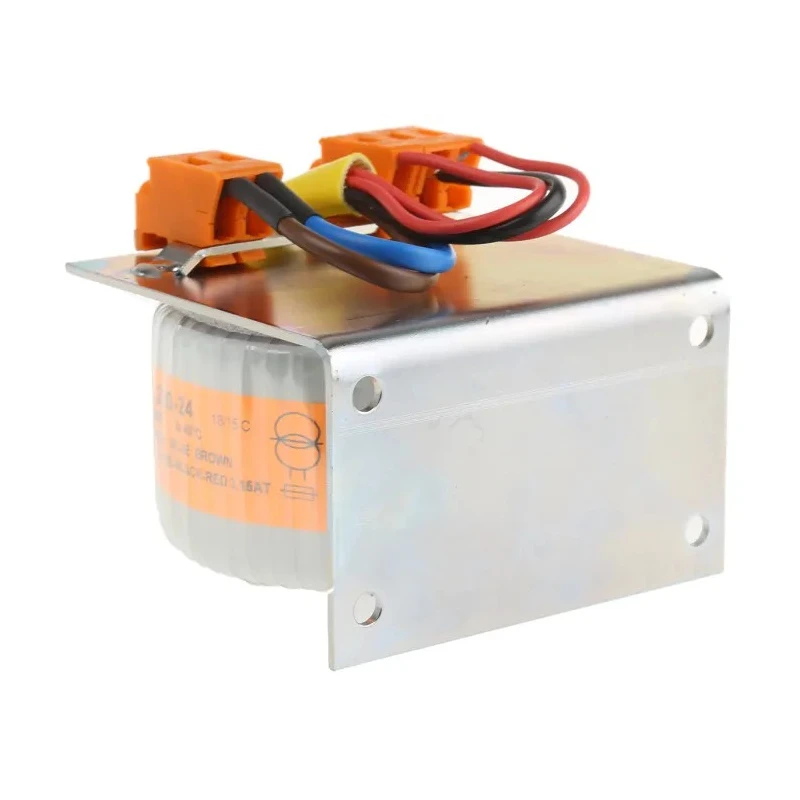

The robust chassis mounting type with fully shrouded screw terminals simplifies installation while providing secure electrical connections. The centre tapped winding design enhances current stability and control. The unit's toroid core has a centre dimension of 80 x 39 mm and compact height of 99 mm, making it suitable for installations where space is limited.

Designed for a frequency range of 50 Hz to 60 Hz, this transformer can be applied in a variety of control panel applications. It is capable of operating continuously within a temperature range from 105°C minimum to a maximum of 180°C, which supports high-performance applications in challenging environments.

Low noise induction and limited magnetic field emissions reduce interference in sensitive electronic circuits. Manufactured with premium materials and tested to international standards, this toroidal transformer assures long term reliability and superior performance.

This transformer operates at a primary voltage of 230 V ac and secondary voltage of ±24 V ac. It features one output with a secondary current capacity of 3.333 A. Meets BS415 Class II, VDE0551 Class II, and VDE0550 Class II standards for safety and performance.

Chassis mount design with screw termination ensures easy mounting and wiring. Toroid centre dimensions are 80 x 39 mm with a compact height of 99 mm. Operating frequency range is from 50 Hz to 60 Hz. Capable of operating between 105°C and 180°C for demanding environments.

Centre tapped winding enhances current stability and output quality. Low radiated magnetic field and very low induced noise minimize interference.

This transformer is ideal for industrial, manufacturing, and electronic control panel applications requiring efficient voltage isolation and conversion. It is manufactured to deliver consistent, safe, and efficient power transformation suited to modern electronic power supply needs.
