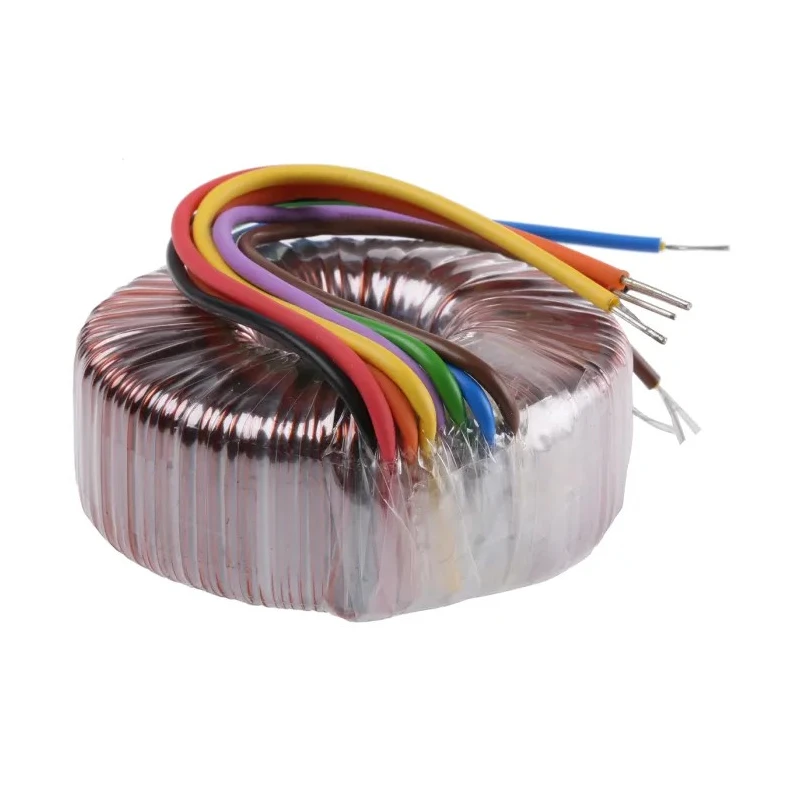

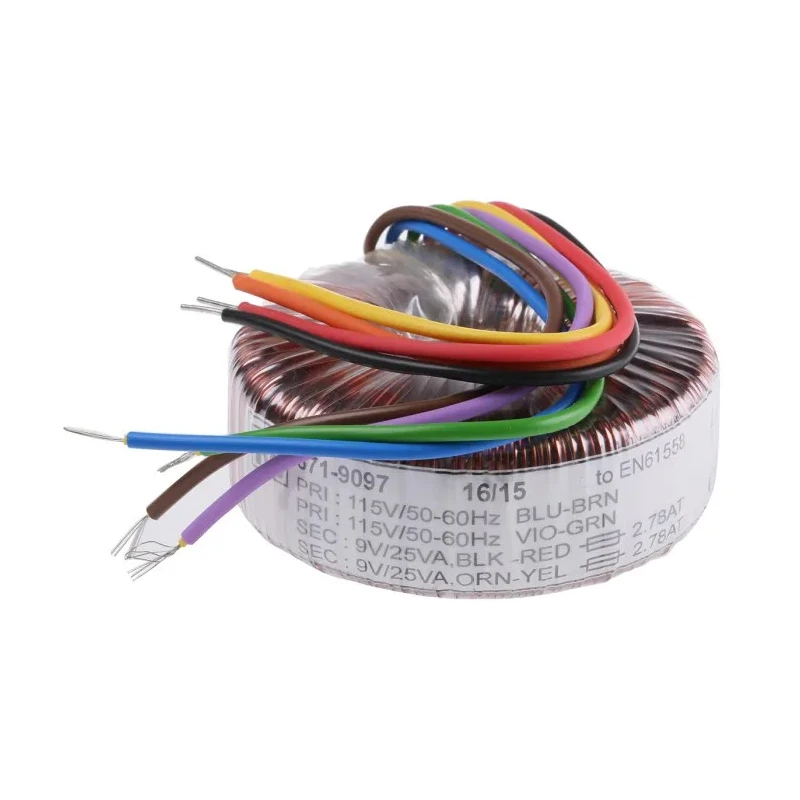

RS PRO 230 V ac 2 x 9 V ac Toroidal Transformer 2 Output 50 VA 671-9097

RS PRO 671-9097 Toroidal Transformer is a high-quality open wound toroidal transformer designed for various industrial and electronic power supply applications. It features dual 115 V ac primary windings and twin secondary windings delivering 2 x 9 V ac outputs, with a power capacity of 50 VA. Its versatile secondary connections allow use independently or combined in series or parallel configurations.

This transformer has a compact size with an 80 mm diameter and 33 mm height while weighing only 740 grams, making it an excellent choice where space and weight are critical factors.

Constructed to produce an extremely low level of radiated magnetic field and minimal acoustic hum, it provides clean power conduction suitable for sensitive electronic circuits. The copper conductor termination wires facilitate durable and solid electrical connectivity.

The operating frequency range of 50 Hz to 60 Hz allows its use in standard power systems. Its double insulated primary leads provide a safer installation environment, reducing the risk of electrical faults.

This toroidal transformer is ideal for industrial, laboratory, electronic, and power supply uses. It supports constructions requiring reliable, low-noise transformers with efficient power transfer.

High quality open style Toroidal Transformer with dual 115 V ac primary windings for flexible connection. Two independent secondary windings capable of series or parallel configuration. Compact 80 mm diameter and 33 mm height design with low weight of 740 g.

Extremely low radiated magnetic field and hum due to toroidal construction. Copper conductor termination wires ensure reliable electrical connections. Operates efficiently at frequencies between 50 Hz and 60 Hz. Provides 50 VA power capacity with a secondary current rating of 2.778 A.

Double insulated primary leads for enhanced safety during use. Ideal for electronic, power supply, and transformer applications requiring quiet and efficient power handling. Explore more electronics and transformer products at EnvMart for your industrial and laboratory equipment needs.
