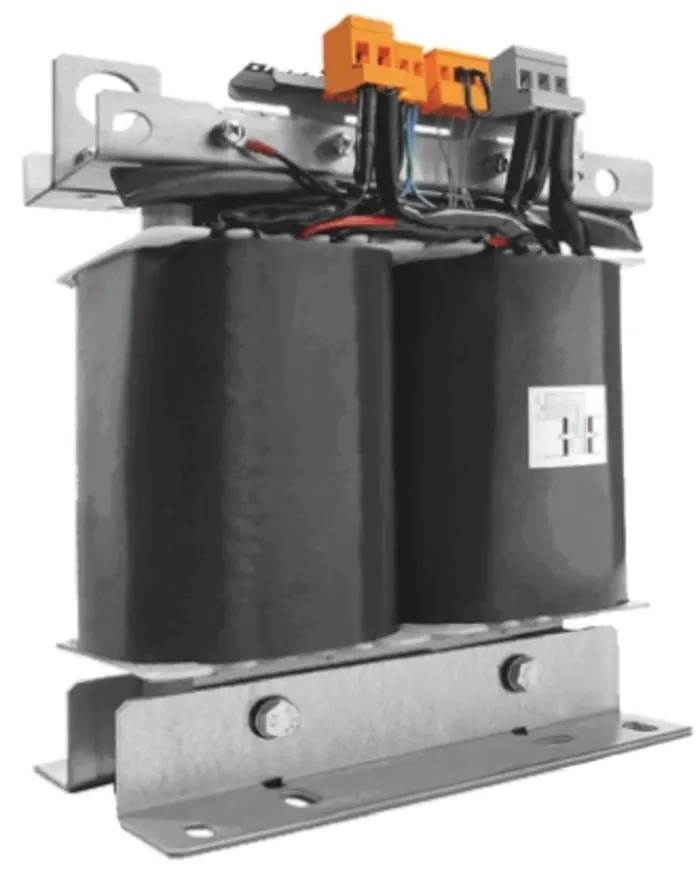

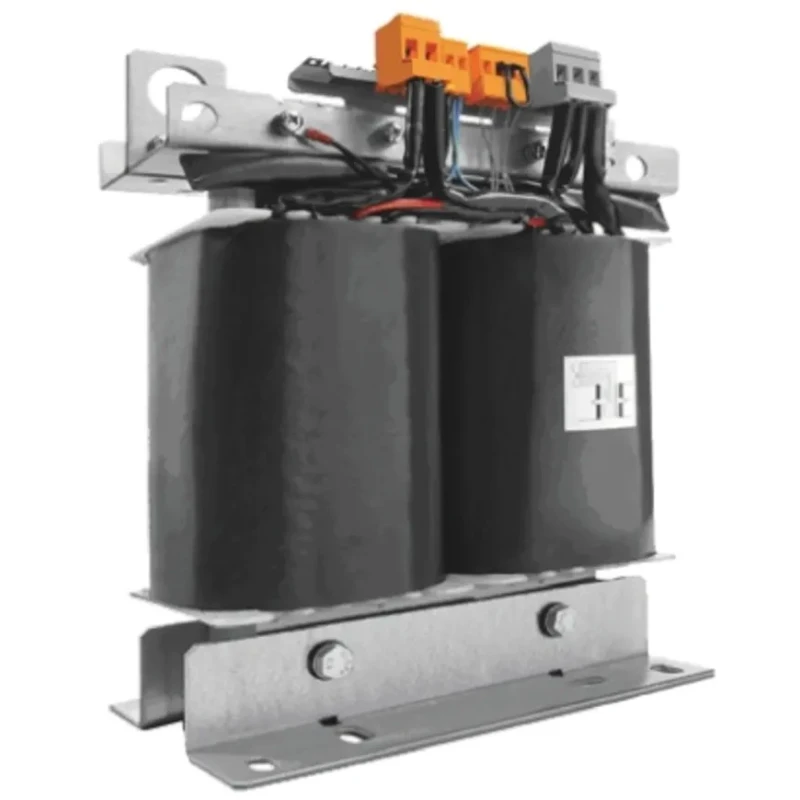

Block 1 Output 4 kVA Chassis Mount Transformer 230 V ac Primary, 115 V and 230 V ac Secondary, EN 61558-2-15 TTMS 4000/230

Block TTMS 4000/230 is a high-reliability chassis mount transformer designed for industrial and medical applications requiring galvanic isolation and dual voltage outputs. The isolation transformer supports a primary voltage of 230 V ac and provides two secondary voltage outputs at 115 V and 230 V ac, delivering 4 kVA power capacity suitable for diverse power supply needs.

The device incorporates an integrated PTC resistor within each coil to safeguard against overload situations and enable external monitoring. Enhanced vacuum impregnation manufacturing techniques reduce noise and provide strong corrosion protection for extended equipment life. Operating efficiently at 97% with low idle currents, this transformer supports stable performance over a frequency range of 50 to 60 Hz and temperatures up to 40°C ambient.

By complying with international standards EN 61558-2-15, VDE 0100 Part 710, and VDE 0570 Part 2-15, the unit ensures electrical safety and robustness. Its B-class insulation and vacuum impregnation make it suitable for demanding environments. The chassis mount design includes a sturdy metal fixing rail with eight oval slots facilitating straightforward installation.

Block TTMS Series transformers are especially designed for medical room user group 2 power supply, where low noise and reliable isolation are critical. Manufactured in Germany, these transformers represent precision engineering with compliance to rigorous quality standards.

Designed for safe galvanic isolation with IP00 protection. Efficient operation with 97% efficiency and low noise from vacuum impregnation. Protected against overload by integrated PTC resistor in each coil. Complies with EN 61558-2-15 and VDE safety standards.

Robust metal fixing rail with eight oval slots for easy chassis mounting. Suitable for medical user group 2 room power supply applications. Stable operation between 50 Hz minimum and 60 Hz maximum frequency. Insulation class B for reliable performance in industrial environments.

Maximum ambient operating temperature up to 40°C. Manufactured in Germany ensuring premium quality and standards.

This chassis mount transformer is ideal for industrial, medical, and equipment power supply applications requiring robust galvanic isolation and stable dual voltage outputs. Explore our extensive range of transformers and power supply solutions for your project needs at EnvMart.
