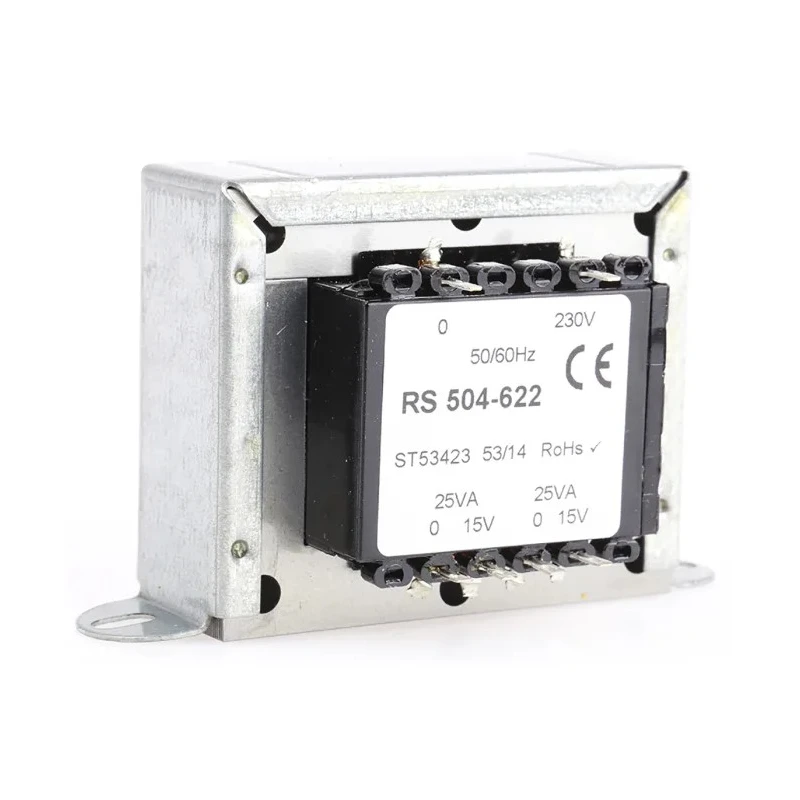

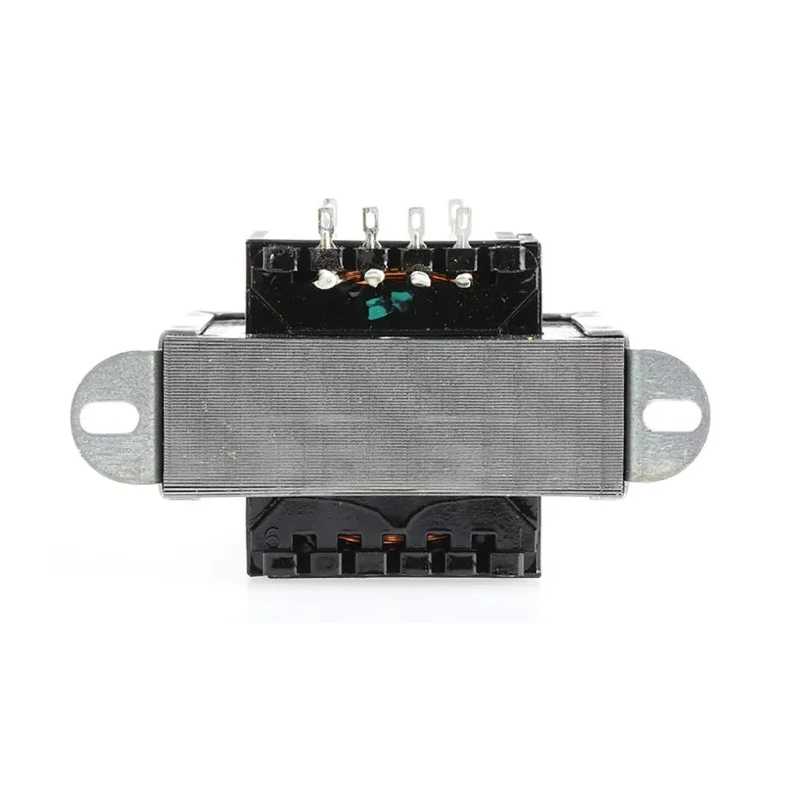

Walsall Transformers RS PRO 50 VA 2 Output Chassis Mount Transformer, 230 V AC Primary, 15 V AC Secondary, Model 504-622

Walsall Transformers model 504-622 is a robust chassis mount transformer offering a power rating of 50 VA. It operates at a primary input voltage of 230 V AC and provides two secondary outputs each delivering 15 V AC. This dual output design allows the outputs to be connected in series or parallel, enabling versatile applications and circuit designs.

The transformer features fully shrouded bobbins and fully varnish impregnated coils, which enhance dielectric strength and reduce electrical interference risks, critical for sensitive electronic applications. The components are mounted on a compact chassis with two-hole fixing and wrap-over clamp installation making it ideal for industrial equipment and electronic assemblies requiring reliable voltage transformations.

Operating temperature ranges from a cold starting point of -30°C up to a maximum of 130°C, with an operating frequency bandwidth of 50 to 60 Hz, this transformer is suitable for demanding environments. It has undergone rigorous 100% electrical and flash testing in accordance with BS3535 and EN 60742 to ensure product safety and durability at high voltages.

This product meets stringent international standards including IECBSEN 615586, ASNZS 61558.6, CE marking, RoHS compliance, and IECBSEN 615581, which guarantees adherence to quality and safety requirements across industrial, laboratory, and medical applications.

The compact dimensions (length 79mm, width 62mm, depth 37.65mm) and light gross weight (210g) enable easy integration into equipment without heavy additional load. The transformer is manufactured in Poland, reflecting high European quality manufacturing standards.

This transformer has two separate secondary windings for versatility of electrical wiring configurations. The chassis mount design supports stable mechanical fixation for industrial use. Fully shrouded bobbins provide enhanced safety and electrical insulation.

The transformer is designed for use in electrical isolation applications such as test and measurement equipment and medical devices. It offers stable operation across a temperature range of -30°C to +130°C. Conforms to multiple international standards ensuring reliability and regulatory compliance.

Manufactured using high quality components with tested electrical safety.

This Walsall Transformers product is ideal for engineers and technicians seeking a dependable chassis mounting transformer solution that meets rigorous electrical and mechanical standards. Browse the Transformers & Transformer Parts category on EnvMart for additional transformer types and accessories supporting your industrial or laboratory needs.
