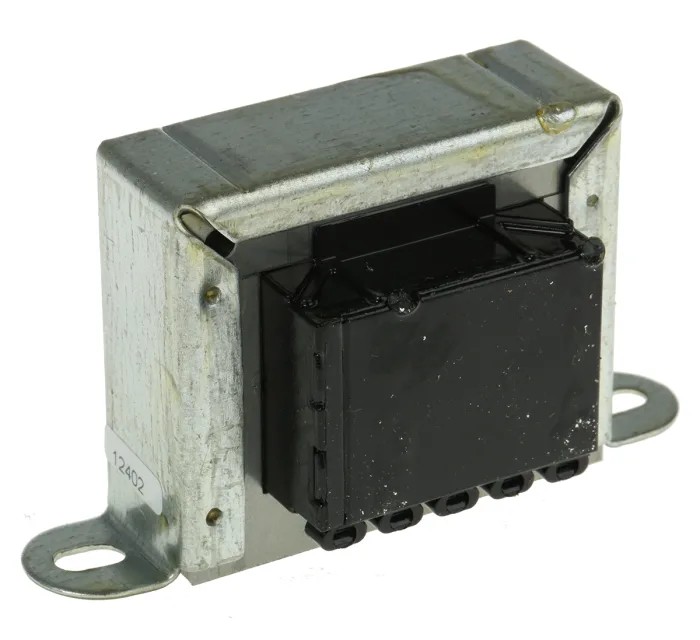

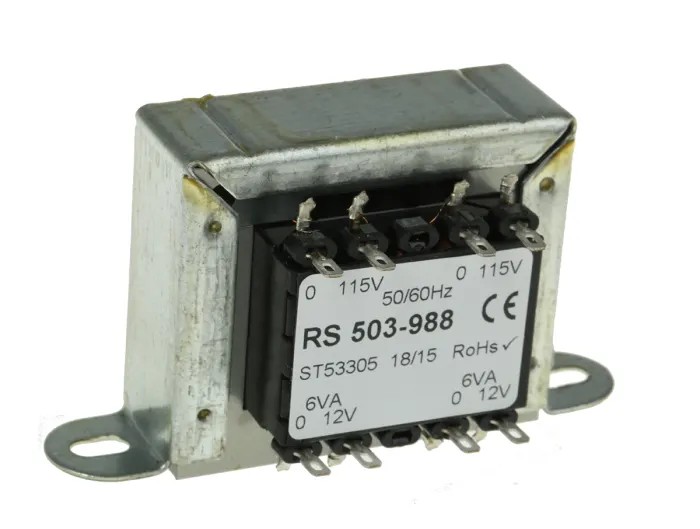

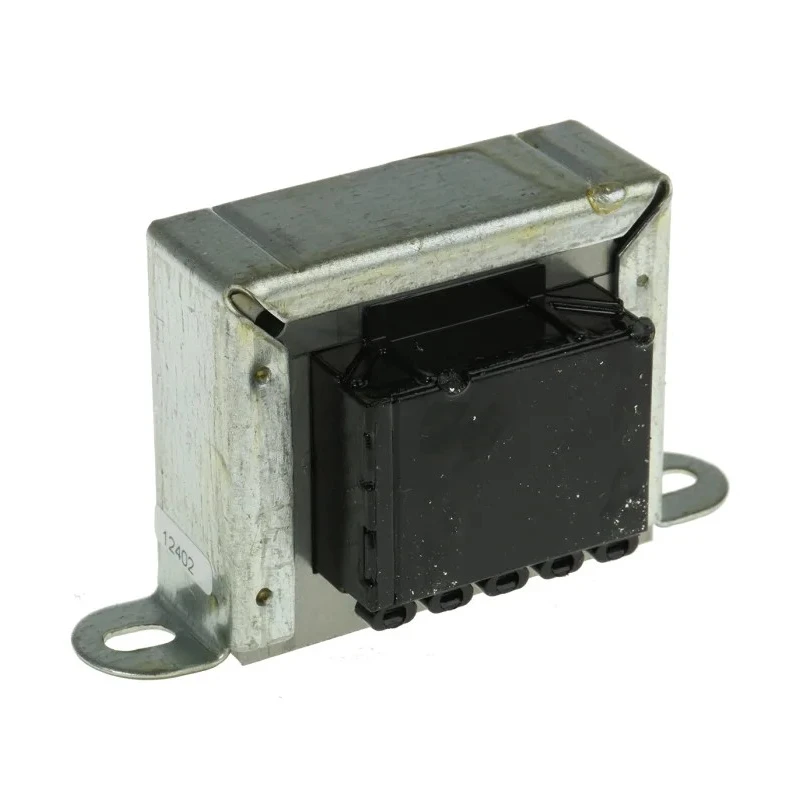

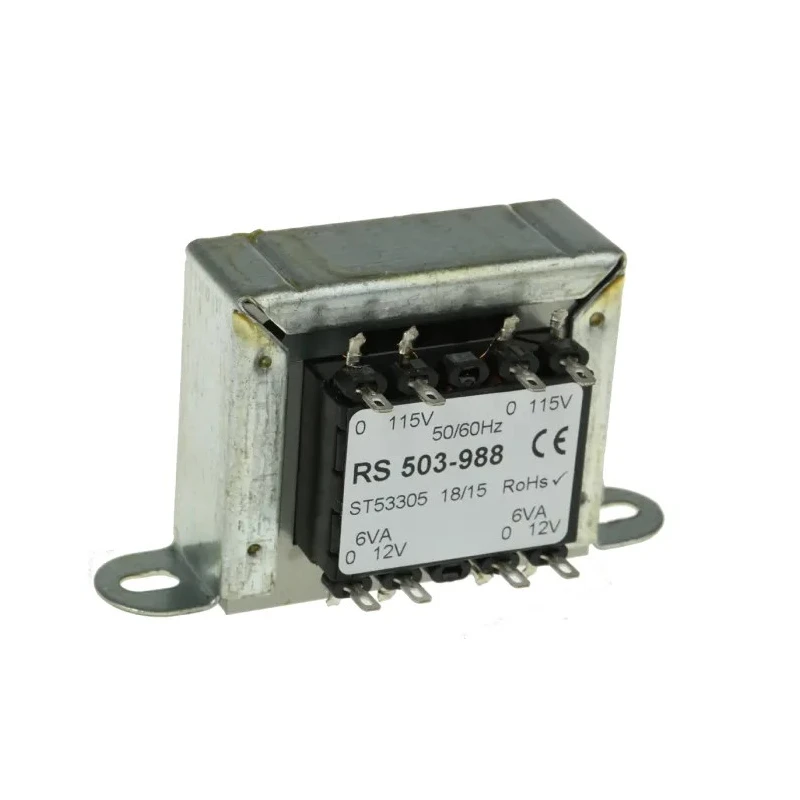

Walsall Transformers 12 VA 2 Output Chassis Mount Transformer, 12 V AC, IECBSEN 615581, RoHS, CE, ASNZS 61558.1 503-988

Walsall Transformers 503-988 12 VA 2 Output Chassis Mount Transformer is a high-quality electrical component designed for industrial and laboratory use, offering safe and efficient voltage transformation with dual 12 V AC outputs. Rated at 12 VA power and 115 V AC primary input, it allows connection options for secondary windings in series or parallel to meet application needs.

The transformer features double-section bobbins fully shrouded to prevent electrical interference and varnish-impregnated coils enhancing dielectric strength. Its robust chassis mount design includes clamp mounting with two holes and solder tag terminations enabling secure mechanical and electrical installation.

Operating reliably across a frequency range of 50 to 60 Hz and temperatures from -30°C to 130°C, it meets stringent international standards including IECBSEN 615581, RoHS, CE, ASNZS 61558.1, and ASNZS 61558..6. The transformer’s compact size (59 mm length, 50 mm width, 50 mm depth) and lightweight construction (approximately 1 kg) make it suitable for use in constrained spaces.

This model is ideal for various industrial and commercial applications requiring isolated voltage transformation such as electromagnetic equipment, electrical control systems for pumps, speed regulation devices, and heating element controls. Its tested quality and compliance ensure operational safety and durability.

Key features include dual output capability, clamp mounting convenience, and compliance with multiple safety and electrical standards, making it a reliable choice for demanding electrical installation environments.

This transformer supports two independent secondary windings connected in series or parallel for flexible output options. It is designed for chassis mounting with clamp fixes and solder tag terminations for secure connections.

Operating frequency ranges from 50 Hz to 60 Hz, suitable for standard electrical frequencies. Temperature tolerance spans from -30°C to 130°C for robust performance under varied conditions. Compliant with major standards including IECBSEN 615581, RoHS, CE, ASNZS 61558.1, and ASNZS 61558..6 ensuring safety and reliability.

Compact dimensions (59 mm length, 50 mm width, 50 mm depth) fit space-sensitive installations. Fully varnish impregnated coils improve dielectric strength and electrical insulation. Useful for electromagnetic and electrical control applications such as pumps, speed changers, and heating elements.
