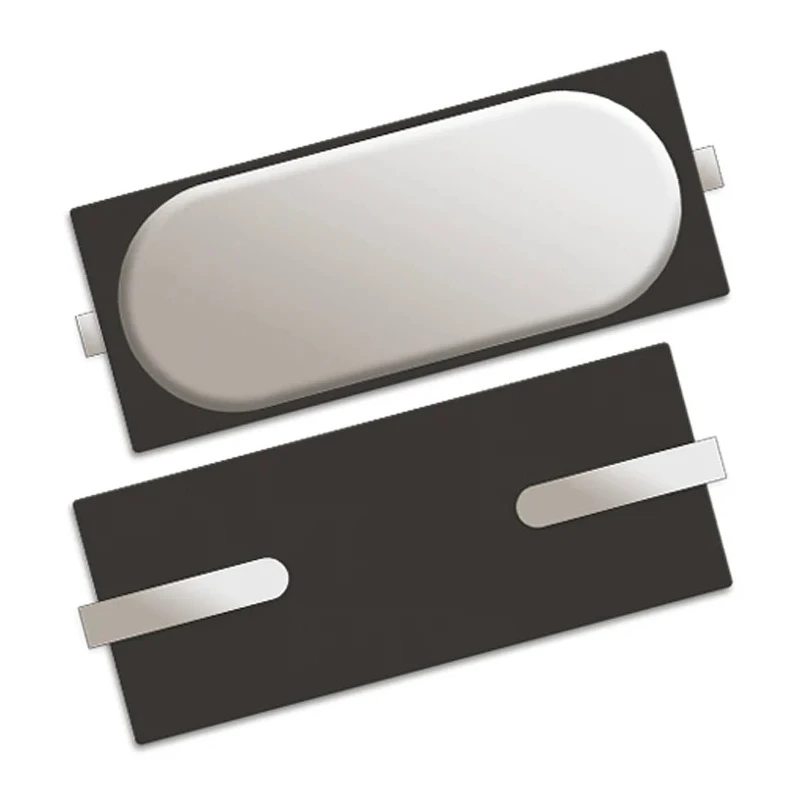

QANTEK 10 MHz Crystal ±20 ppm HC-49 2-Pin Surface Mount 18pF Load Capacitance QCS10.0000F18B23R
Specifications
| Country of Origin | China |
|---|---|
| Brand | QANTEK |
| Height | 4.4mm |
| Length | 11.4mm |
| Model | QCS10.0000F18B23R |
| Packaging | Tape & Reel |
| Width | 4.8mm |
| Mount Type | Surface |
| Series | QCS |
| Maximum Operating Temperature | 85°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 10MHz |
| Load Capacitance | 18pF |
| Series Resistance | 50Ω |
Key Features
- Standard frequency is 10 MHz offering stable oscillation.
- Surface mount type suitable for compact PCB assemblies.
- Load capacitance of 18 picofarads for accurate frequency control.
- HC-49 metal can package ensures durability and reliability.
- Two-pin configuration compatible with various electronic circuits.
- Operating temperature range from -40°C to 85°C supports wide environment use.
- Series resistance of 50 ohms for low loss crystal operation.
- Compliant with RoHS environmental standards.
Product Description
The QANTEK QCS10.0000F18B23R is a high-precision 10 MHz crystal unit designed for use in advanced electronic circuits requiring stable frequency sources. It features ±20 ppm frequency tolerance to ensure signal stability in critical timing applications and a frequency stability of ±30 ppm.
Encased in a robust HC-49 metal package with a compact footprint measuring 11.4 mm in length, 4.8 mm in width, and 4.4 mm in height, this crystal unit is tailored for surface mounting on printed circuit boards. The 2-pin configuration allows for easy installation and compatibility with standard crystal sockets and boards.
With a load capacitance of 18 pF, it guarantees correct oscillatory performance and frequency accuracy. It operates efficiently within a temperature range of -40°C to 85°C, making it suitable for industrial, commercial, and consumer electronics applications.
The series resistance of 50 ohms ensures low energy loss, maintaining signal integrity. Compliance with RoHS standards confirms its environmentally safe manufacture.
This product is supplied in tape and reel packaging to accommodate high-volume automated assembly lines, boosting production efficiency and reliability. Country of origin is China.
Standard frequency is 10 MHz offering stable oscillation. Surface mount type suitable for compact PCB assemblies. Load capacitance of 18 picofarads for accurate frequency control. HC-49 metal can package ensures durability and reliability.
Two-pin configuration compatible with various electronic circuits. Dimensions: Length 11.4 mm, Width 4.8 mm, Height 4.4 mm for easy footprint planning. Operating temperature range from -40°C to 85°C supports wide environment use.
Series resistance of 50 ohms for low loss crystal operation. Compliant with RoHS environmental standards. Packaged in tape and reel format for efficient automated assembly processing.
This crystal unit is widely used in electronic design, manufacturing, telecommunications, instrumentation, and other industrial electronic applications requiring precise frequency generation and timing control. Explore the Electronics Components category for complementary products at EnvMart.
Explore more products in our Mounting Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 10 MHz, providing stable oscillation for various electronic applications.
This model has a load capacitance of 18 picofarads, ensuring accurate frequency control during operation.
It operates efficiently within a temperature range of -40°C to 85°C, suitable for diverse environmental conditions.
The dimensions of this unit are 11.4 mm in length, 4.8 mm in width, and 4.4 mm in height, allowing for compact PCB assembly.
The series resistance is 50 ohms, which helps in maintaining low energy loss during operation.
It is supplied in tape and reel packaging, which is ideal for high-volume automated assembly lines.
This model uses a surface mount type, making it suitable for compact printed circuit board (PCB) assemblies.
This crystal unit features a 2-pin configuration, compatible with various electronic circuits.
Yes, it is compliant with RoHS environmental standards, confirming its environmentally safe manufacture.
The package type is HC-49, which is known for its durability and reliability in electronic applications.
It is widely used in electronic design, telecommunications, instrumentation, and other industrial electronic applications requiring precise frequency generation.
The frequency tolerance is ±20 ppm, ensuring signal stability in critical timing applications.
