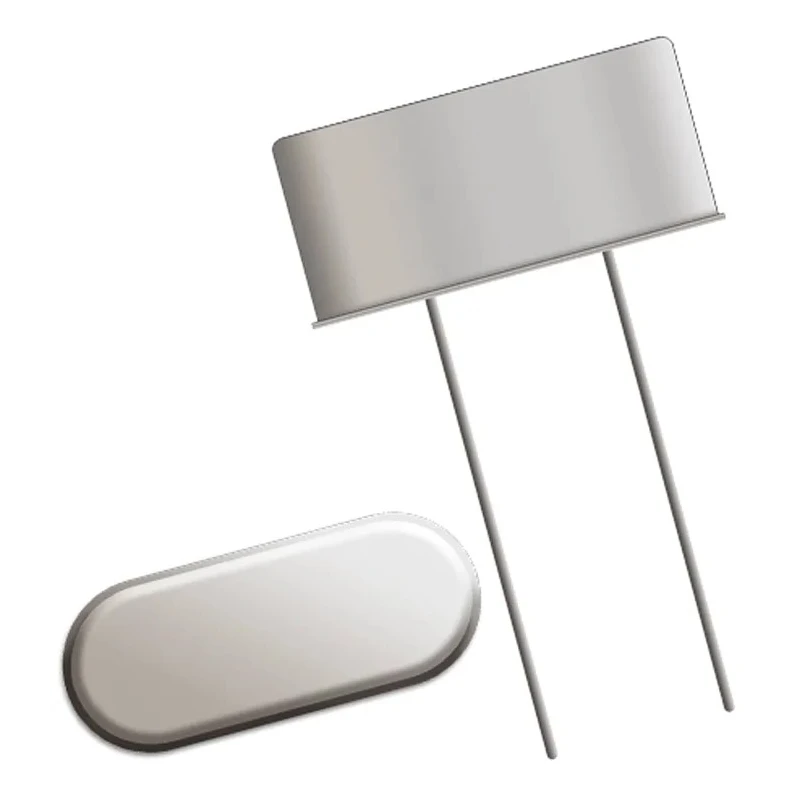

QANTEK 3.6864 MHz Crystal ±20 ppm HC-49 2-Pin Through Hole 11.05 mm Length 4.65 mm Width QCL3.68640F18B23B

QANTEK QCL3.68640F18B23B is a high-precision 3.6864 MHz crystal unit designed for reliable frequency control in electronic applications. It features a ±20 ppm frequency tolerance and ±30 ppm frequency stability, making it suitable for timing-sensitive circuits.

This crystal is in the HC-49 package type with a 2-pin through-hole mounting style, allowing for straightforward PCB assembly. The device has a load capacitance of 18 pF and a series resistance of 200 ohms, ensuring signal integrity.

The compact dimensions of 11.05 mm length, 4.65 mm width, and 3.5 mm height optimize board space usage. It is rated for operation over a wide temperature range from -40°C to 85°C, suitable for industrial and commercial electronic equipment.

Compliant with RoHS environmental standards, this crystal unit is manufactured in China as part of the QCL series. Applications include oscillators, timing circuits, communication devices, and embedded systems requiring stable frequency reference.

Standard frequency of 3.6864 MHz for precise timing. Load capacitance of 18 pF to maintain oscillation stability. HC-49 through-hole package with 2 pins for mounting flexibility. Wide operating temperature range supports diverse environments.

Low series resistance enhances signal quality. RoHS compliant for eco-friendly use. Compact size suitable for space-constrained designs.

This crystal unit is ideal for industrial electronics, telecommunications, manufacturing, and laboratory instrumentation. Browse the Electronics Components category at EnvMart for this and other precision timing components from QANTEK and trusted brands.
