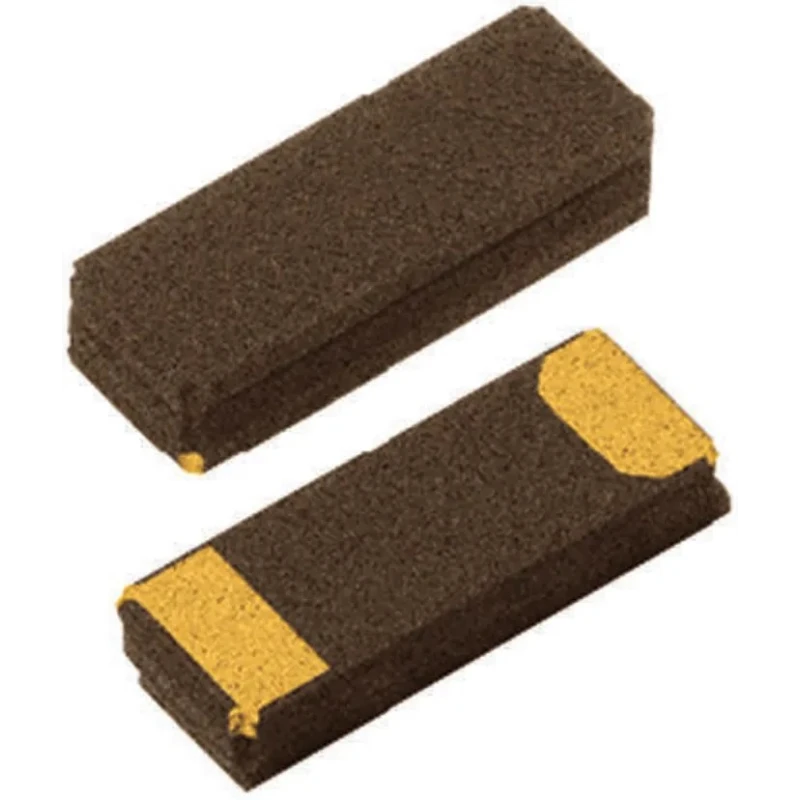

Micro Crystal 32.768 kHz Crystal ±20 ppm SMD 2-Pin 5 mm x 1.9 mm x 0.9 mm CC4V-T1A
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Micro Crystal |
| Height | 0.9mm |
| Length | 5mm |
| Model | CC4V-T1A |
| Packaging | Tape & Reel |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | CC4V-T1A |
| Maximum Operating Temperature | 85°C |
| Package Type | SMD |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 32.768kHz |
| Load Capacitance | 12.5pF |
| Series Resistance | 65kΩ |
Key Features
- Operates at a standard frequency of 32.768 kHz for accurate timekeeping.
- Features a load capacitance of 12.5 pF ensuring stable oscillation performance.

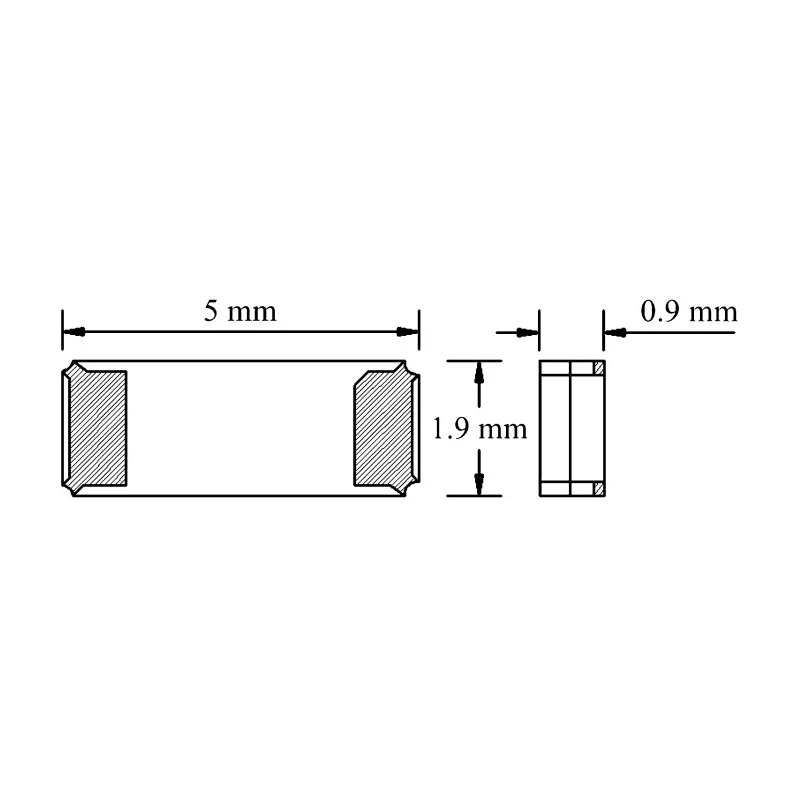

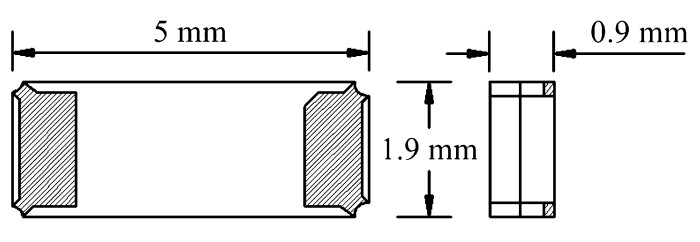

- Compact SMD package with dimensions 5 mm length, 1.9 mm width, and 0.9 mm height.
- Specified frequency tolerance of ±20 ppm supports reliable timing accuracy.
- Wide operating temperature range from -40°C to +85°C for diverse environmental applications.
- Low series resistance of 65 kΩ contributes to efficient power consumption.
- Supplied in tape and reel packaging for automated PCB assembly processes.
- Manufactured in Switzerland maintaining high-quality standards consistent with RoHS compliance.
Product Description
Micro Crystal CC4V-T1A is a high-precision 32.768 kHz crystal unit featuring a 2-pin surface mount device (SMD) package designed for electronic timekeeping applications. The crystal operates with a load capacitance of 12.5 pF and a frequency tolerance of ±20 ppm, offering exceptional accuracy for devices such as watches, clocks, and microcontrollers.
This crystal's compact dimensions of 5 mm length, 1.9 mm width, and 0.9 mm height make it suitable for space-constrained PCB layouts. Its robust operating temperature range from -40°C to 85°C accommodates reliable performance in varied industrial, commercial, and consumer electronics environments.
The crystal unit is supplied in tape and reel packaging, facilitating efficient automated placement during assembly. It exhibits a low series resistance of 65 kΩ, contributing to low power consumption critical for battery-operated and low-power devices.
Manufactured in Switzerland, this unit conforms to the RoHS directive, ensuring it meets environmental and safety standards. It does not comply with specific automotive standards but is ideal for general electronics applications requiring precise time frequency control.
Operates at 32.768 kHz standard frequency ensuring accurate timing. Load capacitance of 12.5 pF provides stable oscillation. Compact SMD package dimensions: 5 mm x 1.9 mm x 0.9 mm. Frequency tolerance ±20 ppm guarantees accuracy.
Wide operating temperature range from -40°C to 85°C. Low series resistance of 65 kΩ for efficient power use. Tape and reel packaging supports automated production. Manufactured in Switzerland adhering to RoHS compliance.
This Micro Crystal CC4V-T1A quartz crystal is suitable for industrial, commercial, and laboratory electronics where precision timing and frequency stability are essential. Browse the Electronics Components category on EnvMart for additional crystal oscillators and related electronic components.
Explore more products in our Crystal Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 32.768 kHz, which is commonly used for accurate timekeeping applications.
This model has compact dimensions of 5 mm in length, 1.9 mm in width, and 0.9 mm in height, making it suitable for space-constrained PCB layouts.
The load capacitance of this crystal is 12.5 pF, which ensures stable oscillation performance.
It has a frequency tolerance of ±20 ppm, supporting reliable timing accuracy in various applications.
The operating temperature range is from -40°C to 85°C, allowing it to perform reliably in diverse environmental conditions.
This crystal unit is supplied in tape and reel packaging, which facilitates efficient automated placement during PCB assembly processes.
The series resistance of this unit is 65 kΩ, contributing to efficient power consumption, especially in battery-operated devices.
It is designed as a surface mount device (SMD), making it suitable for modern PCB designs.
The crystal conforms to RoHS standards, ensuring it meets environmental and safety requirements.
This crystal is suitable for electronic timekeeping applications such as watches, clocks, and microcontrollers due to its precision and stability.
This model features a 2-pin configuration, which is standard for many SMD crystal applications.
It is manufactured in Switzerland, maintaining high-quality standards throughout the production process.
