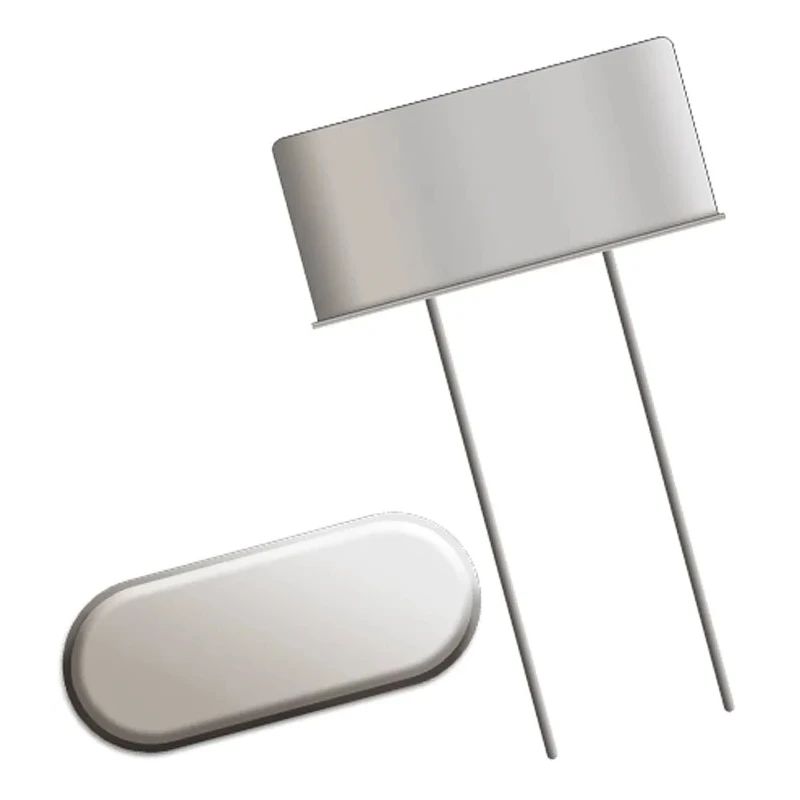

QANTEK 14.7456 MHz Crystal ±20 ppm HC-49 2-Pin Through Hole 3.5 mm Height 11.05 mm Length 4.65 mm Width QCL14.7456F18B23B

QANTEK QCL14.7456F18B23B is a high-precision crystal unit providing a stable frequency of 14.7456 MHz with a frequency tolerance of ±20 ppm. This crystal is designed for through-hole mounting in electronic circuits and features a compact HC-49 package with 2 pins, facilitating easy integration onto printed circuit boards.

With a load capacitance of 18 pF, it supports reliable and stable oscillations necessary in timing and frequency control applications. The operating temperature range from -40°C to 85°C enables robust performance across various industrial, commercial, and laboratory environments. Its physical dimensions of 11.05 mm (length), 4.65 mm (width), and 3.5 mm (height) ensure a low footprint on PCBs, contributing to compact device designs.

The series resistance of 50 Ω contributes to efficient signal generation and transmission. Additionally, the crystal conforms to RoHS standards, assuring environmentally friendly manufacturing processes without hazardous substances. The QCL series crystal units are produced in China and are ideal for use in electronic devices requiring stable frequency references such as communication equipment, instrumentation, and consumer electronics.

The crystal unit has a standard frequency of 14.7456 MHz optimized for precision frequency control. The HC-49 through-hole package with 2 pins allows for durable mounting and easy soldering on circuit boards. Load capacitance of 18 pF ensures oscillation circuit stability under varying electrical conditions.

Operating temperature capabilities range between -40°C and +85°C for extended reliability. Compact size: Length 11.05 mm, Width 4.65 mm, and Height 3.5 mm supports PCB space constraints. Series resistance of 50 Ω provides efficient oscillation performance.

Compliance with RoHS regulations ensures environmental safety. Manufactured in China, part of QANTEK’s QCL series of crystal units.

This product is suited for applications including industrial automation, communications, electronic instrumentation, and other demanding frequency-dependent solutions. QANTEK crystals offer robust timing accuracy, ideal for designers seeking long-term stability and reliability in their electronic circuits.
