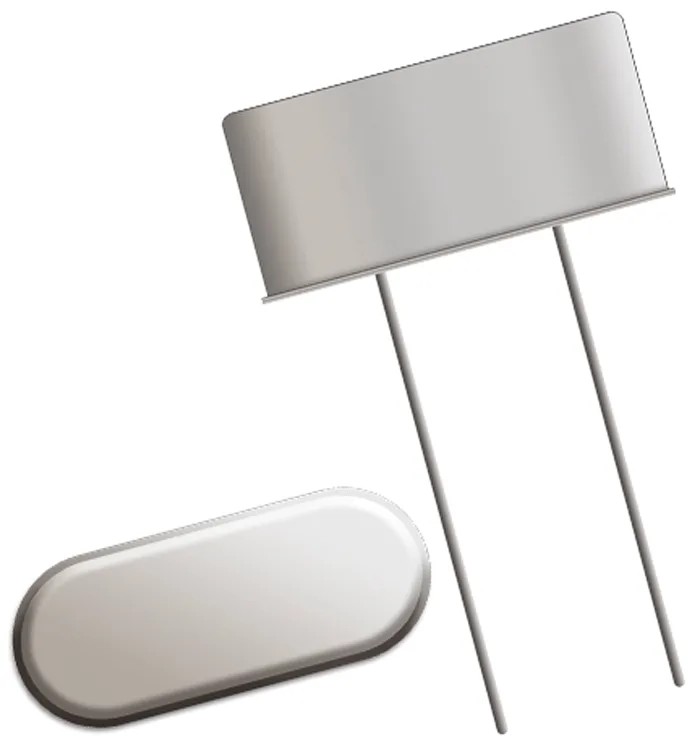

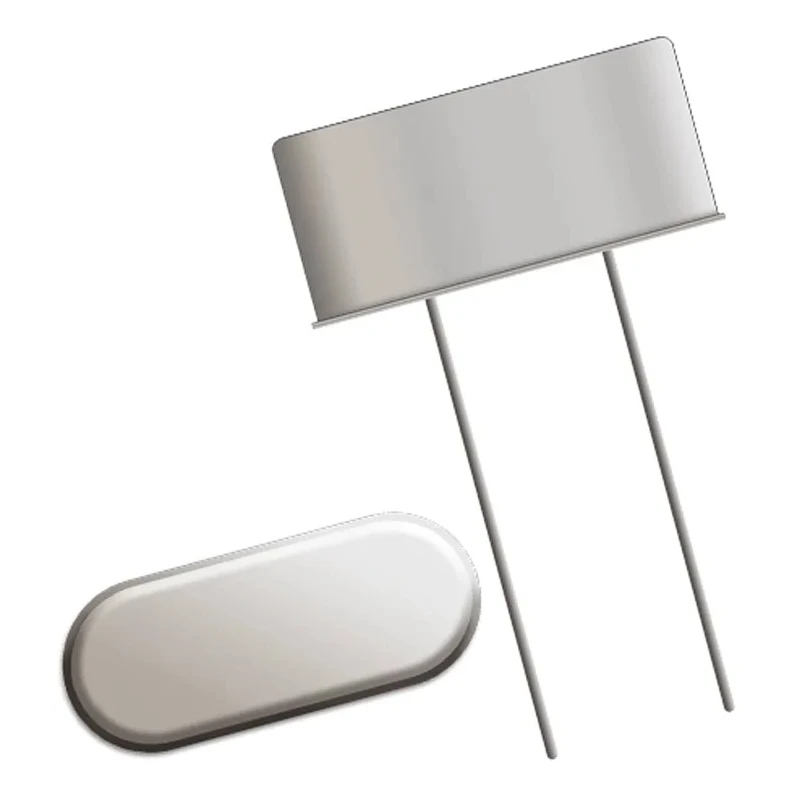

QANTEK 25 MHz Precision Crystal Oscillator ±20 ppm HC-49 2-Pin Through Hole 3.5 mm x 11.05 mm x 4.65 mm QCL25.0000F18B23B

Free Delivery in India | Lowest Global Shipping Charges

QANTEK 25 MHz Precision Crystal Oscillator ±20 ppm HC-49 2-Pin Through Hole 3.5 mm x 11.05 mm x 4.65 mm QCL25.0000F18B23B

Name: QANTEK 25 MHz Precision Crystal Oscillator ±20 ppm HC-49 2-Pin Through Hole 3.5 mm x 11.05 mm x 4.65 mm QCL25.0000F18B23B
Brand: Qantek
SKU: 419913
Price: 0.22 USD
Availability: InStock



Category Crystal Oscillator Brand Qantek Condition New

Specifications

Country of Origin	China
Brand	QANTEK
Height	3.5mm
Length	11.05mm
Model	QCL25.0000F18B23B
Packaging	Bulk
Width	4.65mm
Mount Type	Through Hole
Series	QCL
Maximum Operating Temperature	85°C
Package Type	HC-49
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	2
Standard Frequency	25MHz
Load Capacitance	18pF
Series Resistance	80Ω

Key Features

The crystal operates at a standard frequency of 25 MHz for precise timing applications.
Load capacitance of 18 pF ensures proper circuit matching and resonance.
Package dimensions are 3.5 mm height, 11.05 mm length, and 4.65 mm width with 2 pins for secure mounting.
Operating temperature range spans from -40°C to +85°C, suitable for varying environments.
HC-49 package type with through-hole mounting allows easy PCB assembly.
Designed in compliance with RoHS standards for environmental safety.
Bulk packaging facilitates cost-effective procurement for manufacturing.

Product Description

QANTEK QCL25.0000F18B23B is a 25 MHz crystal oscillator housed in a HC-49 through-hole package with precise frequency tolerance of ±20 ppm. This component provides stable oscillation at a standard frequency critical for timing circuits and frequency control in electronics manufacturing, communication devices, and instrumentation.

The crystal's load capacitance is specified at 18 pF, balancing the resonant circuit to optimize oscillation performance. The compact package dimensions measure 3.5 mm in height, 11.05 mm in length, and 4.65 mm in width, with 2 pins to ensure firm connection on printed circuit boards using through-hole mounting techniques.

Featuring frequency stability of up to ±30 ppm and a series resistance of 80 Ω, the crystal supports sustained oscillation with low signal loss. Its operational temperature range from -40°C to +85°C enables consistent performance in diverse environmental conditions encountered in industrial, automotive, and consumer electronics applications.

This Crystal Oscillator complies with RoHS standards, affirming its environmental friendliness and suitability for use in modern electronic products. The bulk packaging offers economical options for high-volume production lines.

The QCL series embodies reliability for precise frequency generation essential in applications such as microcontroller clocks, communication devices, and measurement equipment. The crystal operates at a standard frequency of 25 MHz for precise timing applications.

Load capacitance of 18 pF ensures circuit resonance and matching. Compact HC-49 through-hole package with 2 pins measuring 3.5 mm x 11.05 mm x 4.65 mm. Frequency tolerance of ±20 ppm and stability up to ±30 ppm. Series resistance of 80 Ω supports stable oscillations.

Wide operating temperature range from -40°C to 85°C suitable for industrial environments. RoHS compliant and environmentally safe construction. Bulk packaging recommended for manufacturing efficiency. Explore more electronic components and crystal units in the Electronics & Electricals category at EnvMart, ideal for industrial and commercial engineering applications.
