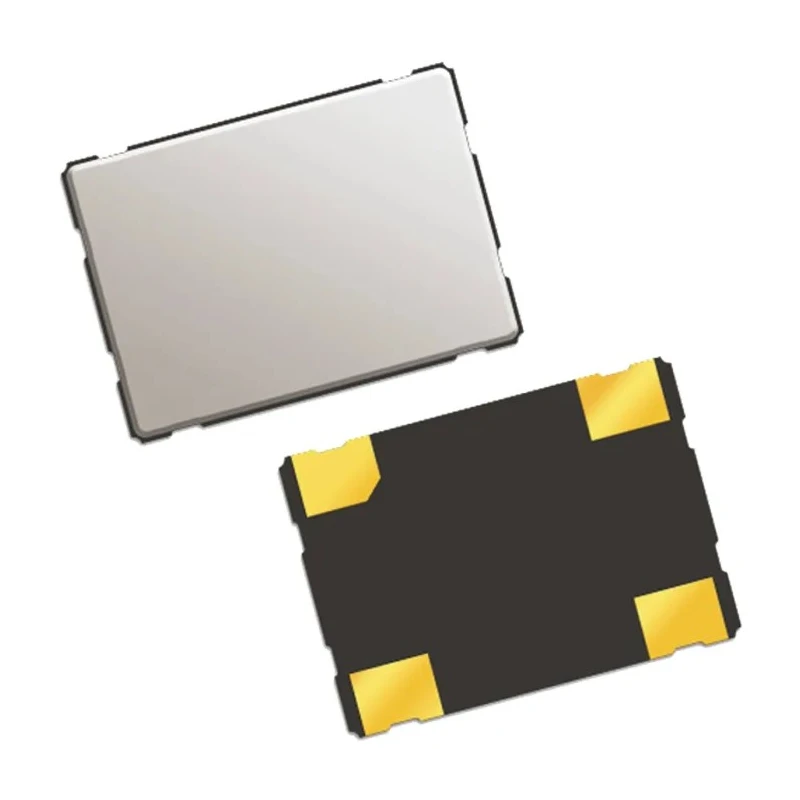

QANTEK 24MHz Clock Oscillator ±25 ppm HCMOS 4-Pin Surface Mount QX733A24.00000B15R

QANTEK QX733A24.00000B15R is a state-of-the-art 24MHz Clock Oscillator featuring ±25 ppm frequency stability, HCMOS output level, and a compact 4-pin surface mount design. It operates efficiently at a maximum supply voltage of 3.3 V, making it suitable for precision timing in electronic components and industrial equipment.

The oscillator is housed in a ceramic 7mm by 5mm by 1.4mm package from the QX7 series, ensuring a robust form factor compatible with modern PCB layouts. Its wide operating temperature range from -40°C to 85°C guarantees reliable operation in varied environmental conditions common in industrial and commercial setups.

This device has a load capacitance of 15pF, engineered for stable oscillation and accurate output frequency, essential for applications such as clock generation, signal timing, and synchronization in communication devices, consumer electronics, and instrumentation.

The 4-pin surface mount package is provided on tape and reel packaging, facilitating automated placement and enhancing production efficiency for manufacturing processes.

While this model does not carry specific automotive approvals, its precision and construction make it ideal for industrial electronics, telecommunications, instrumentation, and other technology manufacturing sectors requiring stable, precise timing components.

Operates at 24 MHz frequency with ±25 ppm stability. Compact 4-pin surface mount ceramic package (7mm x 5mm x 1.4mm). HCMOS output providing compatible signal levels. Wide operating temperature range from -40°C to 85°C. Maximum supply voltage of 3.3 V optimized for low power consumption.

Load capacitance of 15 pF for signal integrity. Packaged on tape and reel for manufacturing automation. Designed for use in electronic components, instrumentation, and industrial applications. Country of origin China ensures cost-effective manufacturing quality.
