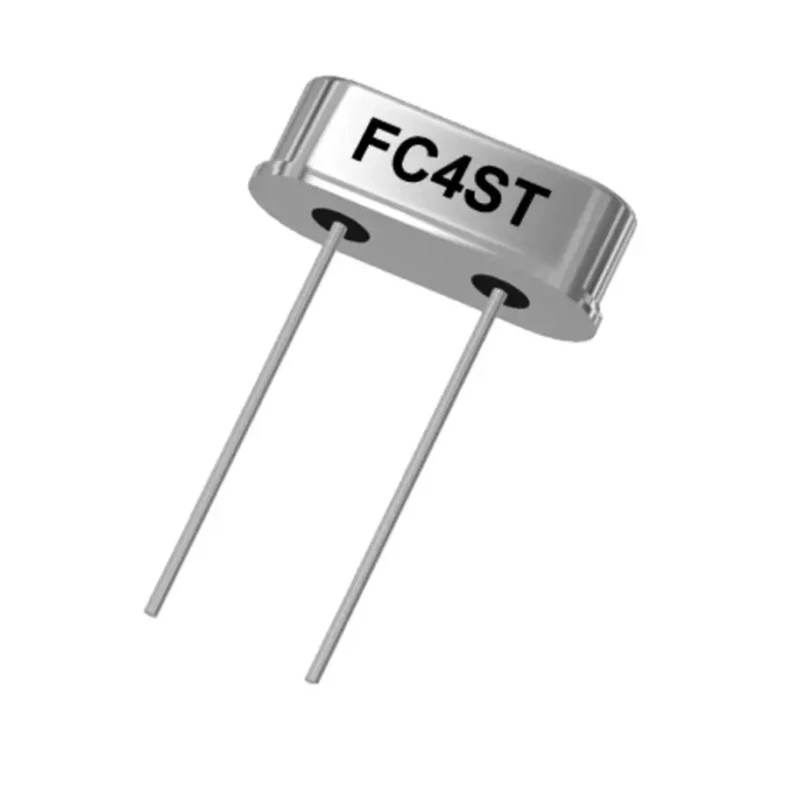

Abracon 14.31818 MHz Crystal Through Hole HC-49 Package 2-Pin 3.6mm Height 11.35mm Length 4.64mm FC4STCBMF14.31818
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 3.6mm |
| Length | 11.35mm |
| Model | FC4STCBMF14.31818 |
| Packaging | Tape & Reel |
| Width | 4.64mm |
| Mount Type | Through Hole |
| Series | FC4ST |
| Maximum Operating Temperature | 70°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 14.31818MHz |
| Load Capacitance | 20pF |
Key Features
- This crystal offers a frequency tolerance of ±30 ppm and frequency stability ±50 ppm.
- It features a load capacitance of 20 pF and a shunt capacitance of approximately 7 pF.
- The physical dimensions include 11.35 mm length, 4.64 mm width, and 3.6 mm height.
- Designed for operating temperatures between -20°C and 70°C ensuring reliable performance.
- Constructed with resistance weld seal and termination finish of SN, Ag 3.0%, and Cu 0.5%.
- Packaging is in tape and reel format for automated assembly processes.
- Complies with RoHS environmental standards.
- Suitable for various electronics applications requiring stable frequency reference.
Product Description
Abracon FC4STCBMF14.31818 is a precision 14.31818 MHz crystal unit designed for through hole mounting in an HC-49 package with 2 pins. It provides reliable frequency stabilization for electronic circuits requiring accurate timing and oscillation sources.
The crystal has a frequency tolerance of ±30 ppm and a frequency stability of ±50 ppm, making it suitable for moderate accuracy applications. It features a load capacitance of 20 pF and a shunt capacitance around 7 pF.
The physical size is compact with dimensions of 11.35 mm length, 4.64 mm width, and 3.6 mm height, fitting standard HC-49 footprints on printed circuit boards.
Operating temperature ranges from -20°C to 70°C ensuring stability under varying environmental conditions. The crystal is sealed with resistance weld and has termination finishes composed of tin, silver 3.0%, and copper 0.5% to enhance solderability and conductivity.
Packaging in tape and reel format facilitates automated pick-and-place assembly processes used in manufacturing. Frequency tolerance ±30 ppm. Frequency stability ±50 ppm. Load capacitance 20 pF. Operating temperature -20°C to 70°C.
Resistance weld seal construction. Termination finish with Sn, Ag 3.0%, Cu 0.5%. Tape and reel packaging. RoHS compliant. This crystal unit is ideal for use in consumer electronics, telecommunications, and industrial devices requiring a stable and reliable frequency reference.
Explore the wide range of electronic components and Crystal Units available on EnvMart to suit your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 14.31818 MHz.
The physical dimensions are 11.35 mm in length, 4.64 mm in width, and 3.6 mm in height.
The load capacitance of this crystal is 20 pF.
This model operates within a temperature range of -20°C to 70°C.
The frequency tolerance is ±30 ppm.
The crystal is packaged in tape and reel format for automated assembly processes.
This crystal unit has 2 pins.
The shunt capacitance is approximately 7 pF.
The termination finishes include tin, silver 3.0%, and copper 0.5%.
Yes, this crystal complies with RoHS environmental standards.
This crystal is designed for through hole mounting.
This crystal belongs to the FC4ST series.
