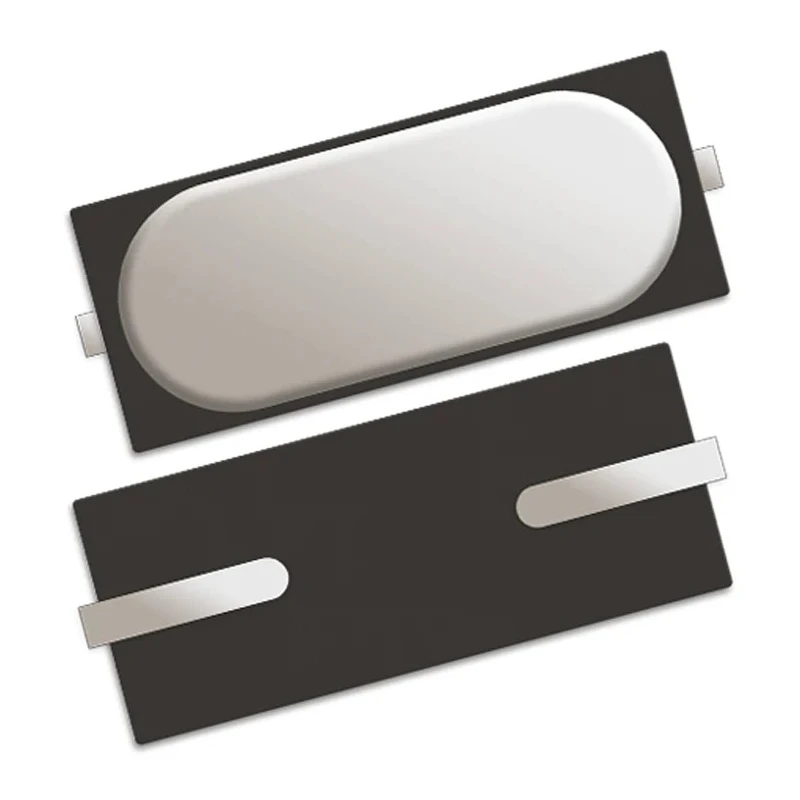

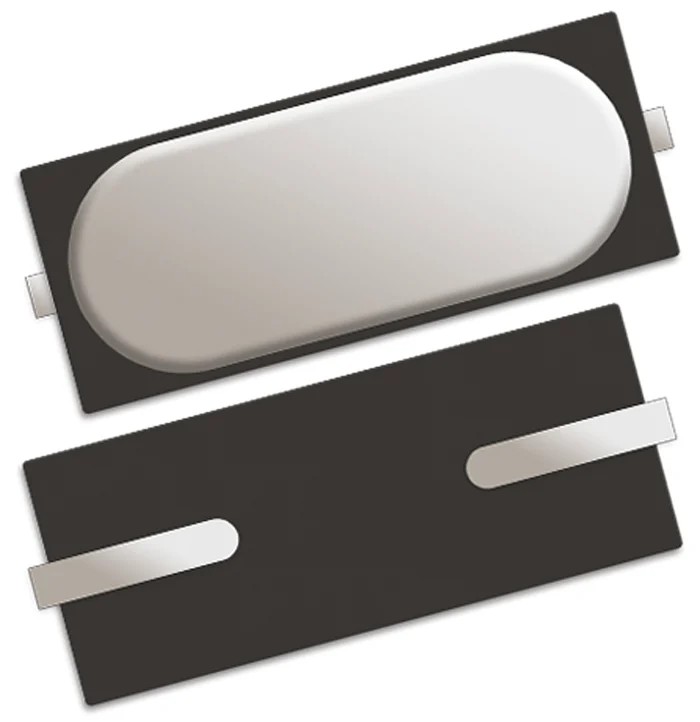

QANTEK 24 MHz Crystal ±20 ppm HC-49 2-Pin 4.4 mm Height 11.4 mm Length 4.8 mm Width QCS24.0000F18B23R

QANTEK QCS24.0000F18B23R 24 MHz Crystal HC-49 2-Pin is a precision crystal unit designed to provide stable frequency reference in various electronic circuits.

This crystal operates at a standard frequency of 24 MHz with a frequency tolerance of ±20 ppm and frequency stability of ±30 ppm, making it ideal for use in communication devices, oscillators, and timing circuits.

The crystal features a compact HC-49 package with dimensions of 11.4 mm length, 4.8 mm width, and 4.4 mm height, facilitating easy surface mount installation with its 2-pin configuration.

It has a load capacitance of 18 pF and a series resistance of 40 ohms ensuring reliable oscillation and signal quality under various conditions.

Designed to perform within a temperature range of -40°C to 85°C, this crystal complies with RoHS environmental standards and is packaged in Tape & Reel format to support automated PCB assembly lines.

This component is manufactured in China and is suited for use in industrial, telecommunications, laboratory instrumentation, and electronic manufacturing applications that require precise frequency control but is not rated for automotive standard use.

Operates at 24 MHz frequency with ±20 ppm tolerance. HC-49 surface mount package with 2 pins. Load capacitance of 18 pF for stable oscillations. Compact dimensions: 11.4 mm length, 4.8 mm width, 4.4 mm height. Operating temperature range from -40°C to 85°C.

Series resistance of 40 Ω for consistent performance. RoHS compliant for environmental safety. Tape & Reel packaging for efficient automated assembly. Manufactured in China ensuring quality standards. Suitable for industrial and electronic manufacturing uses.
