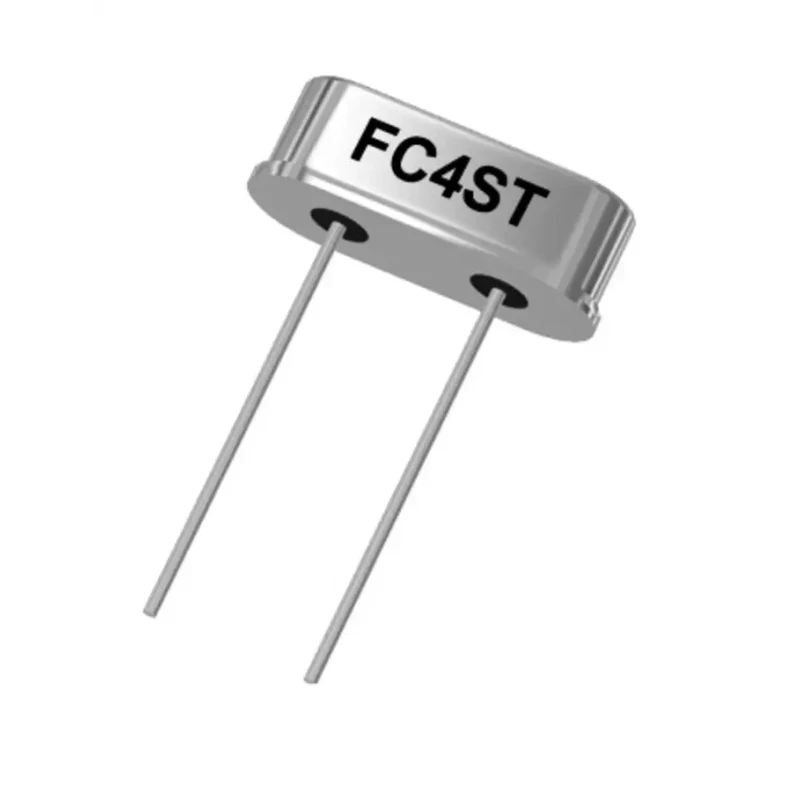

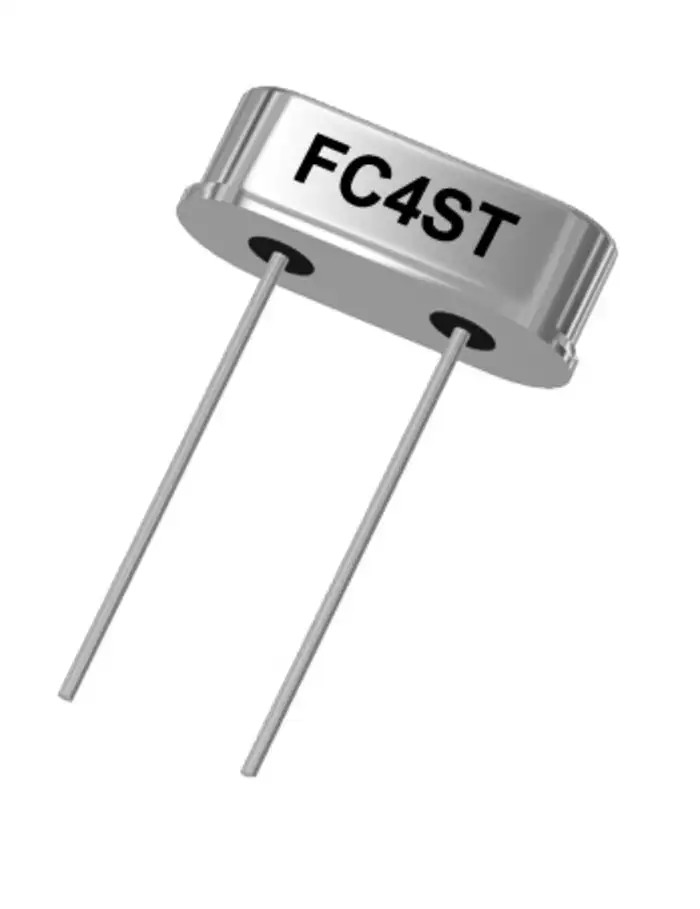

Abracon 10 MHz Through Hole Crystal HC-49 2-Pin 3.6 mm Height 11.35 mm Length 4.64 mm Width ±30 ppm Frequency FC4STCBMF10.0

Abracon FC4STCBMF10.0 is a high-quality 10 MHz crystal oscillator designed for through hole mounting applications. Packaged in the HC-49 form factor with a 2-pin configuration, this crystal ensures highly accurate frequency generation with a frequency tolerance of ±30 ppm, making it suitable for precision electronic systems.

The component features a load capacitance of 20 pF and a shunt capacitance of approximately 7 pF, providing excellent resonance characteristics. Its compact physical dimensions are 11.35 mm in length, 4.64 mm in width, and 3.6 mm in height, facilitating easy integration into PCB layouts.

Designed to operate reliably within a temperature range of -20°C to 70°C, the FC4STCBMF10.0 crystal meets RoHS compliance for environmental standards, making it ideal for a variety of electronics, power, and connector applications.

This Abracon crystal uses a resistance weld seal and termination finishes of tin, silver 3.0%, and copper 0.5%, ensuring durability and stable performance in diverse operating conditions. Its 2-pin through hole mounting type allows for secure attachment and seamless assembly in manufacturing processes.

Standard frequency of 10 MHz with ±30 ppm tolerance. Load capacitance is 20 pF for circuit compatibility. Physical dimensions: 11.35 mm length, 4.64 mm width, 3.6 mm height. Operating temperature from -20°C to 70°C for versatile applications.

RoHS compliant material and manufacturing process. Resistance weld seal for enhanced longevity. Termination finish of Sn, Ag 3.0%, Cu 0.5%. 2-pin through hole mount with HC-49 package.

Commonly used in electronic circuits requiring stable clock generation, this Abracon crystal is suitable for industrial, laboratory, and manufacturing environments where precision timing components are essential. Explore related Crystal Units and oscillators in the EnvMart electronics catalog for complementary components.
