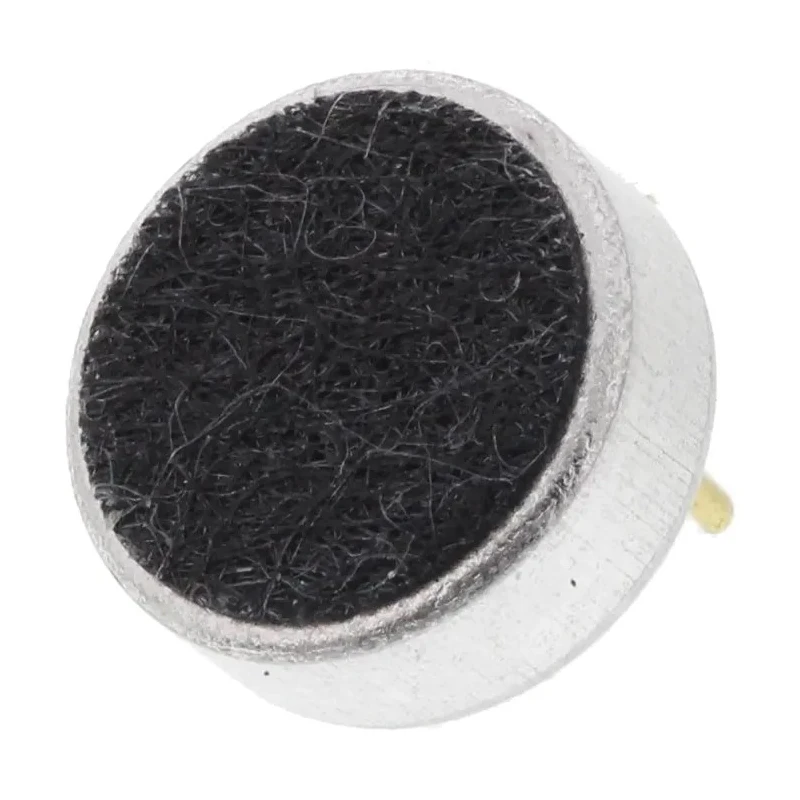

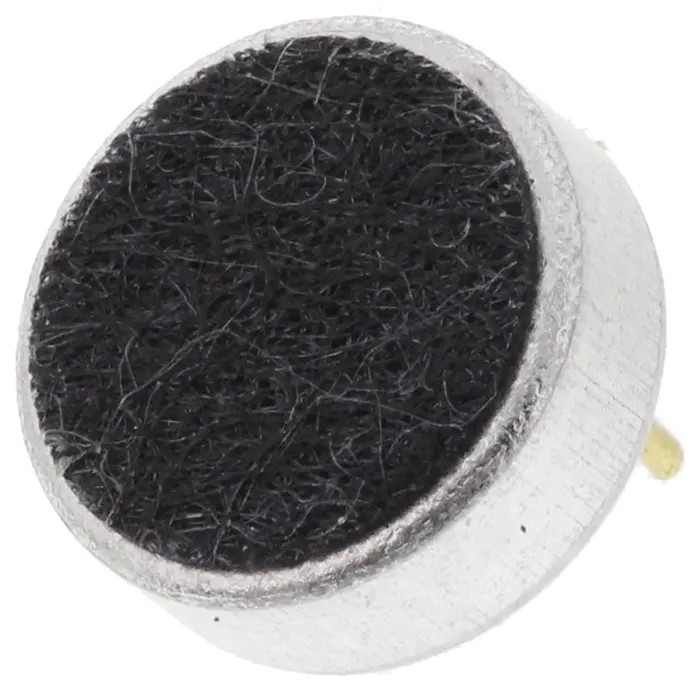

RS PRO Omni-Directional Through Hole 6 mm Microphone Condenser -40dB 7717014P

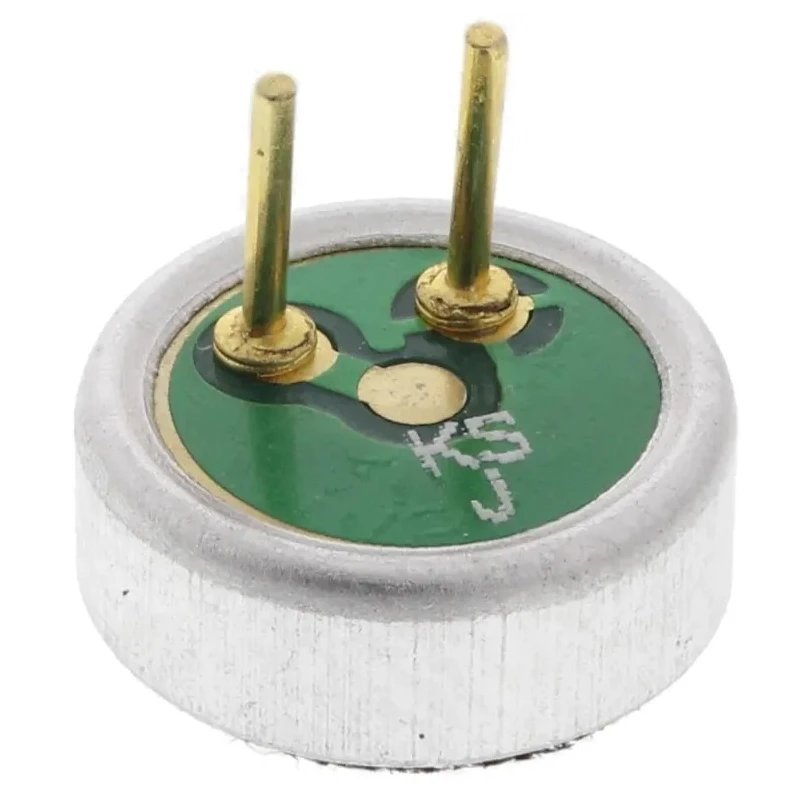

RS PRO 7717014P is an omni-directional condenser microphone with a 6 mm diameter designed for precise and reliable sound detection in electronic and audio equipment. This microphone features a through hole mount type suitable for PCB insertion, enhancing production efficiency and easy assembly in circuits.

The device operates with a standard voltage of 2 V DC and consumes a supply current of 500 μA, making it energy-efficient for long-term use.

With a sensitivity of -40 dB and a signal to noise ratio of 58 dB, it delivers clear and accurate audio input across a frequency range of 20 Hz to 20 kHz, suitable for diverse industrial, laboratory, and electronic applications.

The microphone maintains performance within an operating temperature range from -20°C up to 70°C, ensuring durability in varying environmental conditions. Its output impedance is 2.2 kΩ with a solder termination style, providing stable electrical connectivity.

Omni-directional condenser microphone with through hole mount type. Compact 6 mm diameter and 2.2 mm height design. High sensitivity of -40 dB and signal to noise ratio of 58 dB. Wide frequency response from 20 Hz to 20 kHz.

Standard 2 V DC operating voltage and 500 μA supply current. Operating temperature range: -20°C to 70°C. Output impedance: 2.2 kΩ with solder termination.

This Condenser Microphone is ideal for use in electronic components, audio devices, sound detection systems, and laboratory instruments where precise and reliable microphone inserts are required.
