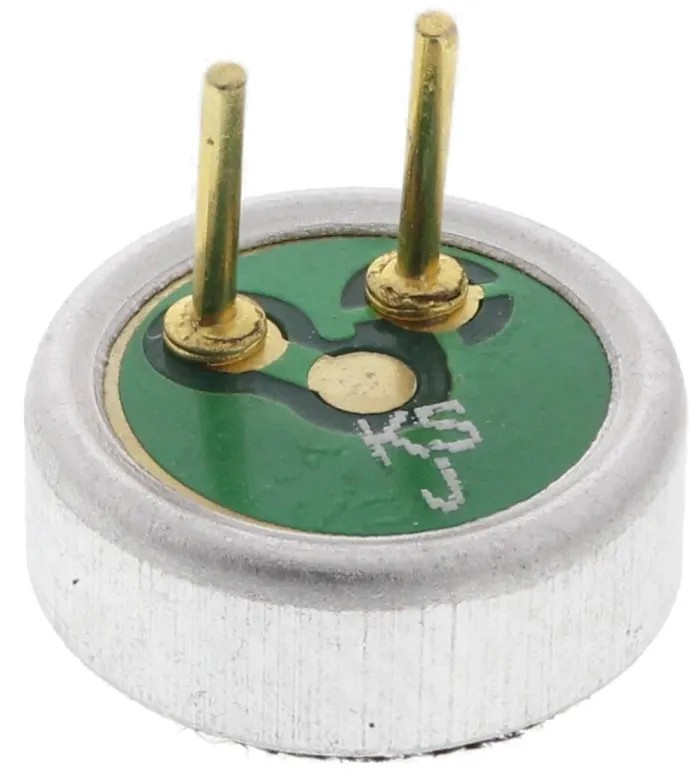

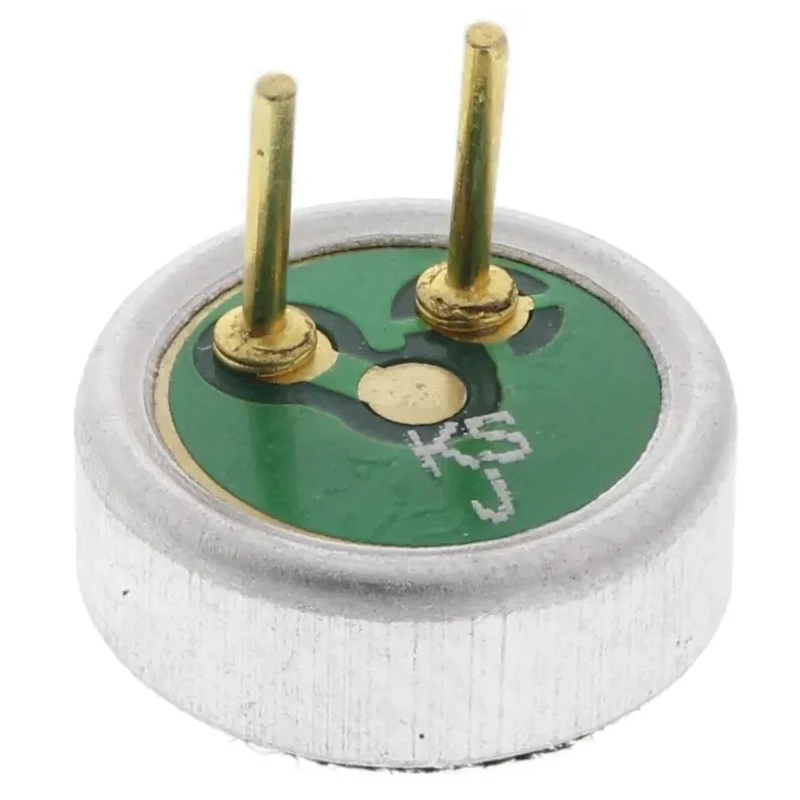

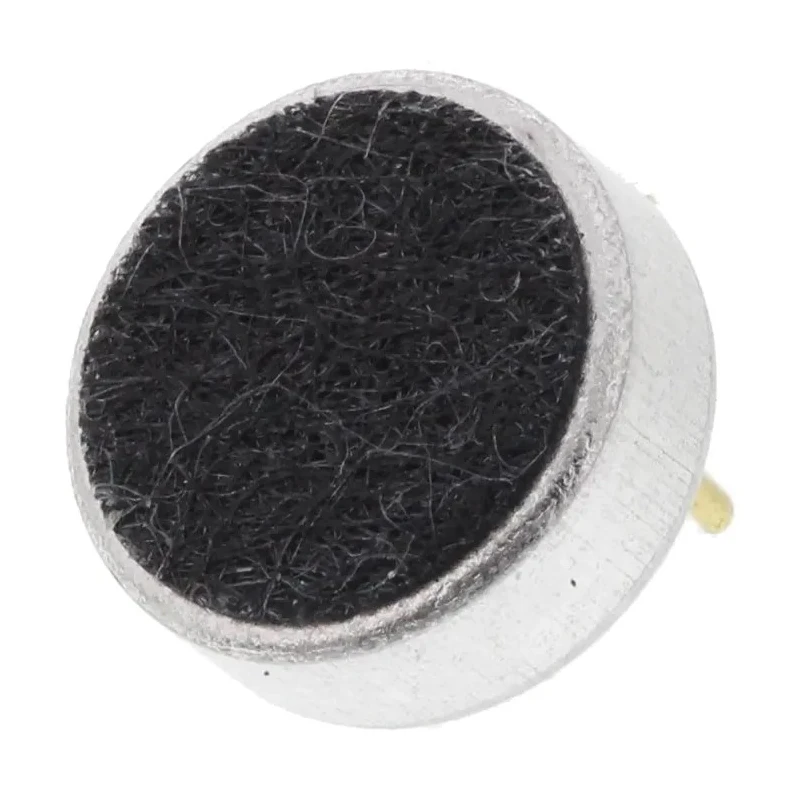

RS PRO Omni-Directional Through Hole 6 mm Microphone Condenser -40dB 771-7014

RS PRO 771-7014 is an omni-directional Condenser Microphone designed with a 6 mm diameter through-hole mount suitable for PCB applications. This electret microphone insert offers sensitive and accurate sound capture with a sensitivity rating of -40dB, making it ideal for use in audio recording, sound measurement, and communication devices.

Operating at a standard voltage of 2V DC and drawing a supply current of 500μA, this microphone supports energy-efficient operation for extended usage in electronic circuits. It features a 2.2 kiloohm output impedance that ensures compatibility with most signal processing systems.

The microphone provides a broad frequency response from 20Hz to 20kHz, covering the entire audible frequency range, with a signal-to-noise ratio of 58dB to minimize undesired noise interference. Its robust design tolerates operating temperatures between -20°C and 70°C, making it suitable for industrial, laboratory, and commercial environments.

With a solder termination style and compact dimensions (6 mm diameter and 2.2 mm height), this microphone condenser can be effortlessly mounted on standard PCBs using through-hole technology. Although it lacks specific certifications, it complies with basic manufacturing standards and is a dependable component for audio electronics assembly.

The microphone features a sensitivity of -40dB ensuring clear audio detection. It operates on a standard 2V DC supply voltage for low power consumption. Through-hole mount type allows easy PCB integration and secure installation.

Output impedance is rated at 2.2 kiloohms, compatible with diverse electronic circuits. Signal-to-noise ratio of 58dB provides high-fidelity sound capture with minimal background noise. Suitable operating temperature ranges from -20°C to 70°C for various environments.

Frequency response covers 20Hz to 20kHz, encompassing the full audible spectrum. Compact diameter of 6mm and height of 2.2mm suit space-constrained devices. Termination style is solder for reliable electrical connection.

Supply current is 500 microamperes, enabling efficient performance in low-power applications.

This product is suitable for use in industrial electronics, laboratory instruments, audio equipment manufacturing, communication devices, and other electronic applications requiring high-quality sound capture. Environmentally, it is RoHS compliant as per available documentation, ensuring safe usage and disposal.
